Robot Arm meArm - Left Arm Assembly

www.spiercetech.com
4
meArm Assembly Manual v0.4
PARTS LIST
PART NUMBERQTYITEM
M3 Nut2
1
Servo Retainer1
2
9 Gram Servo13
M3 x 8mm Screw2
4
Left Arm Servo Plate
15
Parallel Linkage
16
Long Servo Arm17
M3 x 6mm Screw
1
8
Servo Single Arm
19
M3 x 12mm Screw210
Servo Screw
111
Servo Mount Screw112
4
4
2
3
5

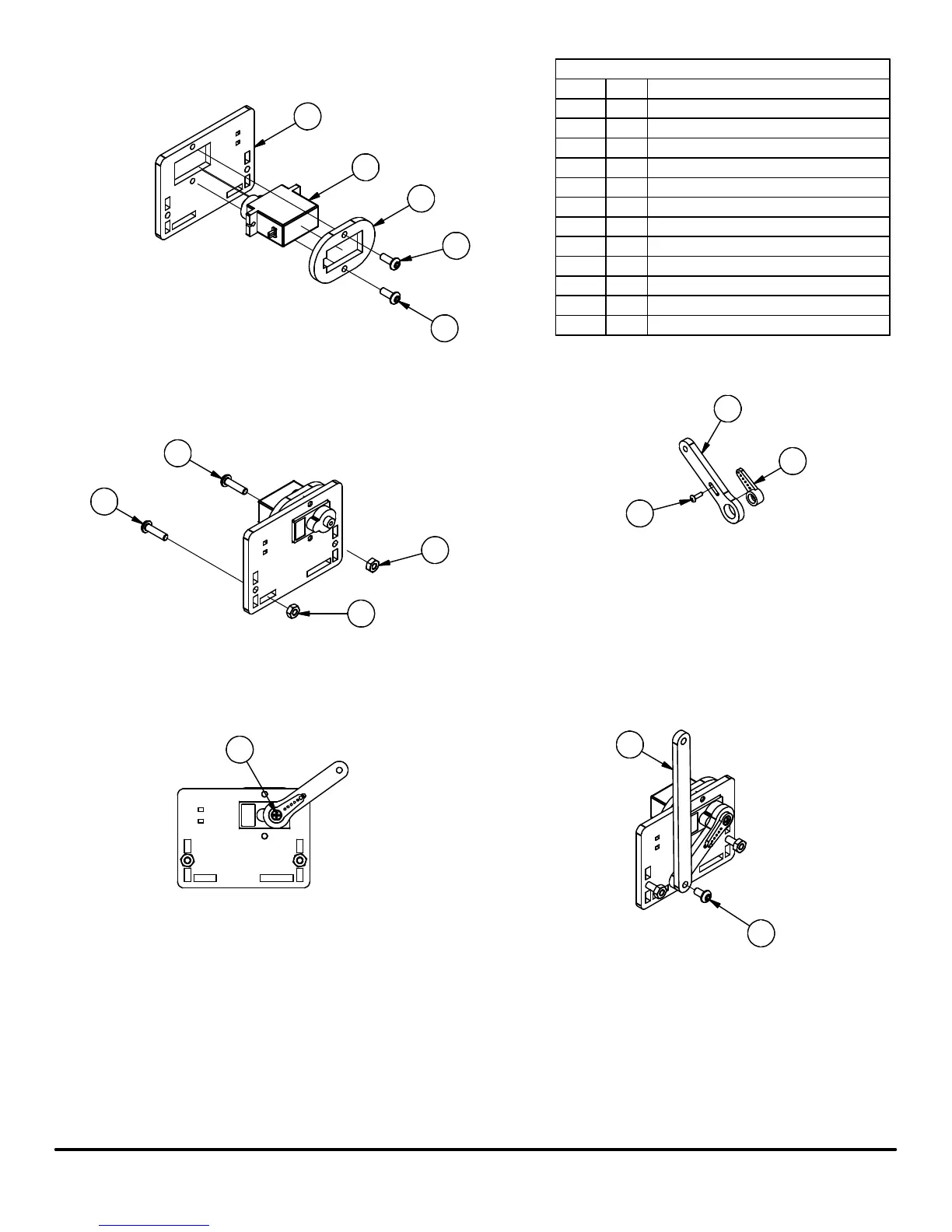

Step 9: Slide Servo Retainer over the bottom end of the Servo
Step 10: Slide Servo into the Arm Servo Plate, Left
Step 11: Insert (2) M3 x 8mm Screws into the Servo Retainer and then
screw them into the Arm Servo Plate, Left.
Step 12: Insert (2) M3 x 12mm Screws into back side of
Left Arm Servo Plate
Step 13: Thread (1) M3 Nut onto each M3 x 12mm Screw
until nut is flush with the end of the screw
9
12
7
Step 14: Attach the Servo Arm to the Long Servo Arm
Extension using (1) of the (2) longer
screws supplied with the servo
Step 15: Press the Servo Arm assembly onto the Servo
and then gently rotate the Servo Arm clockwise
by hand until it stops. After it has stopped,
remove the Servo Arm assembly from the Servo
and position it as shown in the picture above.
Step 16: Insert Servo Screw that is supplied with the Servo
8
6
Step 17: Insert (1) M3 x 6mm Screw into Parallel Linkage
and thread it into the Servo Arm Extension
1
1
10
10
11
