Robot Arm meArm - Arm Component Integration

www.spiercetech.com
6
meArm Assembly Manual v0.4
PARTS LIST
PART NUMBER
QTY
ITEM
Left Arm Mount Tab
11
M3 x 6mm Screw
1
2
Left Arm Base Joint
13
Arm Bottom Plate
14
Servo Double Arm
15
Servo Mount Screw26
3
1
2
5
4
6
6

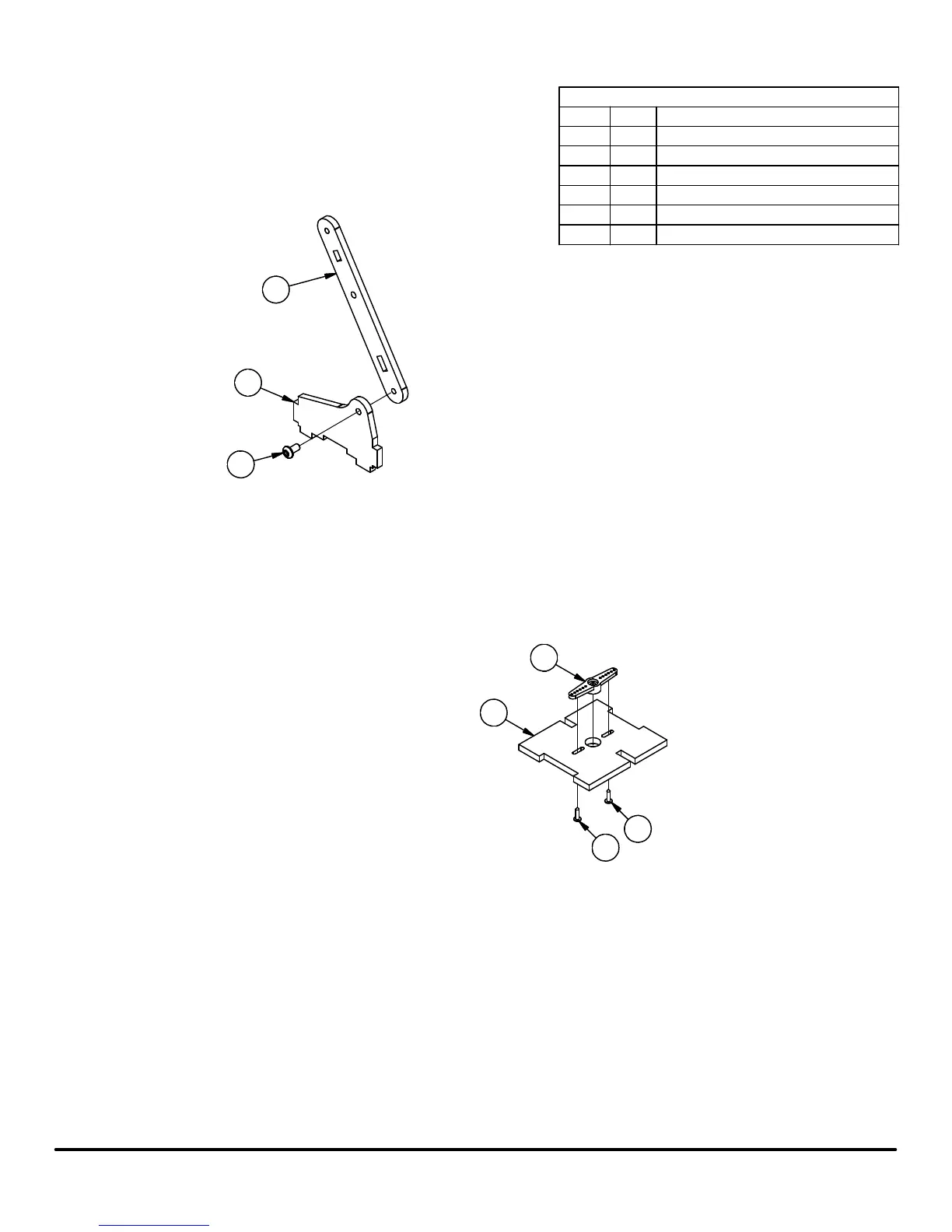

Step 27: Insert (1) M3 x 6mm screw through the Left Arm
Mount Tab and thread it into the Left Arm Base Joint
Step 28: Attach Servo Arm to the Arm Bottom Plate using (2)
Servo Mount Screws supplied with the Servo.
