meArm Assembly Manual v0.4
PARTS LIST
PART NUMBERQTYITEM
M3 Nut21
M3 x 12mm Screw22
Arm Base Crossmember23
Main Arm Cross Web
1
4
3
3
2
1
2
4
1

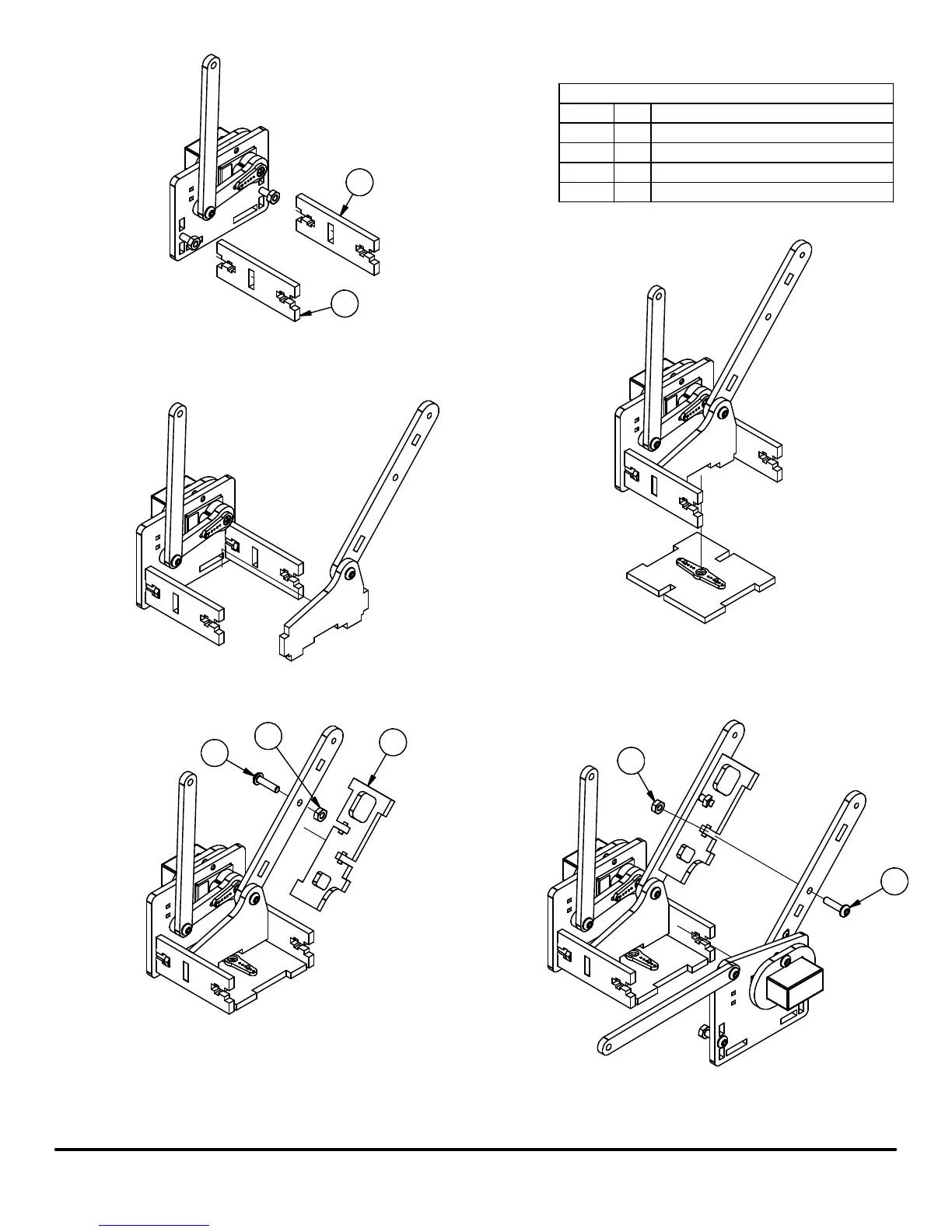

Step 29: Insert (2) Arm Base Crossmembers into the Left Arm
Servo Plate. Do not tighten screws yet.
Step 30: Insert Left Arm Mount Tab assembly into the slots of
the Arm Base Crossmembers
Step 32: Join the Main Arm Cross Web to the Left Arm Base Joint
Step 33: Insert (1) M3 x 12mm Screw into the Left Arm Base Joint
then tighten nut, securing the Left Arm Base Joint to the
Main Arm Cross Web
Step 31: Insert the Arm Bottom Plate into the tabs and
slots of the Left Arm Servo Plate and the Arm
Base Crossmembers
Step 34: Join the Right Arm Servo Plate assembly to the rest
of the assembly from the previous steps using (1) M3
Nut and (1) M3 x12mm Screw.
