Robot Arm meArm - Arm to Base and Wrist Attachment

www.spiercetech.com
8
meArm Assembly Manual v0.4
PARTS LIST
PART NUMBERQTYITEM
M3 x 6mm Screw21
Servo Screw
1
2
Left Wrist Joint
13
2
1
1
3

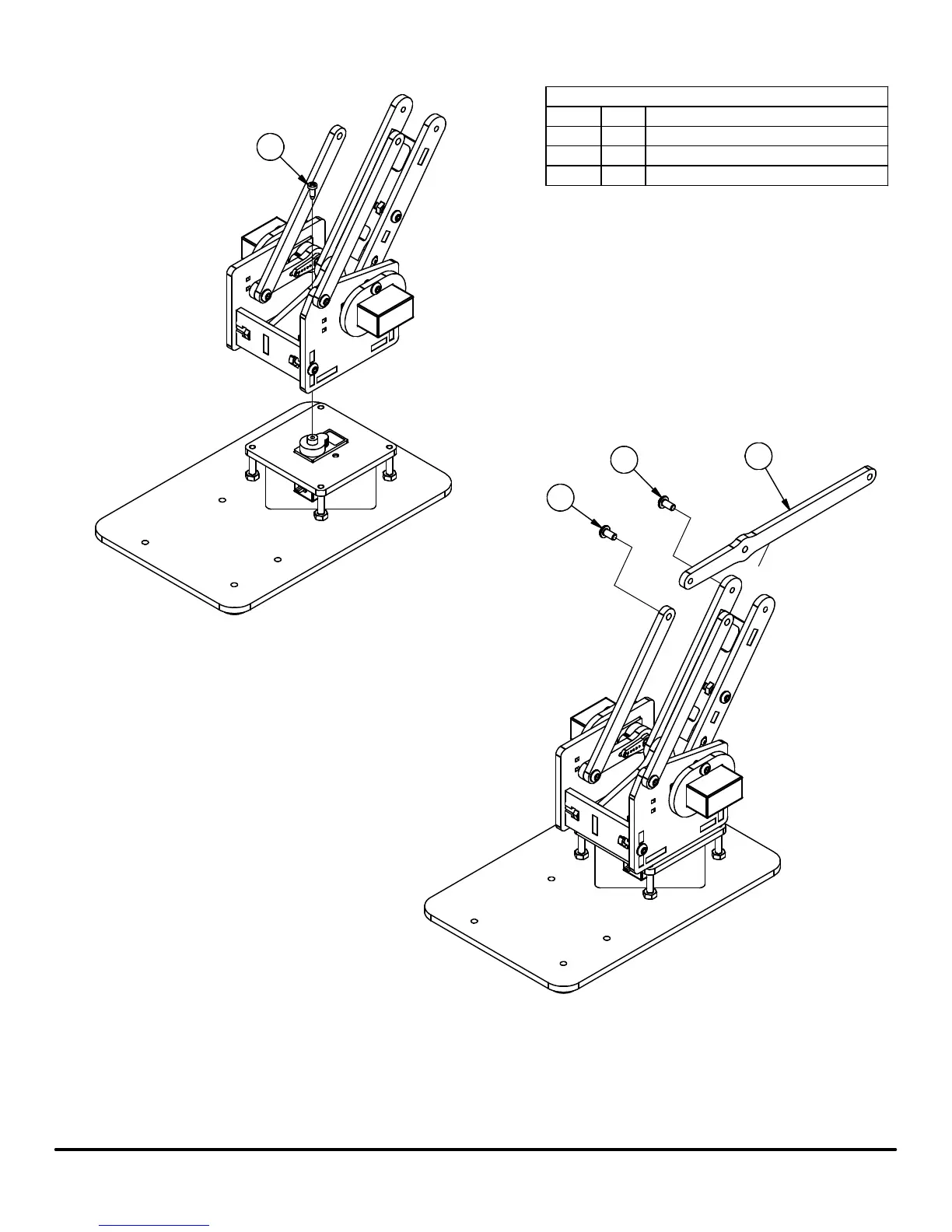

Step 35: Attach the Arm Assembly to the Base assembly and then
secure them together using the included Servo Screw.
Step 36: Attach the Left Wrist Joint to the Parallel Linkage and the Left Arm
Base Joint using (2) M3 x 6mm Screws
