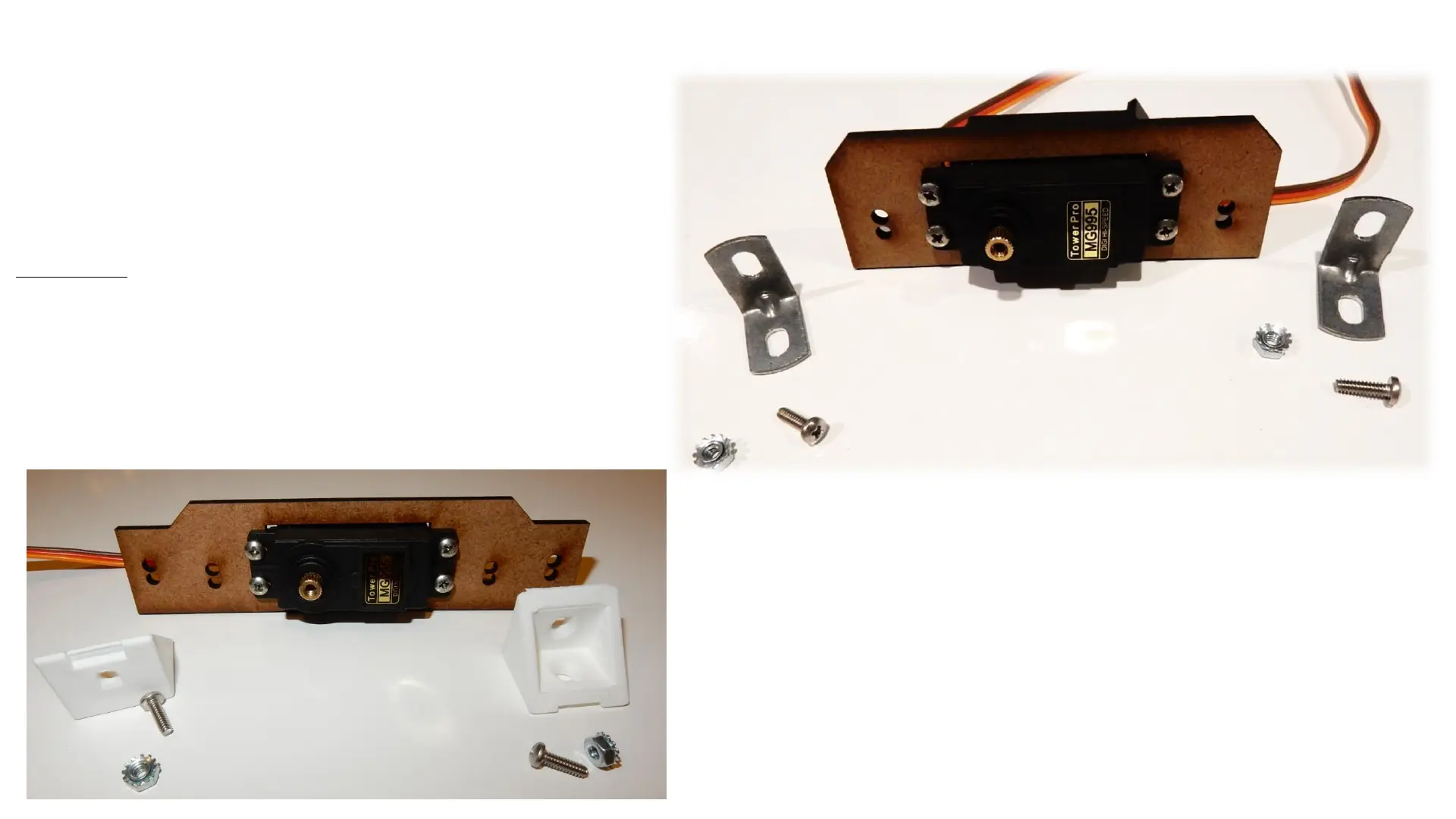

Parts:
(4) metal locking nuts
(4) 3/8 screws
(4) metal or plastic brackets
(1) star screwdriver
14
Step 2: Assembling the metal or plastic servo holder L brackets
