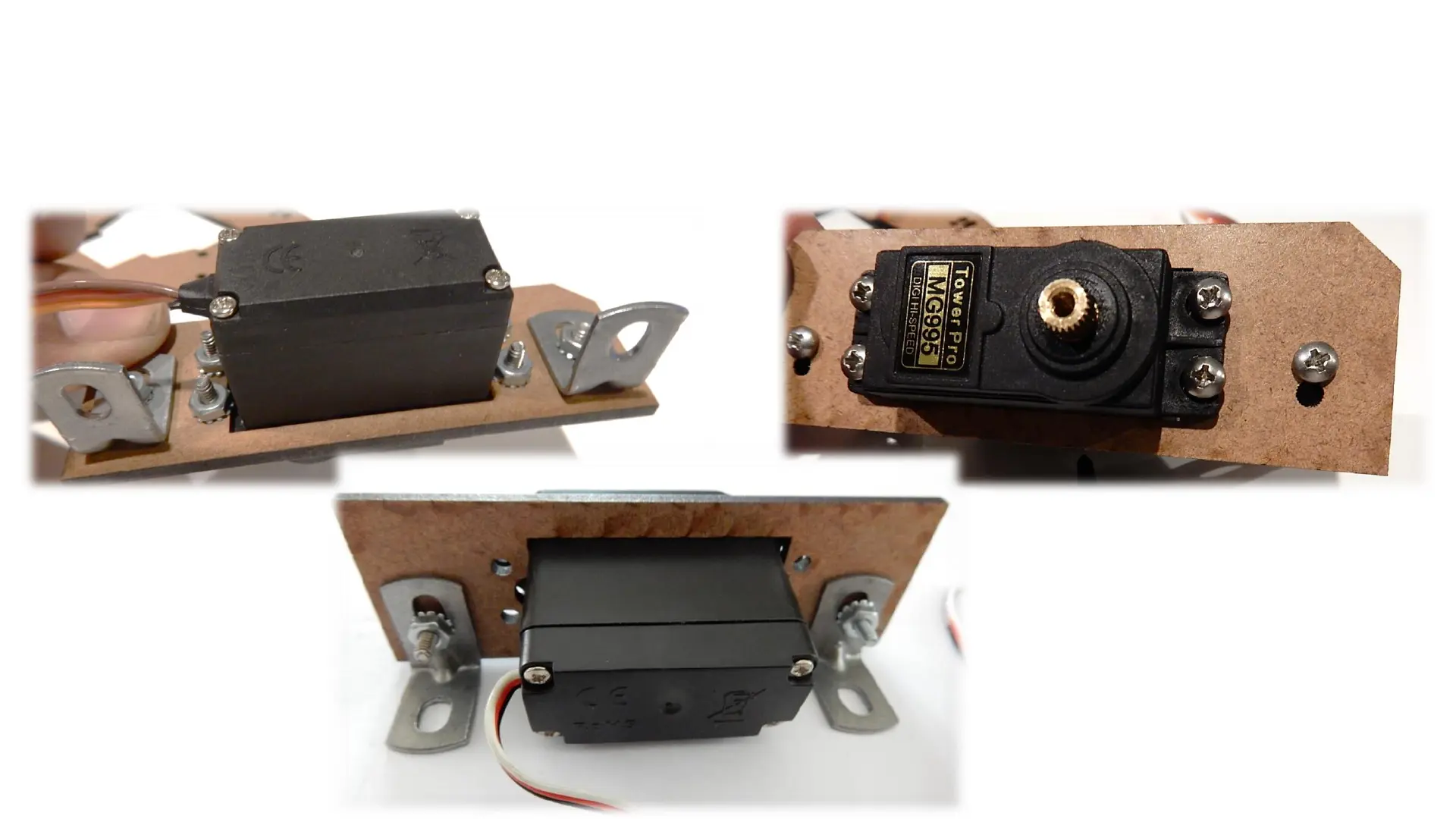

Paying attention to the direction the screw goes in, assemble the metal L
brackets as shown below on both servo holders. To align the brackets you can
hold the assembly against a flat surface then tighten the screws. Note: if
you do not raise the L brackets your wheels will be too high and the robot
will not move so see photo below for how the metal brackets go.
15
