Robotics V3 - Attaching Servo Motors with Spacers

23
Metal spacers assembled lower chassis

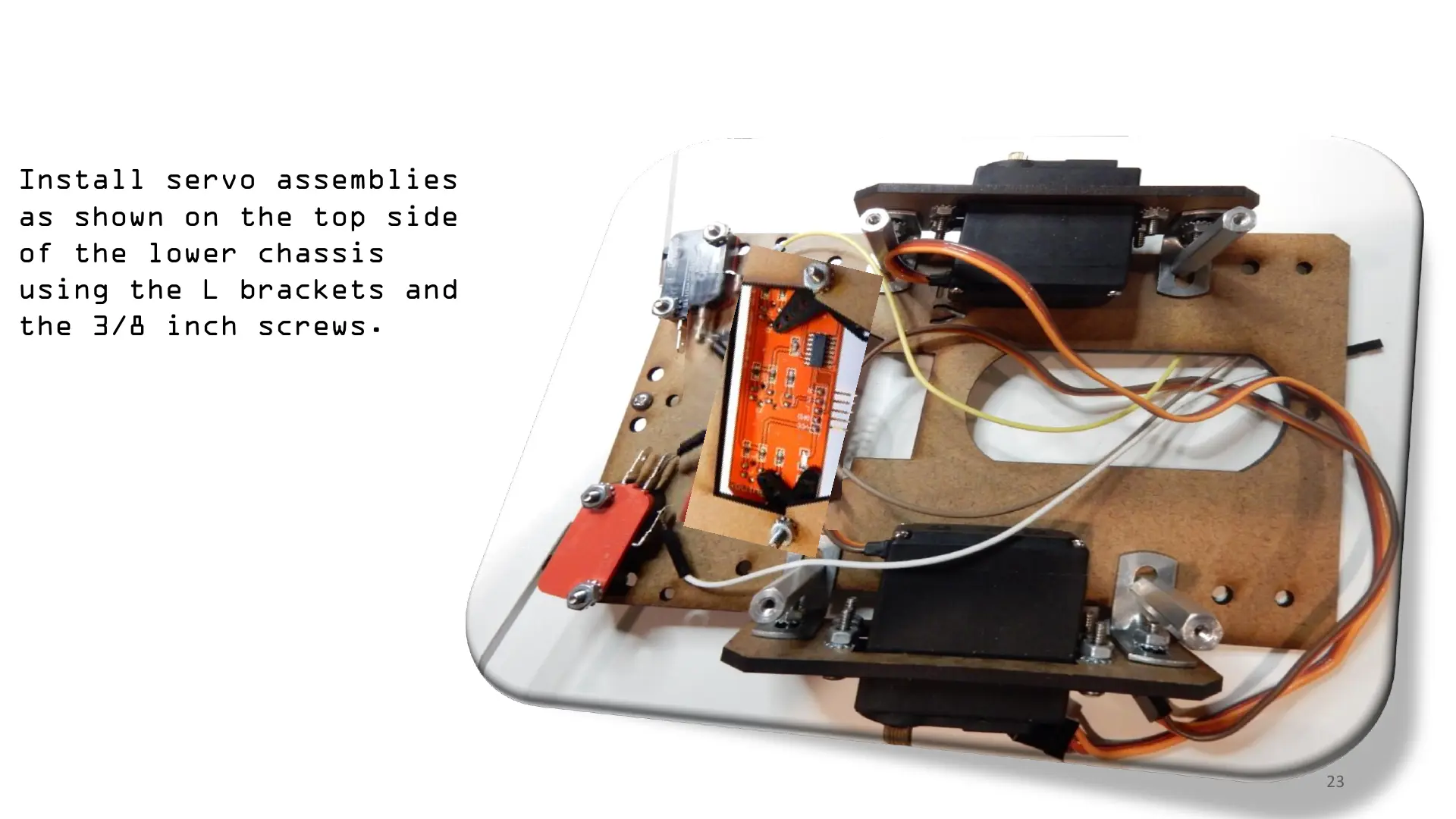

Install servo assemblies
as shown on the top side
of the lower chassis
using the L brackets and
the 3/8 inch screws.
Attention! don’t make it
too tight yet as you
need to assemble the
upper chassis on top and
might require some
alignment adjustments.
Make sure servo shaft
points to the front of
chassis
Use the 3/8" screws for this
