Robotics V3 - Step 5: Servo Motor Mounting on Lower Chassis

22

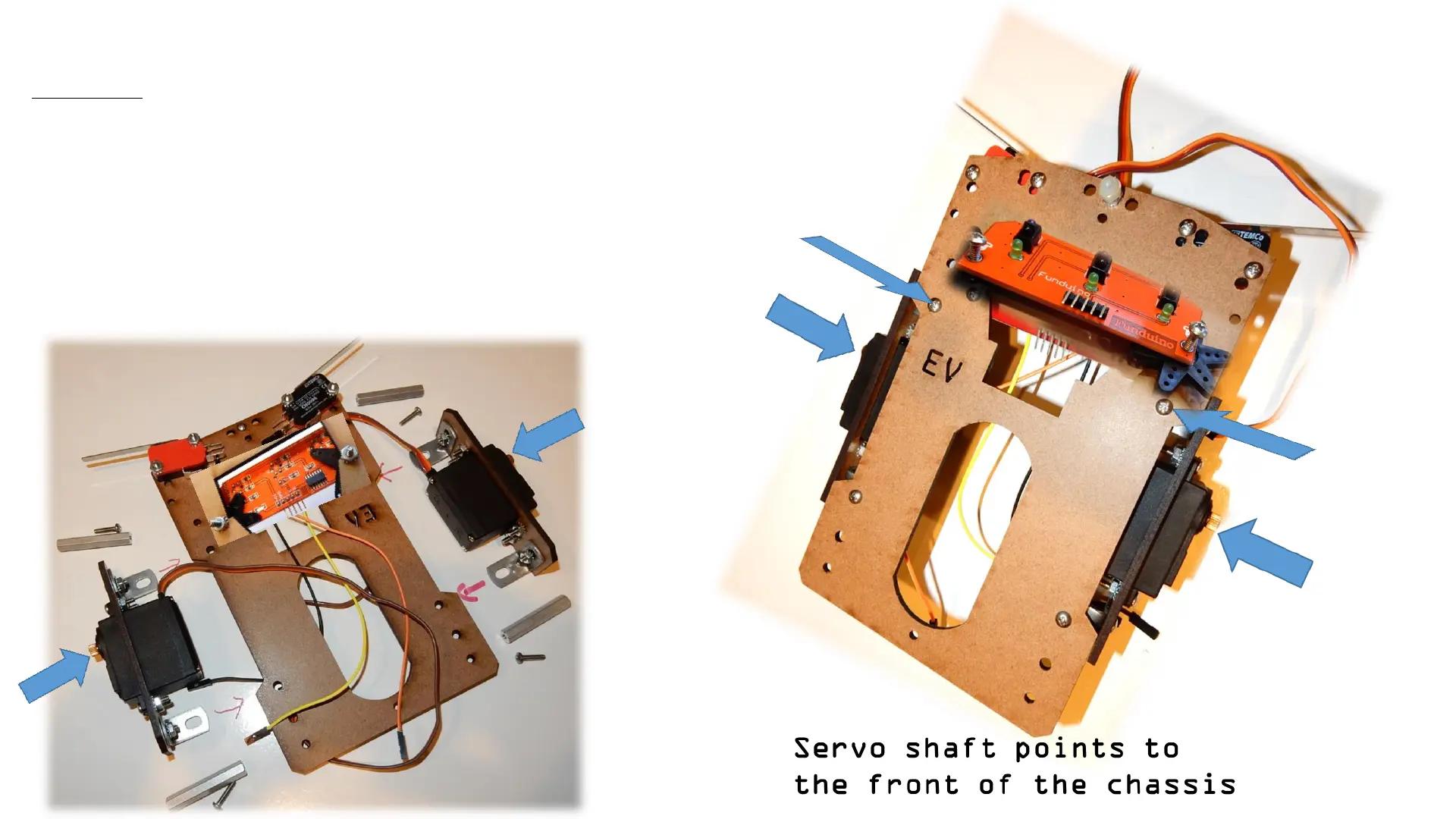

Step 5: Assembling the servo motors on lower chassis
Parts:
- (2) servo assemblies
- assembled lower chassis
- (4) 3/8 inch pan head screws
- Star screwdriver
Note: Go to next page to see how
to mount metal spacers
Attention!
Servo Motor Shaft
Servo Motor Shaft
Use 3/8”
panhead
screws here
Use 3/8”
panhead
screws
here
3/8” panhead
screws
