21

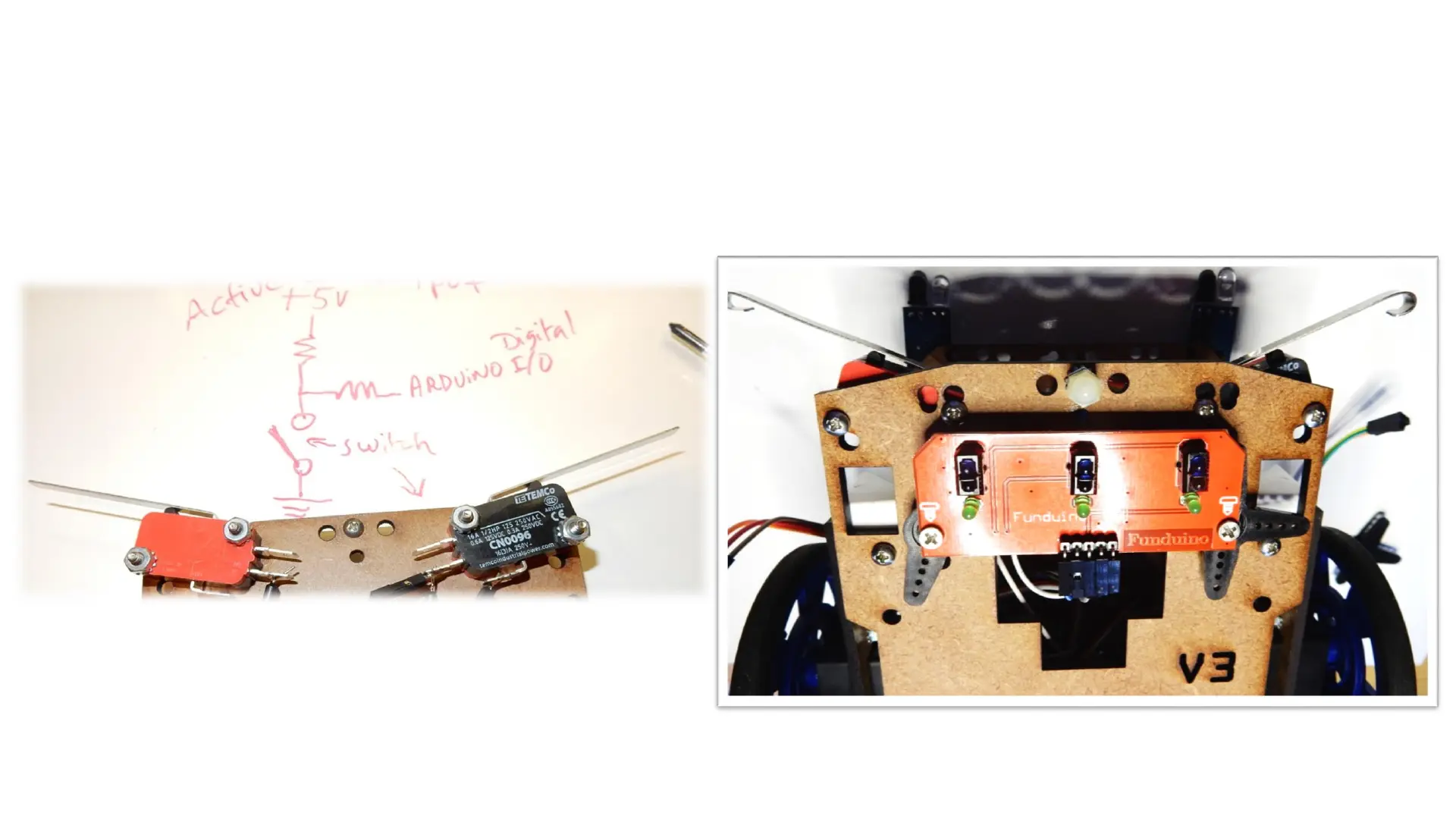

Screw switches as shown using
the 3/4 pan head screws
Pay attention to the angles the
switches are positioned at
