Installation, Start-Up, Adjustment and Maintenance Manual
39

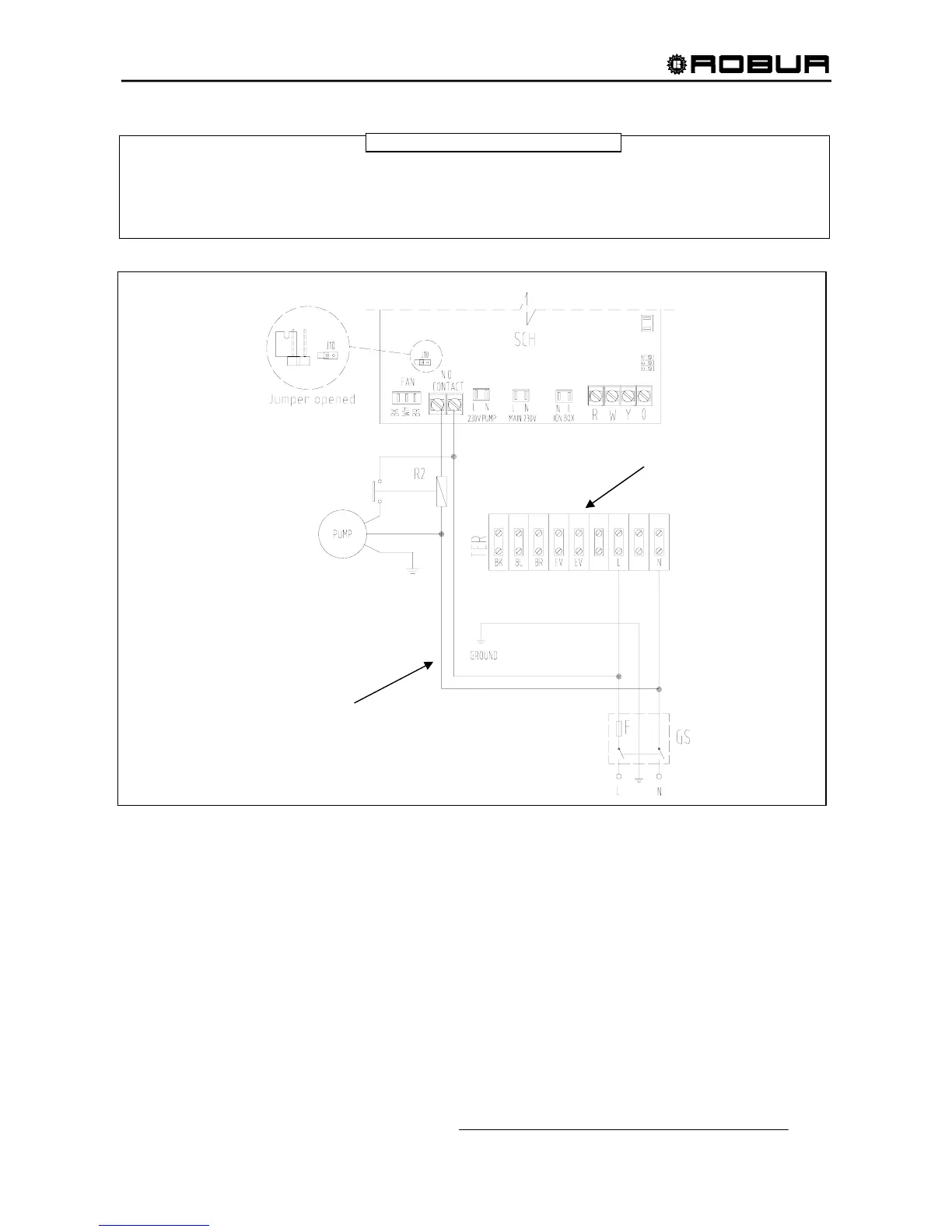

Figure 16 – WIRING FOR A SINGLE ACF60-00 UNIT WITH PUMP ABSORBED CURRENT MORE THAN 4 AMP
If power for the water pump is taken from the high voltage terminal block located in the electrical control
box, as shown in Figure 15, the minimum circuit ampacity for the unit must be increased above that listed in
the TECHNICAL DATA sheet in SECTION 2 to accommodate the additional current draw of the water
pump installed. The maximum current carrying capacity of the N.O. Contact is 4A. If the current is
above 4A, use an additional relay controlled by N.O. Contact on the S61 board.
WARNING
GROUND CABLE HAS TO BE
CONNECTED BY A SUITABLE EYELET
TO THE GROUND PIN INTO THE
ELECTRICAL BOX, AND FIXED TO IT
BY THE PROPER PRESET NUT.
L, N WIRING TO THE
TERMINAL BOARD MUST
BE DONE RESPECTING
THE CORRECT POLARITY
USE A 15 AMP TIME
LAG FUSE ON L WIRE.
