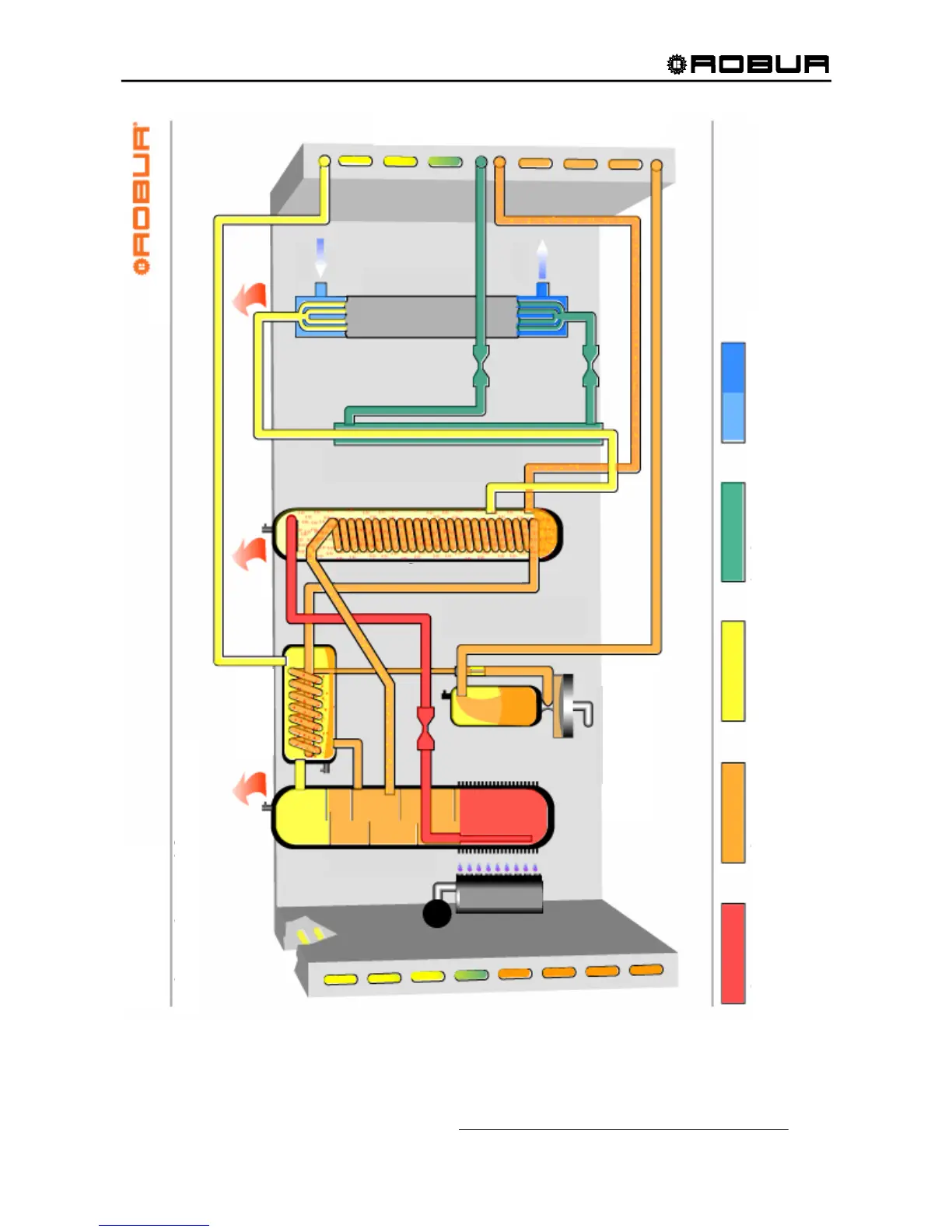

Figure 2– ABSORPTION REFRIGERANT CYCLE
EVAPORATOR
TUBE-IN-TUBE REFRIGERANT
HEAT EXCHANGER
SOLUTION
PUMP
SOLUTION COOLED
A
BSORBER
GENERATOR
RECTIFIER
BURNER
WEAK STRONG REFRIGERANT REFRIGERANT CHILLED
SOLUTION SOLUTION VAPOR LIQUID WATER
CONDENSER / ABSORBER
RESTRICTORS
ACF60-00
