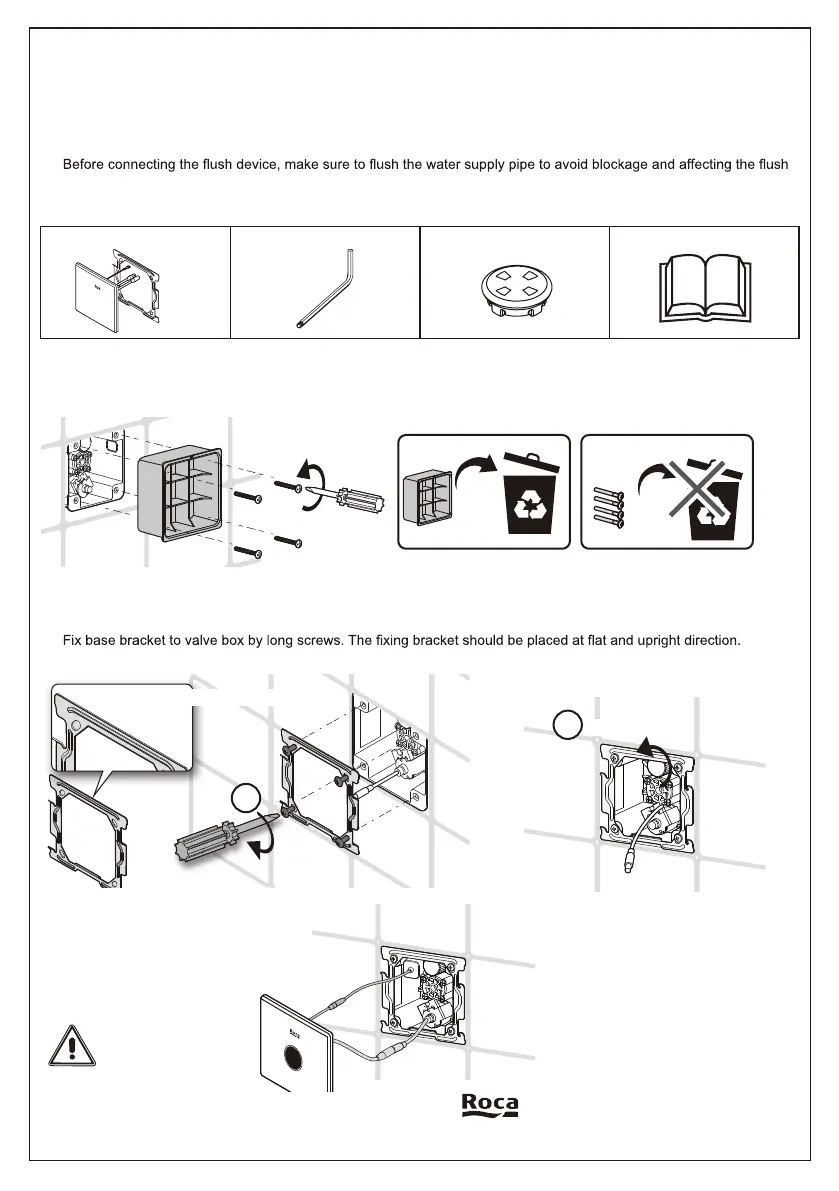

2. Installation procedure
Fixing bracket
1.
2. Ap
ply with screw driver to open water knob.
Front panel assembly Hex wrench Magnet Manual
Part list
Attention
1. Please keep the sensor window away from strong UV and electromagnet.
2. Please do not hit the case and sensor window to avoid damaging the device.
3. The sensitive distance between surrounding space and the right front side of product should not be less than 70cm.
Sensitive distance of sensor does vary according to surrounding background color.
4. Mirror stuff should be prevented to be placed at the right front side of product. (For example, stainless stuff)
5.
result.
Attention
• The installation direction of panel should be used the character, as the front side.
• The connection of connecting or inserting components should be installed to its position based on its direction. It
should not be forcibly pushed ; otherwise, this will cause the damage of product or invalid water proof.
UP
The main slot should be upward.
DV6V
1
2
Open water
Connect cable/battery
Connect panel sensor cables, to solenoid valve and power switch (or battery case)
1. Uninstall mud protection box
Remove the mud protection box.
Note: The fixing screw will be used on next step, please do not throw it away.
