rock space AC1200 User Manual

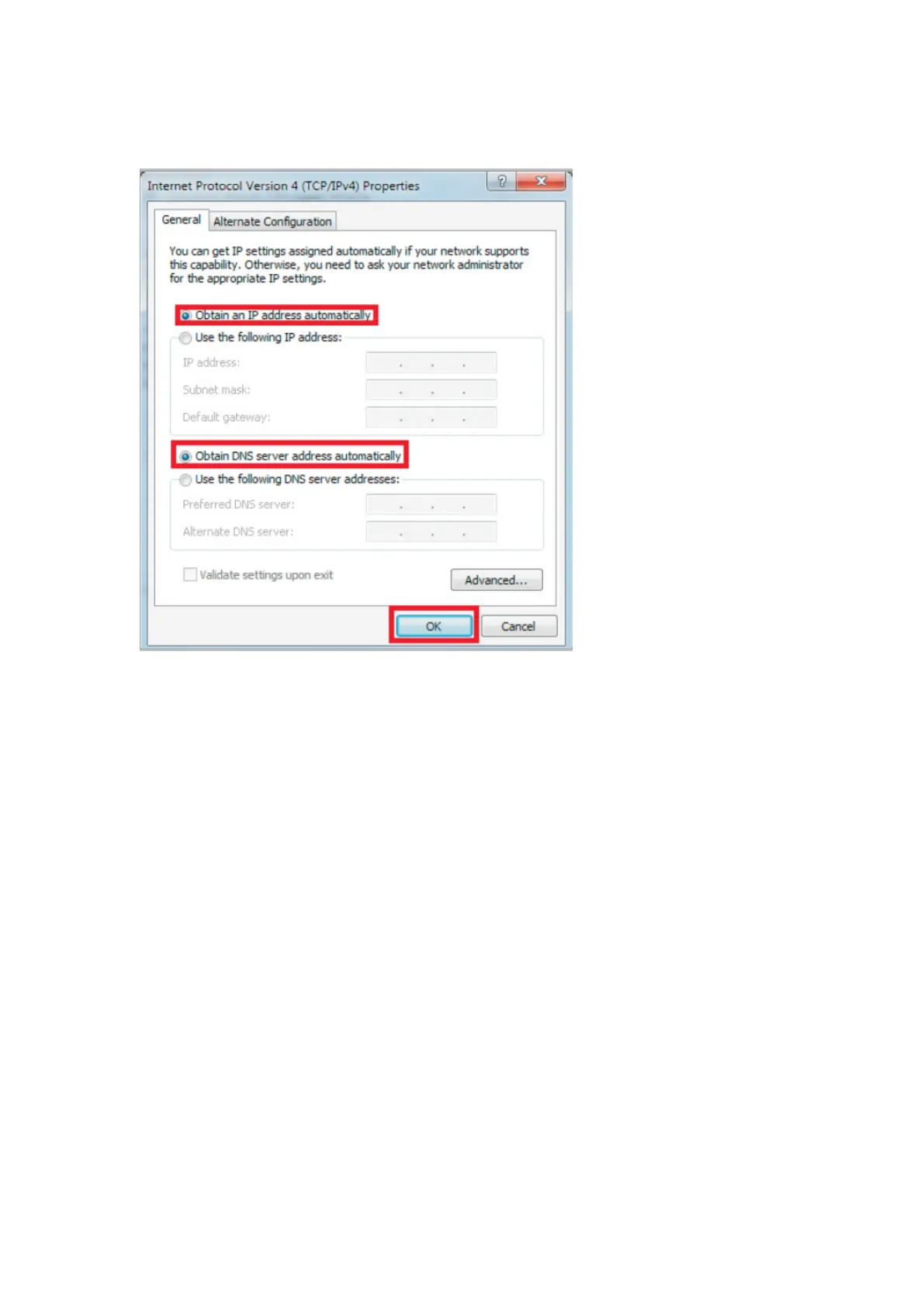

3.3 Select 【Obtain an IP address automatically】-【Obtain DNS Server address
automatically】,click【OK】,Return back to the previous interface and click【OK】.
The default IP address of the router is http://192.168.1.1. Both of these parameters
can be changed as you want. In this guide, we will use the default values for
description.
Connect the local PC to the LAN port on the router. There are then two ways to
configure the IP address for your PC.
Configure the IP address manually
Configure the network parameters. The IP address is 192.168.1.xxx (“xxx” range
from 2 to 254). The Subnet Mask is 255.255.255.0 and Gateway is 192.168.1.1
(Router’s default IP address).
Obtain an IP address automatically
Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your PC.

rock space AC1200 Specifications

General

Brand	rock space
Model	AC1200
Category	Wireless Router
Language	English
