Removing the TV from the wall mount

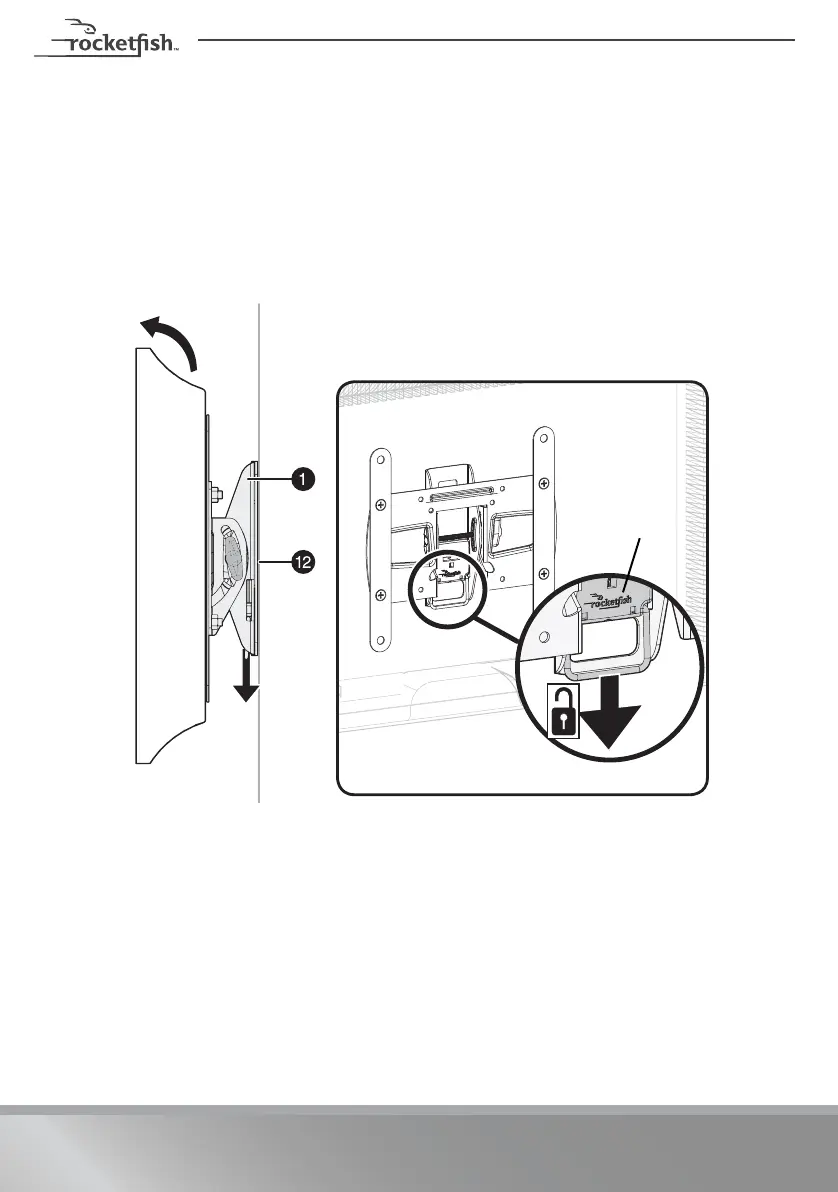

1 To remove your TV from the wall plate (12), disconnect all cables, then pull down
on the release latch.
2 Swing the bottom of the TV out from the wall bracket, then lift the assembly off
the wall bracket.
IMPORTANT: Your TV is heavy. You may need assistance with this step.
