RF-TVMLPT03V2 TV Wall Mount

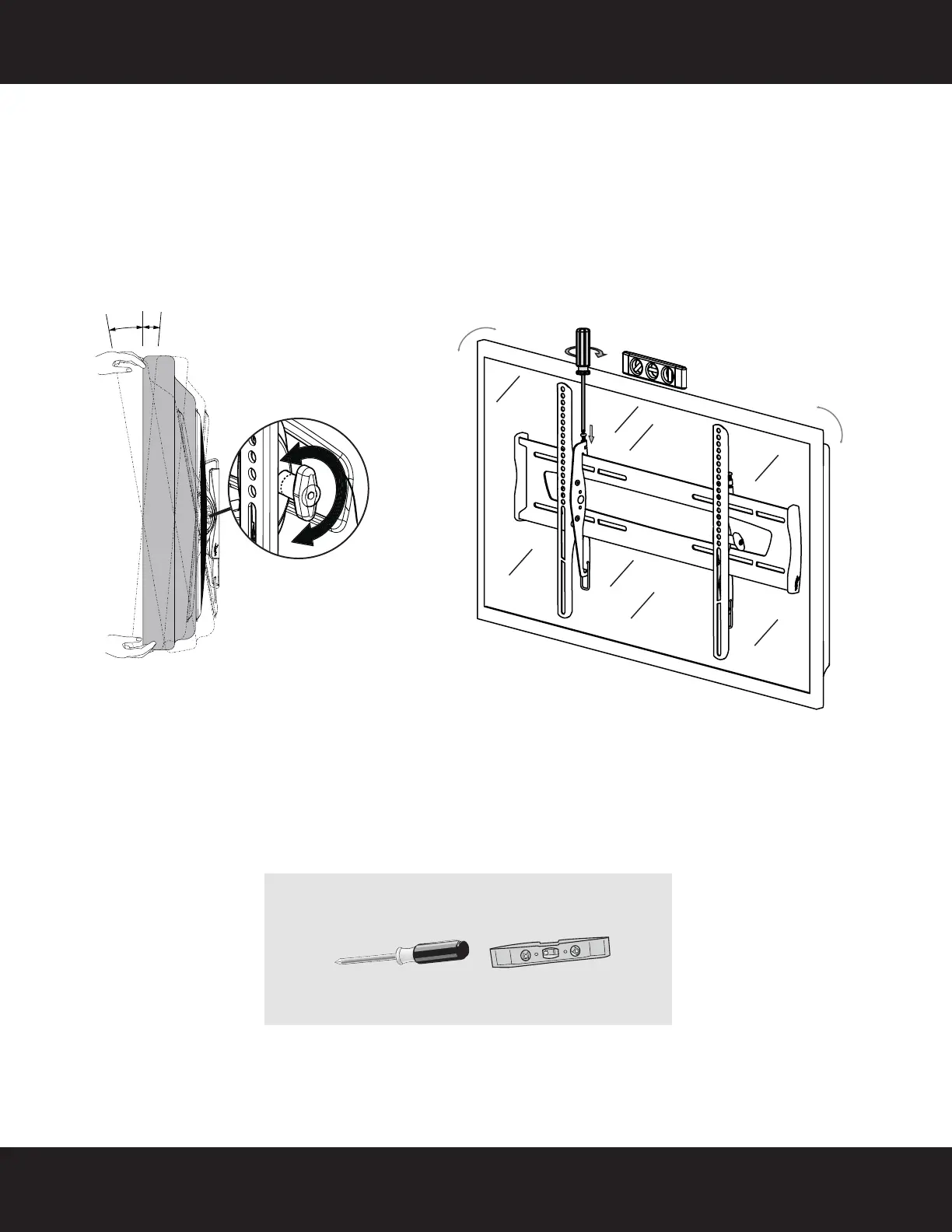

STEP 7 - Adjusting the tilt angle
1 Adjust the swivel tension by hand or by using a 3/16" hex key (not included), then adjust the tilt angle by
gripping the top and bottom of the TV and manually moving the TV to the angle you want. When you are
done adjusting the tilt tension, retighten the knob, but don not over-tighten. Tighten the swivel tension
after the adjustments have been made.
2 Adjust the level by loosening and tightening the screws on the tops of the vertical brackets.
You’ll n eed
10° 5°
Phillips screwdriver
Level
