32
Operating Voltage
9 - 16 VDC
Recommended Fuse
2 A
Max REM Out Current
1 A
Input Impedance (Low Level)
10K Ohm
High Level Turn On DC Voltage
4 - 16 VDC
Input Sensitivity
Low Level (RCA) 0.1V - 2V
High Level
0.1V - 28V
AUX 0.1 - 1V
Frequency Response 20 - 20K +/- 0.5dB
Max Output Voltage 8 V
AC @ 0.1% THD
THD+N <0.01 @ 1KHz
Signal to Noise Ratio (RCA) >105 dBA (A weighted)
Signal to Noise Ratio (Optical) >110 dBA (A weighted)
Signal to Noise Ratio (AUX) >105 dBA (A weighted)
Common Mode Rejection Ratio >70
Channel Separation
>73dB @ 1KHz
:WLJPÄJH[PVUZ
CEA 2006
Measurements on Rockford Fosgate processors conform to CEA-2006 industry standards.
Channel Front Front2 Rear Sub
Interval (oct)
Adjustable
Bands
31 31 31 31
Delay
0 - 10 msec
Q Range
0.1 - 6.0
Frequency
20 -20KHz
Presets
Assignable 4
Crossover Setting AP/HP/LP/BP/Shelf
Slope (dB/oct)
12 / 24 / 36 / 48
Range (Hz)
20 - 20kHz
Class
Linkwitz / Bessel / Butterworth / Chebychev
Length
5.0”
12.75 cm
Width
9.3” 23.6 cm
Height
1.7” 4.3 cm

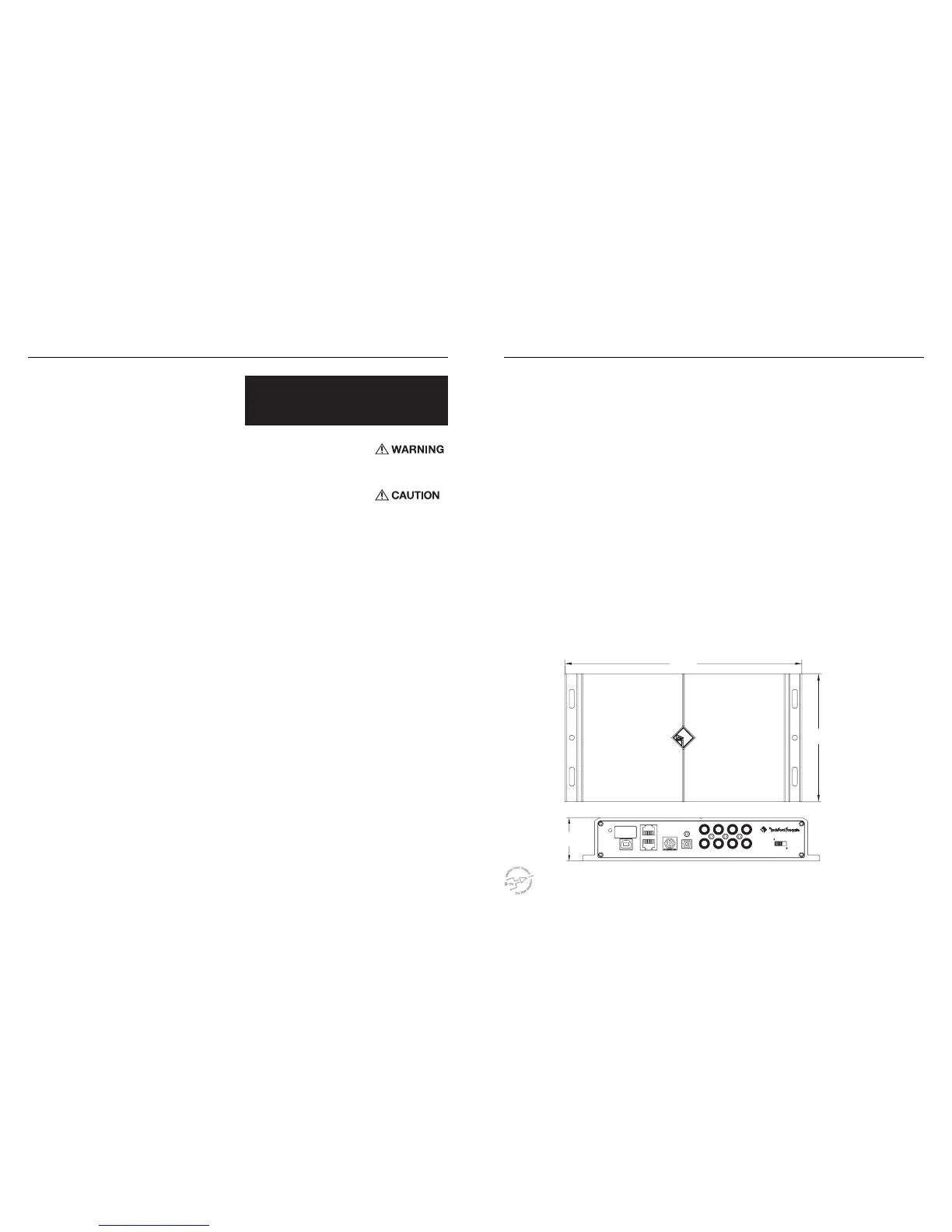

Technical Specifications
Dimensions
Crossover
Equalizer
9.3"
(23.6)
5.0"
(12.75)
1.7"
(4.3)
RESET
WIRELESS
USB RFLINK ACC OPT IN
FRONT FRONT2 REAR SUB
OUTPUTS
UNBALANCED
BALANCED
L
R
1
3
24
5
6
7
8
Dear Customer,
Congratulations on your purchase of the world’s finest brand of car audio signal
processors. At Rockford Fosgate we are fanatics about musical reproduction at
its best, and we are pleased you chose our product. Through years of engineering
expertise, hand craftsmanship and critical testing procedures, we have created a
wide range of products that reproduce music with all the clarity and richness you
deserve.
For maximum performance we recommend you have your new Rockford Fosgate
product installed by an Authorized Rockford Fosgate Dealer, as we provide special-
ized training through Rockford Technical Training Institute (RTTI). Please read
your warranty and retain your receipt and original carton for possible future use.
Great product and competent installations are only a piece of the puzzle when
it comes to your system. Make sure that your installer is using 100% authentic
installation accessories from Rockford Fosgate in your installation. Rockford Fos-
gate has everything from RCA cables and speaker wire to power wire and battery
connectors. Insist on it! After all, your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order your Rock-
ford accessories, which include everything from T-shirts to jackets.
Visit our web site for the latest information on all Rockford products;
www.rockfordfosgate.com
or, in the U.S. call 1-800-669-9899 or FAX 1-800-398-3985. For all other countries, call
+001-480-967-3565 or FAX +001-480-966-3983.
Table of Contents
If, after reading your manual, you still have questions regarding this prod-
uct, we recommend that you see your Rockford Fosgate dealer
. If you need
further assistance, you can call us direct at 1-800-669-9899. Be sure to
have your serial number, model number and date of purchase available
when you call.
Safety
This symbol with “WARNING” is intended
to alert the user to the presence of important
instructions. Failure to heed the instructions
will result in severe injury or death.
This symbol with “CAUTION” is intended to
alert the user to the presence of important
instructions. Failure to heed the instructions
can result in injury or unit damage.
sTo prevent injury and damage to the unit, please read and follow the
instructions in this manual. We want you to enjoy this system, not get
a headache.
sIf you feel unsure about installing this system yourself, have it installed
by a qualified Rockford Fosgate technician.
sBefore installation, disconnect the battery negative (-) terminal to
prevent damage to the unit, fire and/or possible injury.
Contents of Carton
s3Sixty.3 Interactive Signal Processor
sBluetooth Dongle
sRemote Level(s) Controller
sRemote Level Control Cable (20ft)
sPower Connector (4 pin)
sHigh Level Input Connection (16 pin)
s Installation & Operation Manual
sMultimedia Setup Disc (CD)
sUSB cable (20ft)
0U[YVK\J[PVU
©2011 Rockford Corporation. All Rights Reversed. ROCKFORD FOSGATE, PUNCH, and associated logos where applicable are registered trademarks of Rockford
Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications subject to change without notice.
PRACTICE SAFE SOUND
Continuous exposure to sound pressure levels over 100dB may cause
permanent hearing loss. High powered auto sound systems may
produce sound pressure levels well over 130dB. Use common sense
and practice safe sound.
2 Introduction
3 Specifications
4-5 Design Features
6-9 Installation
Installation Considerations
Input Connections
Remote Connections
Output Connections / Software Installation
9-11 Initial Setup
File / Device Tabs
Presets / Preferences
12-14 EQ Setup
EQ Controls
EQ Controls
15-17 High Level Sample System
18-20 Low Level Sample System
21-23 EQ Sample System
24 Final Setup
25 Troubleshooting
26 Troubleshooting Noise
27 Limited Warranty Information
28 Quick Setup Guide
