Bracket Installation
1. Cut all pieces to the dimensions listed for your bed size.
2. Mark the drilling locations on the right and left cabinet
Sides (1) for the Threaded Inserts (T) that will be used
to attach the Mounting Plates (I). Drilling Guide.

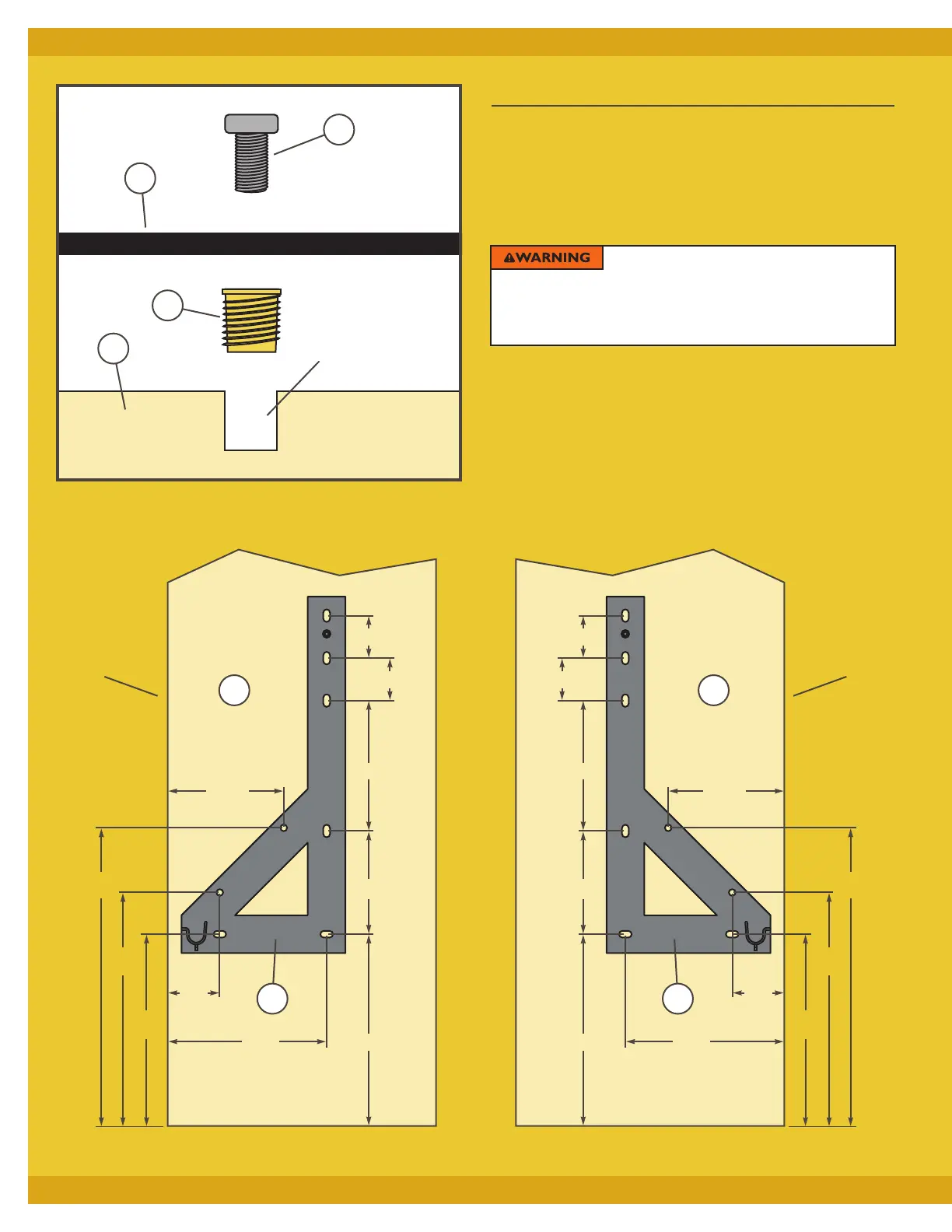

3. Drill a 27/64" diameter x 9/16" deep pilot hole at each
location. Fig. 1.
Drilling Guide
Fig. 1
27/64" diameter x
9/16" deep pilot hole
4. Use an 8mm Allen Key (not included) to drive the Threaded
Inserts (T) into the pilot holes. Drive the inserts flush to the
surface of the Sides, but take care not to strip the hole by
driving too far. Fig. 1.
5. Using the #5 Allen Key (S2), attach the Mounting Plates (I)
to the Sides (1) with M8 x 16mm Screws (U) threaded into
the Threaded Inserts (T). Wait until you have installed all
screws to fully tighten. Fig. 1.
11
7
⁄16" 11
7
⁄16"
9
7
⁄16" 9
7
⁄16"
3
1
⁄8" 3
1
⁄8"
17
11
⁄16" 17
11
⁄16"
13
7
⁄8" 13
7
⁄8"
11
7
⁄16" 11
7
⁄16"
2
1
⁄2" 2
1
⁄2"
2
1
⁄2" 2
1
⁄2"
7
9
⁄16" 7
9
⁄16"
6
1
⁄4" 6
1
⁄4"
6
15
⁄16" 6
15
⁄16"
Left Cabinet
Side
Right
Cabinet
Side
Front
Edge
Front
Edge
Do NOT use other fasteners, such as
standard wood screws, to attach the Mounting Plates (I) to
the Sides (1). The forces involved in the operation of the
bed mechanism could cause less robust fasteners to fail,
potentially resulting in serious personal injury.
