Rocktron MIDI Mate - Using a MIDI Y Cord

5
The power cord may be plugged into a special MIDI "Y" cord (Rocktron
Part# 006-1097) to power the MIDI Mate through pins 6 and 7 of the MIDI
Mate MIDI OUT jack. Rocktron also has a 5 to 5 pin MIDI cable (Part# 001-
1095) and 7 to 7 pin MIDI cable (Part# RMM900) available to power the MIDI
Mate through phantom power on other products.
Rocktron also offers an expression pedal stereo "Y" cord (Part# 006-
1107).

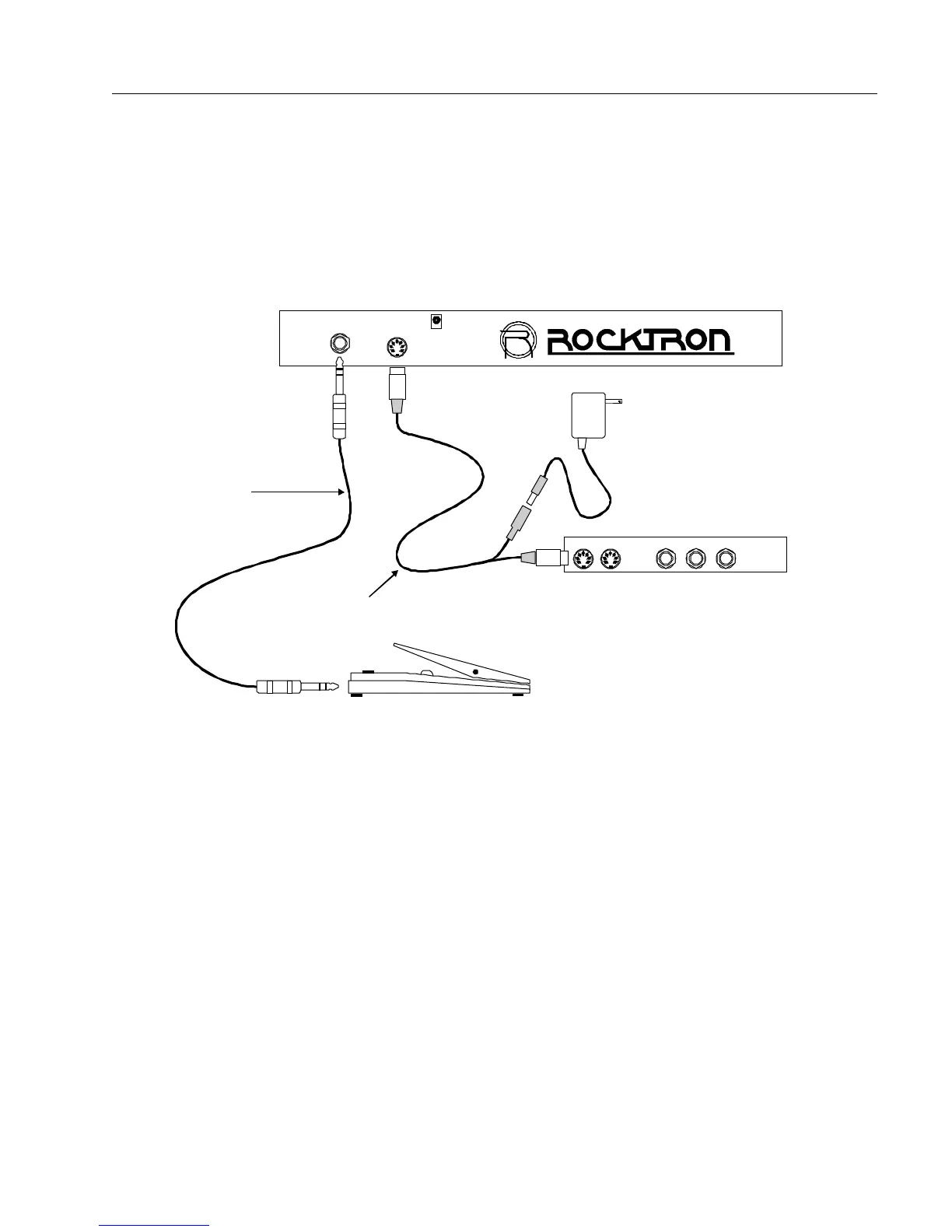

Quick Setup using a MIDI "Y" cord:
MIDI "Y" CORD
EXPRESSION PEDAL
MIDI RECEIVING DEVICE
9VAC ADAPTOR
PEDAL
POWER
9VAC-800mA
(PHANTOM POWER)
MIDI OUT
MIDI IN
¼" STEREO TO
¼" STEREO CORD
See page 28 for information on
expression pedal cords.
