6 POINT I/O Field Potential Distributor Modules
Publication 1734-IN059D-EN-E - April 2013
About the Module
The purpose of the POINT I/O™ Field Potential Distributormodule is to break the field
power distribution.
Use the module to change the field power distribution source for I/O modules to the right
of the module. This facilitates logical or functional partitioning of low-channel count,
high I/O-mix applications using the 1734-adapters, 1734-PDN, and 1734D Series
communication interfaces. This module passes through all POINT I/O backplane signals
except the internal field power bus for field devices.
You can use the module with a range of voltage inputs to include the following:
• 5…250V DC applications
• 24…240V AC applications

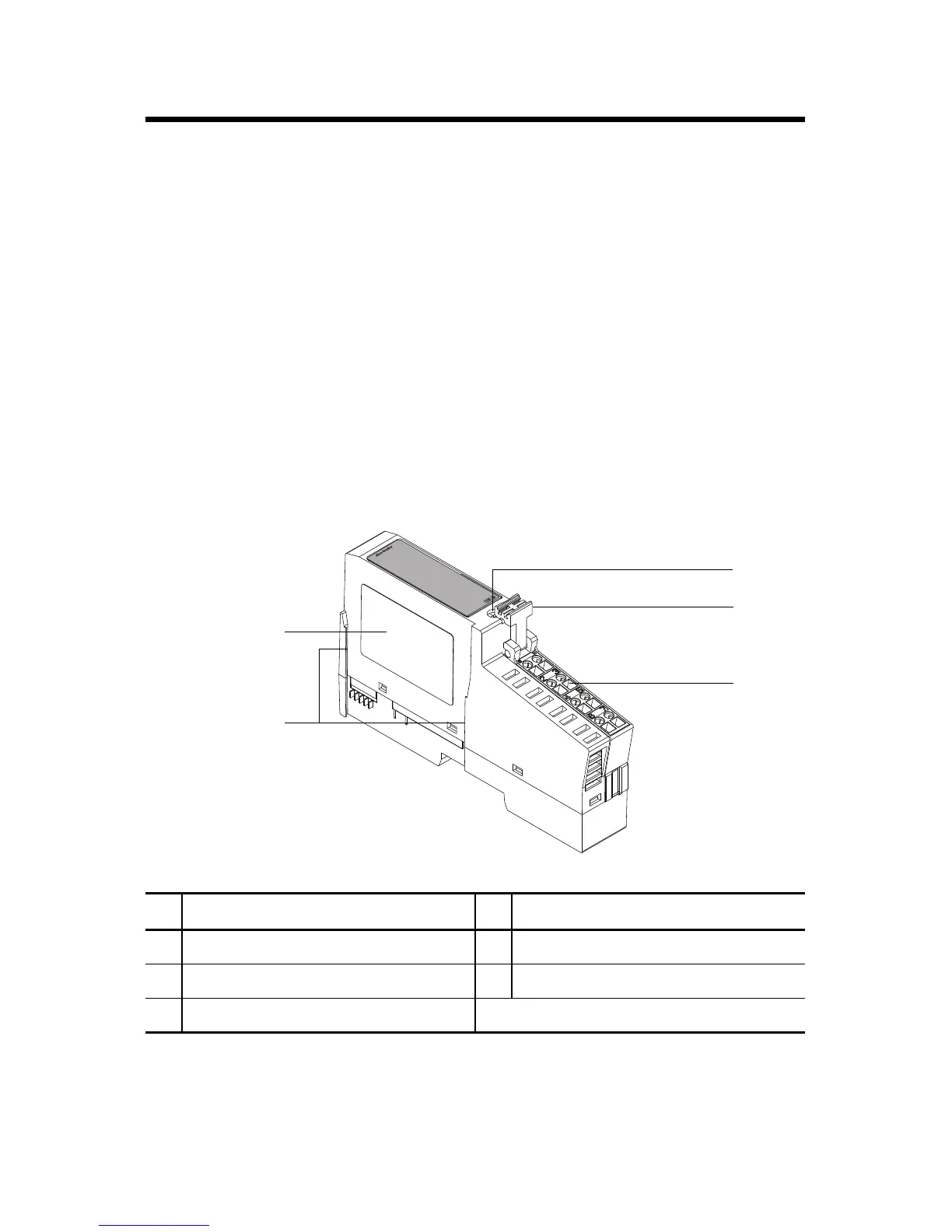

POINT I/O Field Potential Distributor Module
Description Description
1 Module label 4 Removable Terminal Block (RTB)
2 DIN rail locking screw (orange) 5 Interlocking side pieces
3 Removable Terminal Block handle
