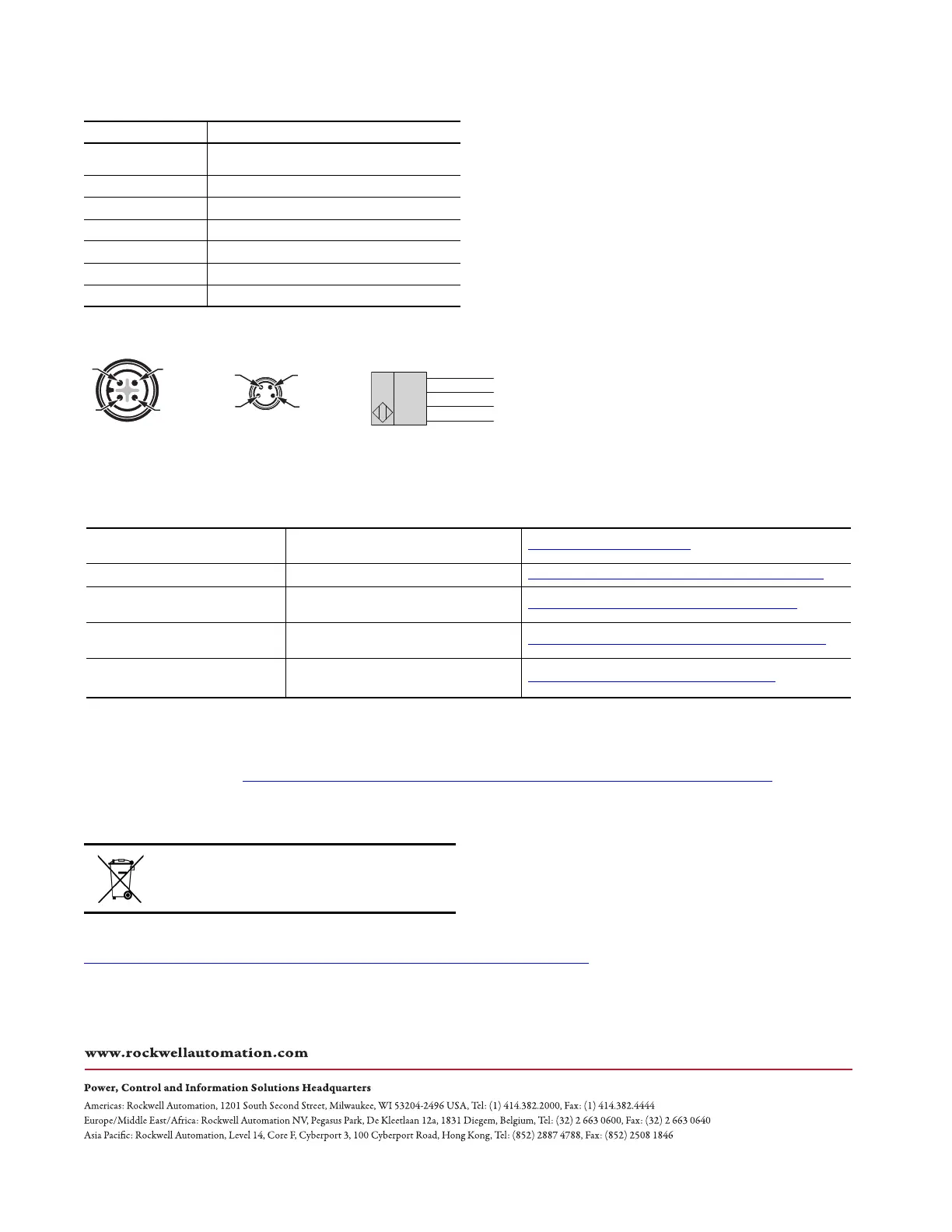

Figure 22 - Micro (M12) Male QD on Pigtail and Pico (M8) Male QD on Pigtail Wiring
Rockwell Automation Support
Use the following resources to access support information.
Documentation Feedback
Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this document, complete the
How Are We Doing? form at http://literature.rockwellautomation.com/idc/groups/literature/documents/du/ra-du002_-en-e.pdf.
Technical Support Center
Knowledgebase Articles, How-to Videos, FAQs, Chat, User
Forums, and Product Notification Updates.
https://rockwellautomation.custhelp.com/
Local Technical Support Phone Numbers Locate the phone number for your country. http://www.rockwellautomation.com/global/support/get-support-now.page
Direct Dial Codes
Find the Direct Dial Code for your product. Use the code to
route your call directly to a technical support engineer.
http://www.rockwellautomation.com/global/support/direct-dial.page
Literature Library
Installation Instructions, Manuals, Brochures, and
Technical Data.
http://www.rockwellautomation.com/global/literature-library/overview.page
Product Compatibility and Download
Center (PCDC)
Get help determining how products interact, check
features and capabilities, and find associated firmware.
http://www.rockwellautomation.com/global/support/pcdc.page
Waste Electrical and Electronic Equipment (WEEE)
Table 3- IO-Link Specifications
Attribute 46DFA-L2LBT1-xx
Model
2 m (6.56 ft) cable, 4-pin M12 QD on 150 mm (5.9 in.) pigtail, 4-pin M8QD
on 150 mm (5.9 in.) pigtail
IO-Link version V.1.1
Communication mode COM2 (38.4 kbps)
Cycle time 3.6 ms, min
Process data length 4 Byte
Vendor ID 2
Device ID 291
At the end of life, this equipment should be collected separately
from any unsorted municipal waste.
3
2
1
4
M12 Male
3
2
1
4
M8 Male
Brown (1)
White (2)
Black (4)
Blue (3)
+V
–V
Teachable PNP or NPN (IO-Link)
Teachable PNP or NPN Dark Operate
