PanelView Plus 700 to 1500 and PanelView Plus Compact 1000 Terminals and Display Modules 23
Publication 2711P-IN001I-EN-P - November 2009

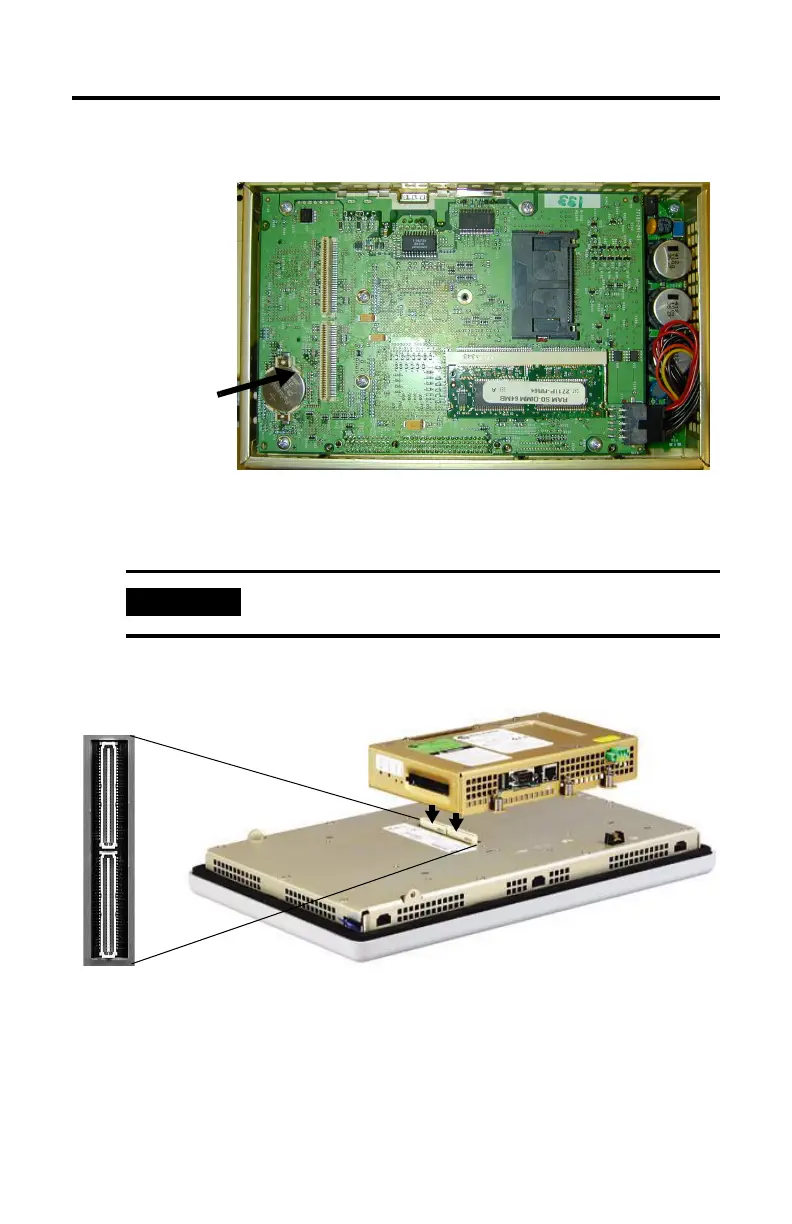

6. Locate the battery on the circuit board.
7. Remove the battery by lifting up the side of the battery.
8. Insert the new battery.
9. Reattach the logic module by aligning the two connectors on the bottom of the
module with the connectors on the terminal.
10. Push down on the logic module until it is firmly seated.
11. Tighten the six captive screws that secure the logic module to a torque of 0.58 N•m
(5…7 lb•in).
IMPORTANT
Use only replacement battery catalog number 2711P-RY2032.
Lift up the edge of the
battery indicated by
the arrow.
