198 Publication 2711P-UM001I-EN-P - December 2008
Chapter 8 Upgrade Firmware

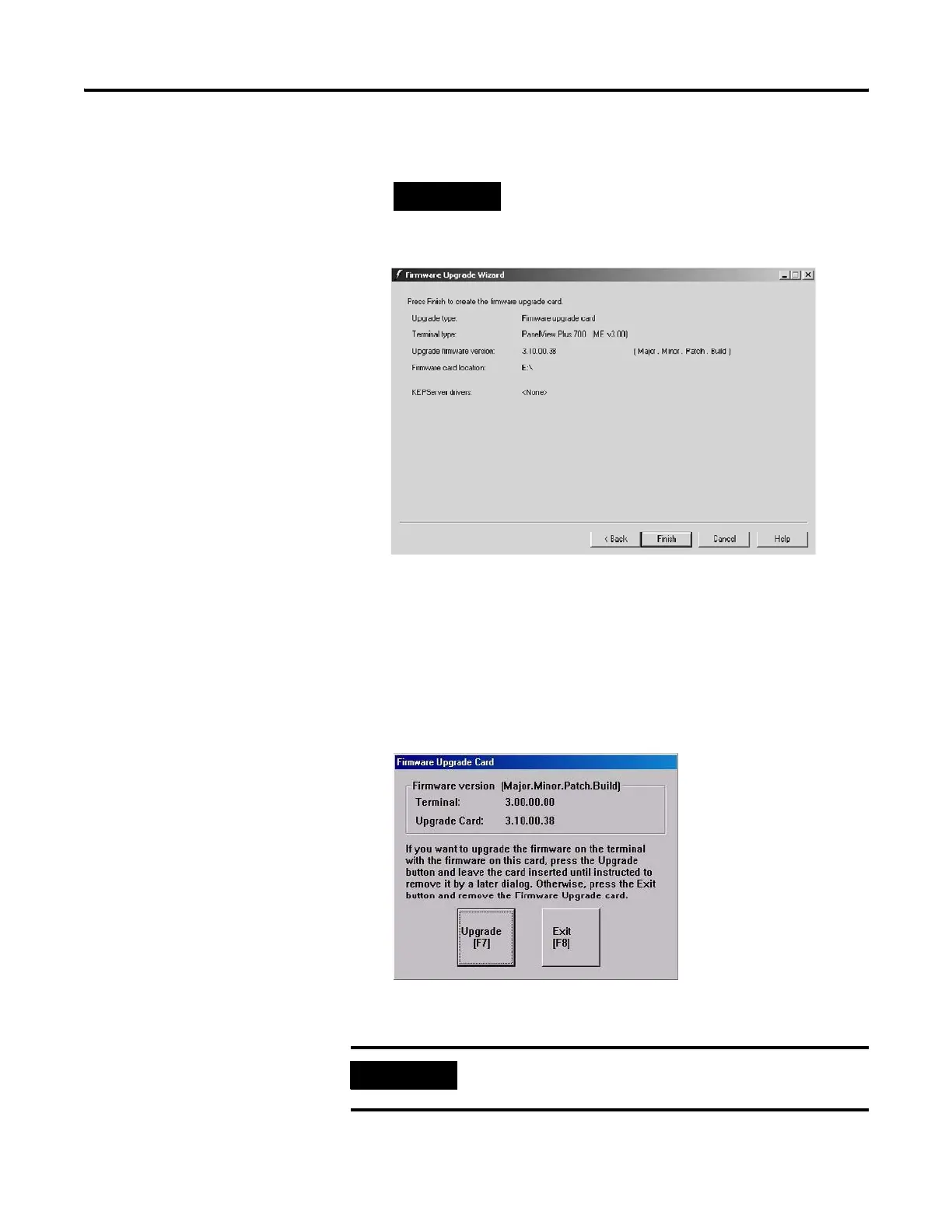

6. Select Finish to copy the firmware source files to the location
specified in step 2.
Upgrade Firmware in Terminal with Firmware Upgrade Card
1. Insert the CompactFlash card into the card slot of a powered
terminal.
A dialog indicates the firmware upgrade is about to occur.
2. Press Upgrade to begin the firmware upgrade.
TIP
If the files were created in a separate folder on a local
hard drive, copy the files to the root directory of the
CompactFlash card.
IMPORTANT
Do not remove the CompactFlash card while the upgrade is in
process.
