Rockwell Automation PanelView Plus 1000

44 Publication 2711P-UM001I-EN-P - December 2008
Chapter 2 Installation

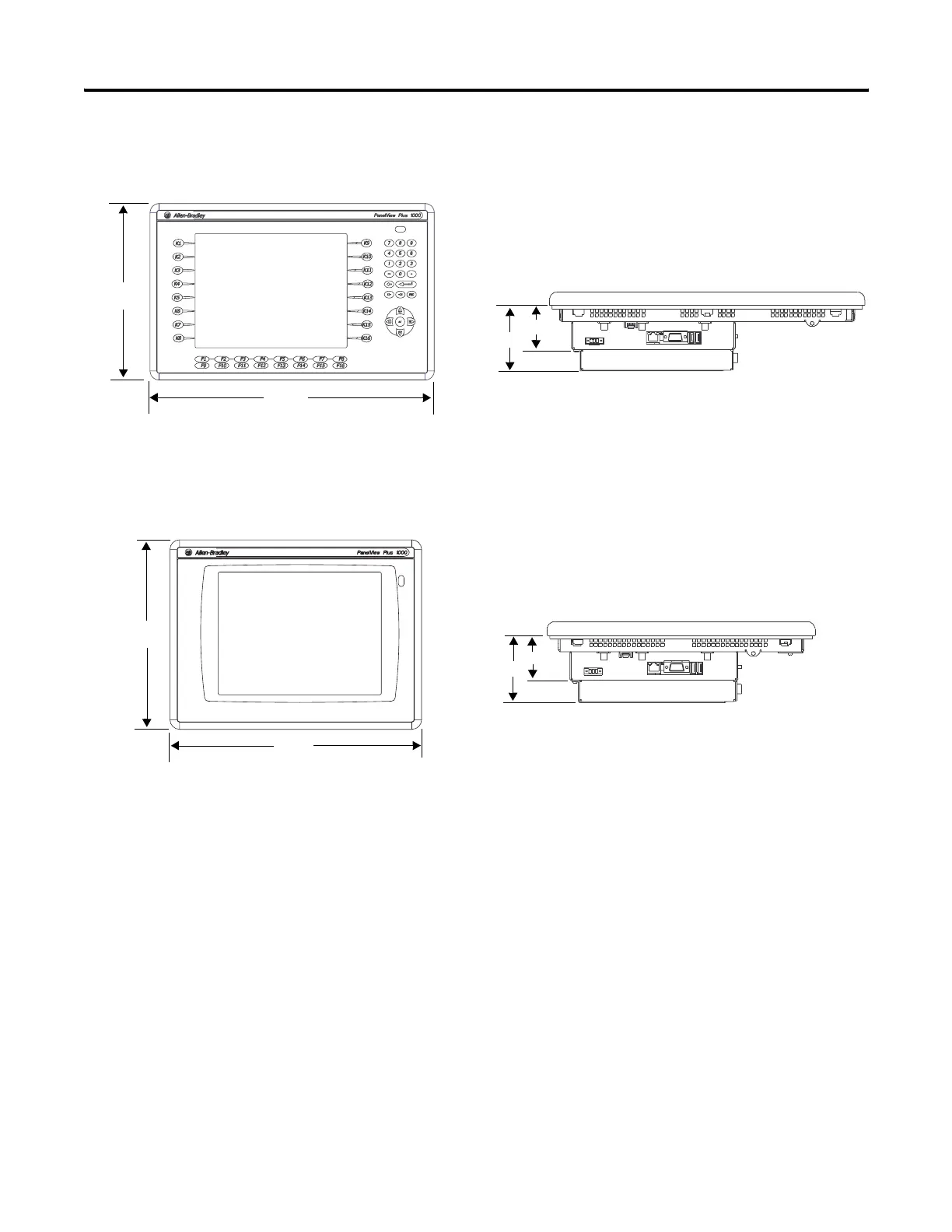

PanelView Plus and PanelView Plus CE 1000 Dimensions
The depth dimensions are shown for:
• base-configured unit (display module and logic module).
• base-configured unit with communication module.
329
399
(15.72)
248
(9.77)
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
b
a
a
b
1000 Keypad or Keypad/Touch Terminal
1000 Touch Screen Terminal
248
(9.7)
