Connect AC Power
Follow these steps to connect the terminal to AC power.
1. Verify that the terminal is not connected to a power source.
2. Secure the AC power wires to the terminal block.
Follow the markings on terminal blocks and terminal for proper connections.
3. Secure the protective earth ground wire to the marked position of the power input
terminal block.
4. Secure the functional earth ground wire to the functional earth ground screw on the
back of the display to ground bus.
5. Apply AC power to the terminal.
WARNING
Explosion Hazard - Do not connect or disconnect equipment while circuit is live unless
area is known to be nonhazardous.
Disconnect all power before installing or replacing components. Failure to disconnect
power may result in electrical shock and/or damage to the terminal.
ATTENTION
Improper wiring of power terminals may result in voltage at the communication

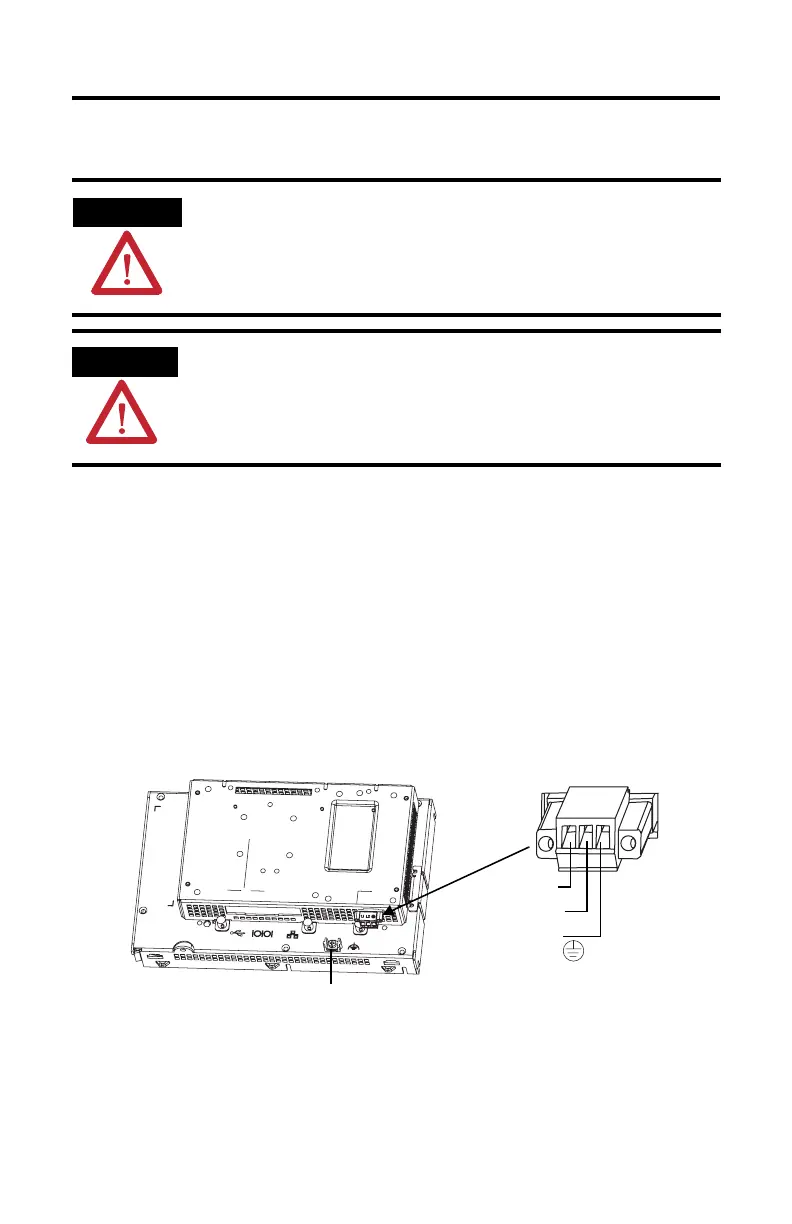

connector shells. Refer to the following figure when wiring.
Do not apply power to the terminal until all wiring connections have been made. Failure
to do so may result in electrical shock.
GND
L1
L2/Neutral
Protective Earth
to Ground Bus
Functional Earth Ground to Ground Bus
