rockymounts SplitRail - 3-Bike Assembly Instructions; 3-Bike Main Assembly Steps

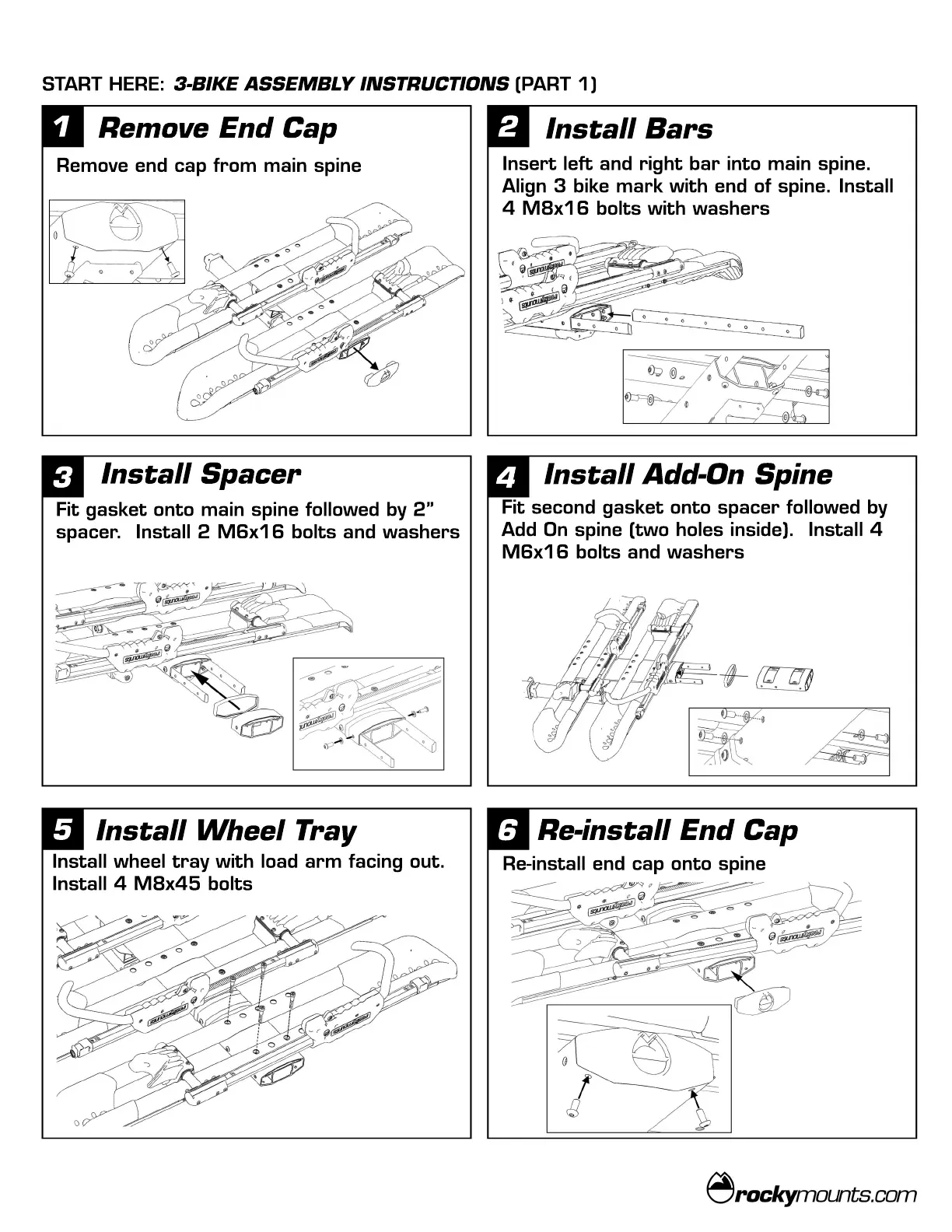

START HERE: 3-BIKE ASSEMBLY INSTRUCTIONS (PART 1)
Remove End Cap
Insert left and right bar into main spine.
Align 3 bike mark with end of spine. Install
4 M8x16 bolts with washers
Install Bars
Re-install end cap onto spine
Re-install End Cap
Install Wheel Tray
Install wheel tray with load arm facing out.
Install 4 M8x45 bolts
Remove end cap from main spine
Install Spacer
Fit gasket onto main spine followed by 2”
spacer. Install 2 M6x16 bolts and washers
Install Add-On Spine
Fit second gasket onto spacer followed by
Add On spine (two holes inside). Install 4
M6x16 bolts and washers
1
2
3
4
5
6
