rockymounts SplitRail - 4-Bike Assembly Part 1; Installing First Add-On; Preparing for Second Add-On

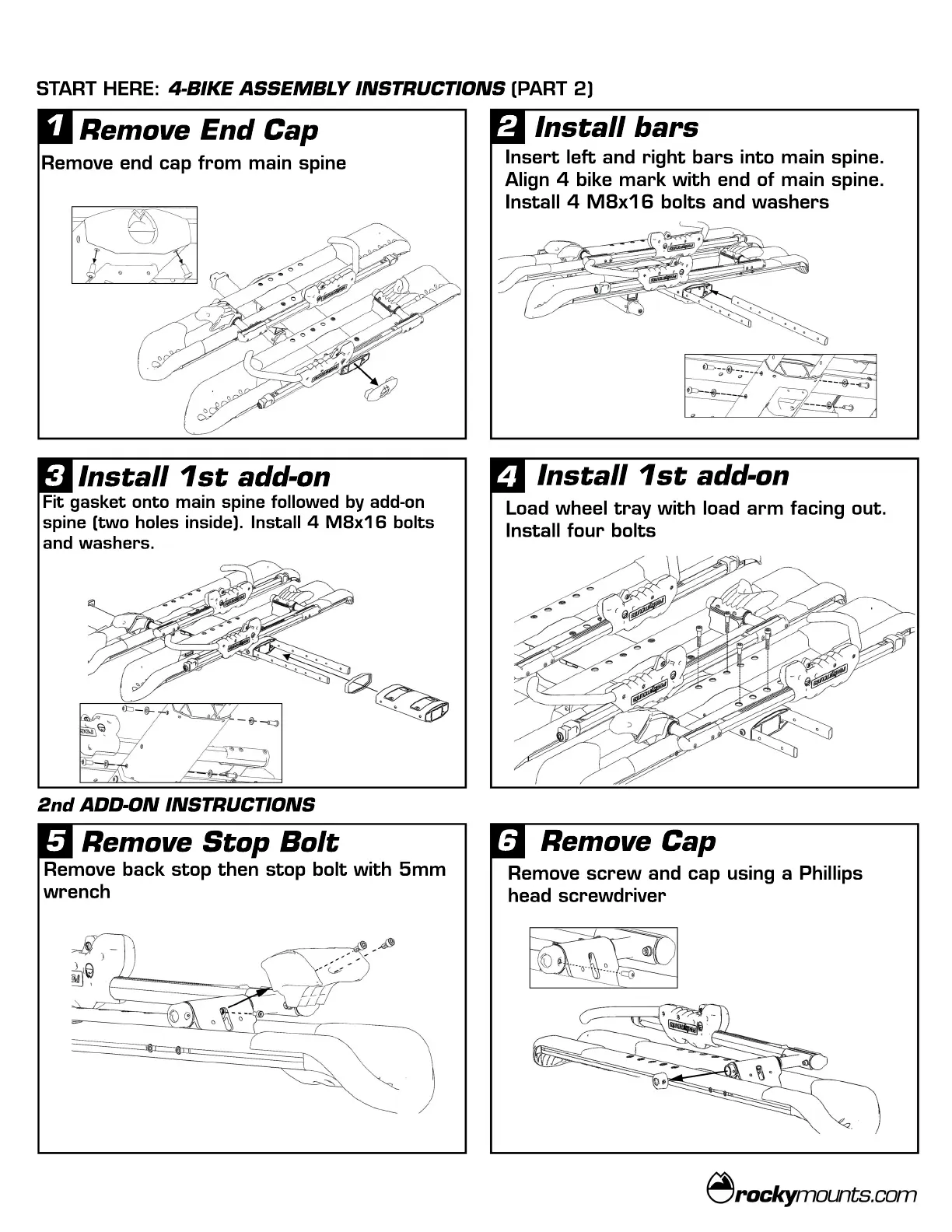

START HERE: 4-BIKE ASSEMBLY INSTRUCTIONS (PART 2)
2nd ADD-ON INSTRUCTIONS
Remove end cap from main spine
Insert left and right bars into main spine.
Align 4 bike mark with end of main spine.
Install 4 M8x16 bolts and washers
Fit gasket onto main spine followed by add-on
spine (two holes inside). Install 4 M8x16 bolts
and washers.
Load wheel tray with load arm facing out.
Install four bolts
Remove back stop then stop bolt with 5mm
wrench
Remove screw and cap using a Phillips
head screwdriver
Remove Stop Bolt
Remove Cap
Remove End Cap
Install bars
Install 1st add-on
Install 1st add-on
1
3
2
4
5
6
