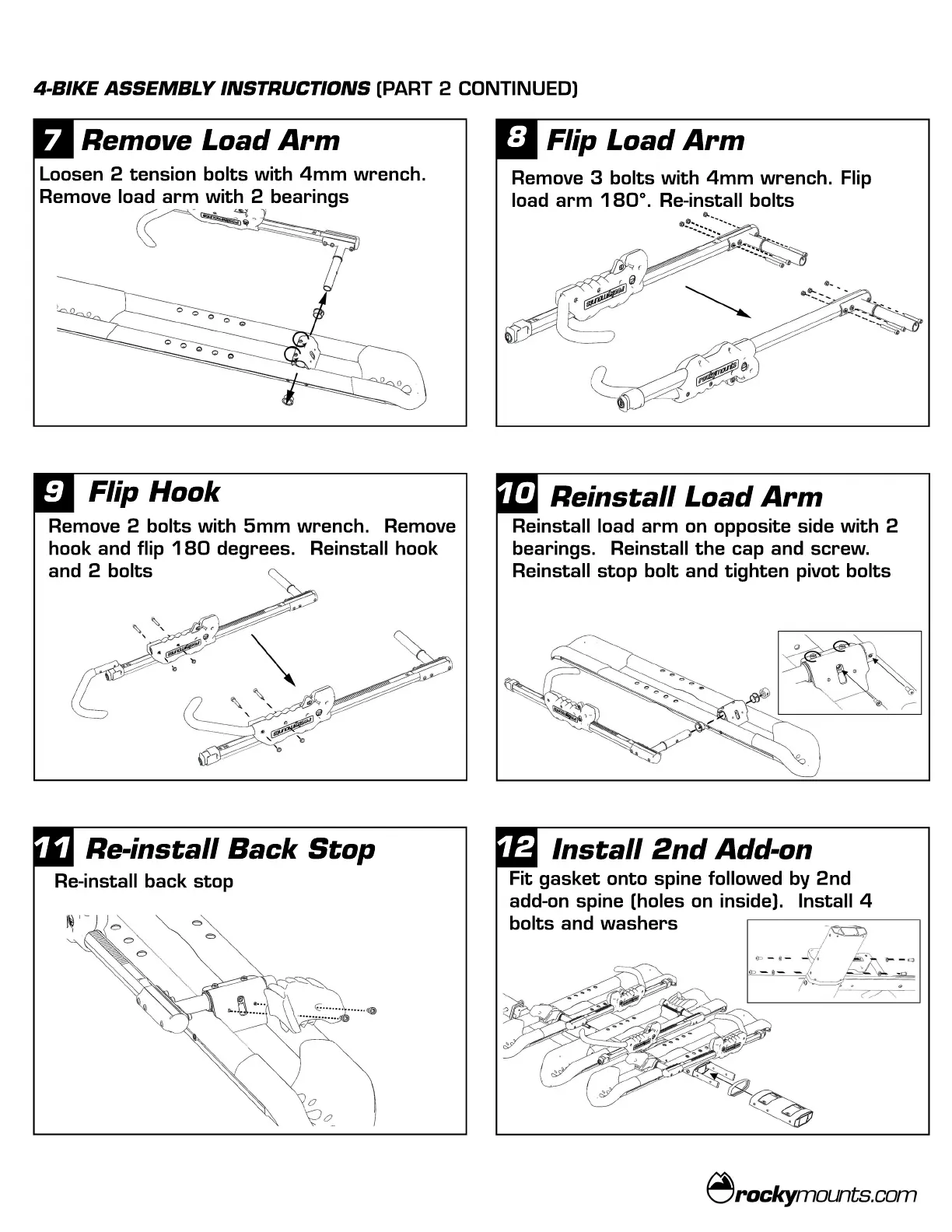

4-BIKE ASSEMBLY INSTRUCTIONS (PART 2 CONTINUED)
Remove 3 bolts with 4mm wrench. Flip
load arm 180°. Re-install bolts
Remove 2 bolts with 5mm wrench. Remove
hook and flip 180 degrees. Reinstall hook
and 2 bolts
Reinstall load arm on opposite side with 2
bearings. Reinstall the cap and screw.
Reinstall stop bolt and tighten pivot bolts
Re-install back stop
Fit gasket onto spine followed by 2nd
add-on spine (holes on inside). Install 4
bolts and washers
Loosen 2 tension bolts with 4mm wrench.
Remove load arm with 2 bearings
7
8
9
10
11
12
Flip Load ArmRemove Load Arm
Flip Hook
Reinstall Load Arm
Re-install Back Stop
Install 2nd Add-on
To Next Page
