14
GB

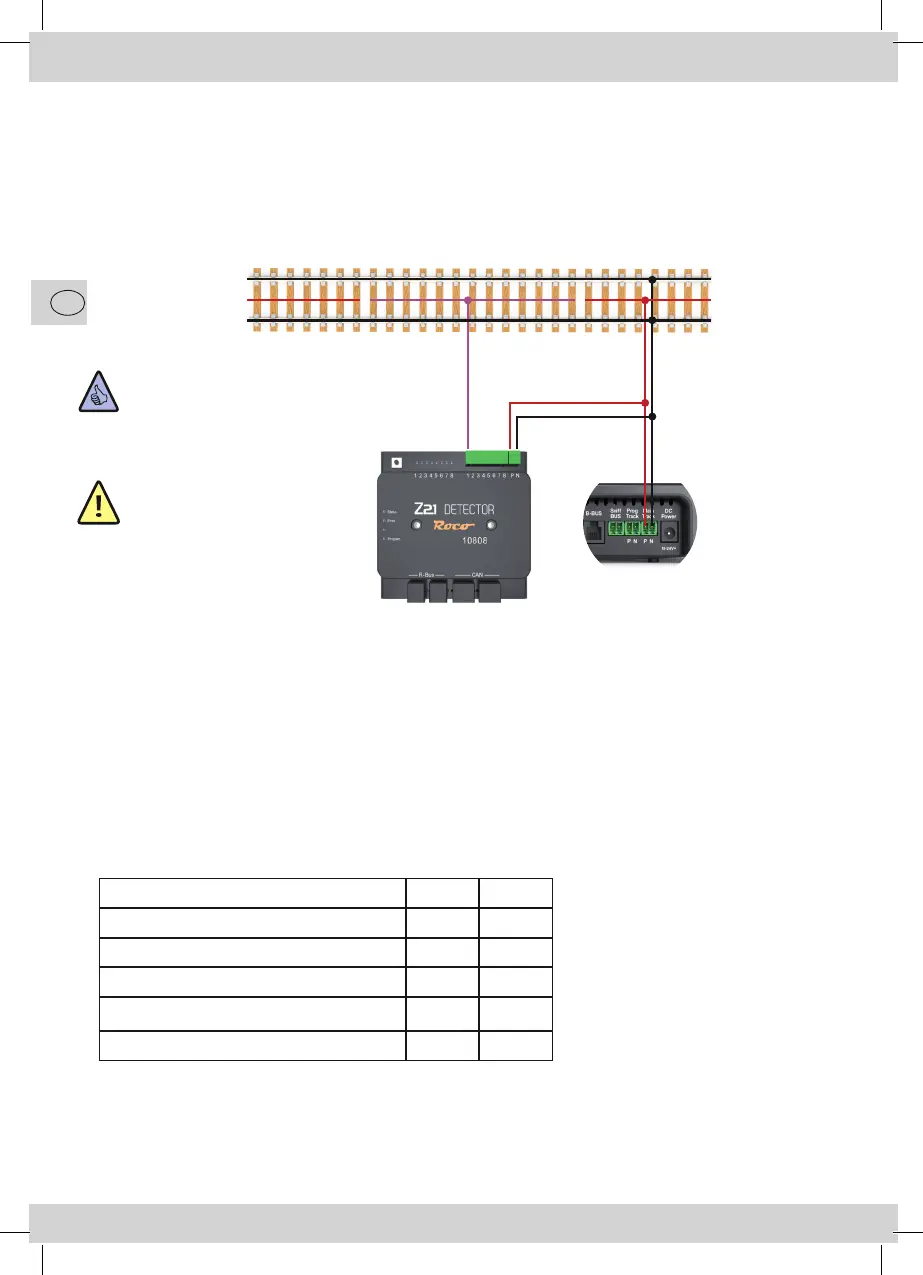

3-conductor track
For the power supply, connect the inputs P and N to the corresponding booster outputs.
Separate both sides of the neutral conductor and connect the resulting feedback section to one of the 8
feedback terminals.
Note: It is also the case here
that both sides of the feedback
sections are to be separated
from the system.
Please also ensure that the
separation consistently takes
place at the neutral conductor.
Short circuiting could
otherwise occur when the
separation points are crossed.
Z21 Connecting the Z21 Detector to the Control Centre
The detector can be connected to the control centre in two ways:
• via the CAN interface on the black Z21
• via the R-BUS interface on all of the Z21 control centres and the multiZENTRALE
pro
Interfaces and their possibilities
CAN R-BUS
Update possible via Z21 X
RailCom
®
X
Occupied message X X
Con guration via Z21 by PC & App X
Rerailing detection display X
Z21
