Rodix VF-3 - Wiring Diagram Details; Input Power Connections; Output Power Connections; Sensor Option Connections

RODIX, INC.
Toll Free (800) 562-1868, FAX (815) 316-4701
Email custserve@rodix.com
rodix.com
VF-3-2 H cover.docx 10/3/2020 Page 2
RODIX INC.
FEEDER CUBE 
VF Series

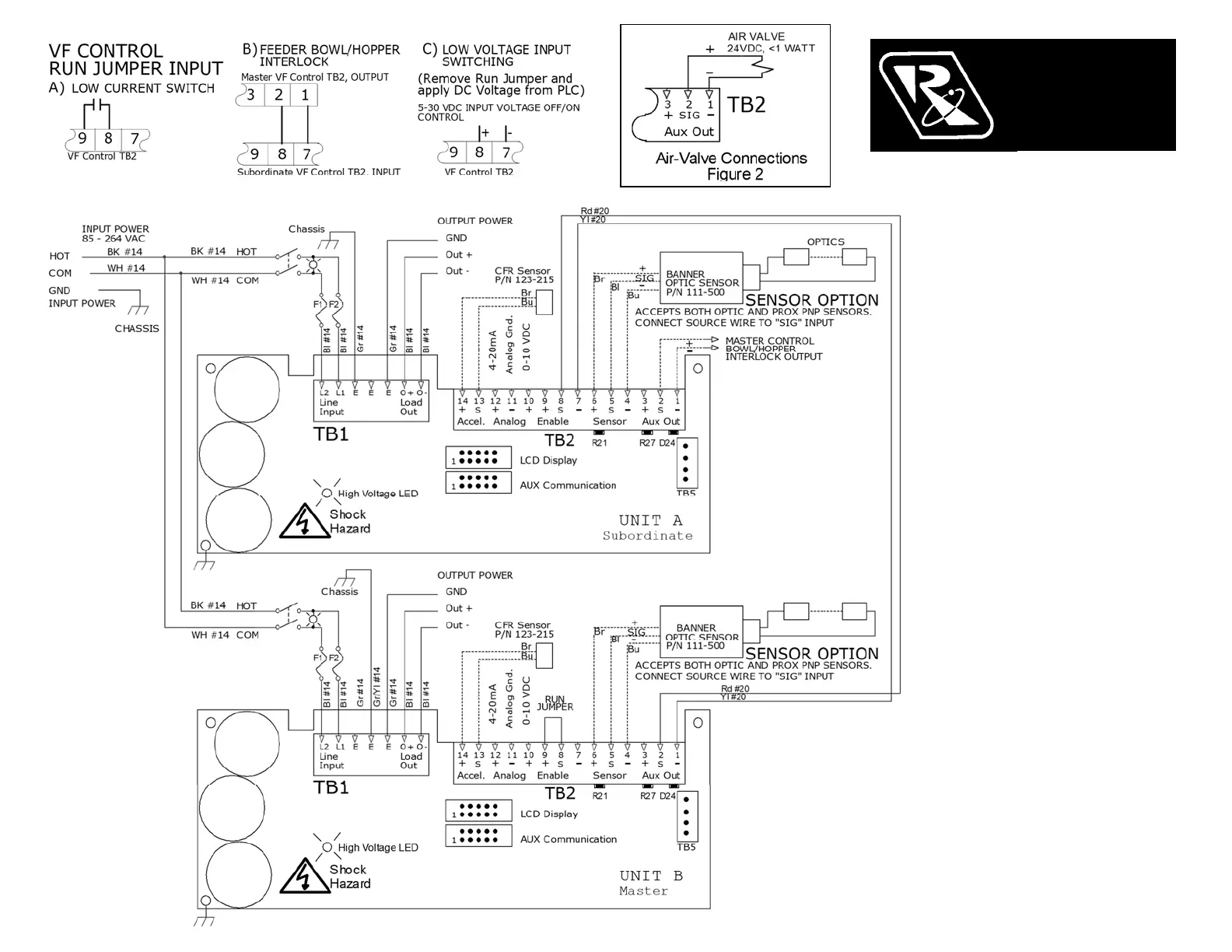

WIRING DIAGRAM

Figure 1
