Roger B-CONNECT B74/BCONNECT - Page 2

2
1. LED ROSSO / RED LED:
- lampeggio 0.5s ON, 8s OFF: B74/BCONNECT sta comunicando con la centrale di comando / ashing 0.5s ON, 8s OFF: B74/BCONNECT is
communicating with the control unit
- lampeggio 0.5s ON, 0.5s OFF: aggiornamento rmware centrale di comando in corso / ashing 0.5s ON 0.5s OFF: control unit rmware update in progress
- lampeggio 1s ON, 1s OFF: trasferimento le di aggiornamento rmware della centrale di comando verso la memoria del B74/BCONNECT / ashing
1s ON, 1s OFF: transfer of rmware update les from the control unit to the B74/BCONNECT memory
2. LED VERDE / GREEN LED:
- acceso sso: connesso a router e cloud / xed access: connected to router and cloud
- lampeggio 0.5s ON, 8s OFF: connesso al router / ashing 0.5s ON, 8s OFF: connected to router
- lampeggio 1s ON, 1s OFF: aggiornamento del dispositivo B74/BCONNECT in corso / ashing 1s ON, 1s OFF: B74/BCONNECT device update in progress
3. PULSANTE DI RESET / RESET BUTTON:
reset temporaneo con disconnessione rete wi / temporary reset with wi network disconnection
4. Connettore SERIALE per collegamento ai controller digitali Roger Brushless / SERIAL connector for connection to Roger Brushless digital controllers
38,5
27,2
32,2
7,7
43
31
34
14
1
2
3
4
B74/BCONNECT
1
2
ATTENZIONE: accertarsi che la versione FW della centrale sia quella indicata o successiva, la sola presenza del connettore non signica che B74/BCONNECT sia gestito
ATTENTION: make sure that the FW version of the control unit is the one indicated or later, the mere presence of the connector does not mean that B74/BCONNECT is
managed

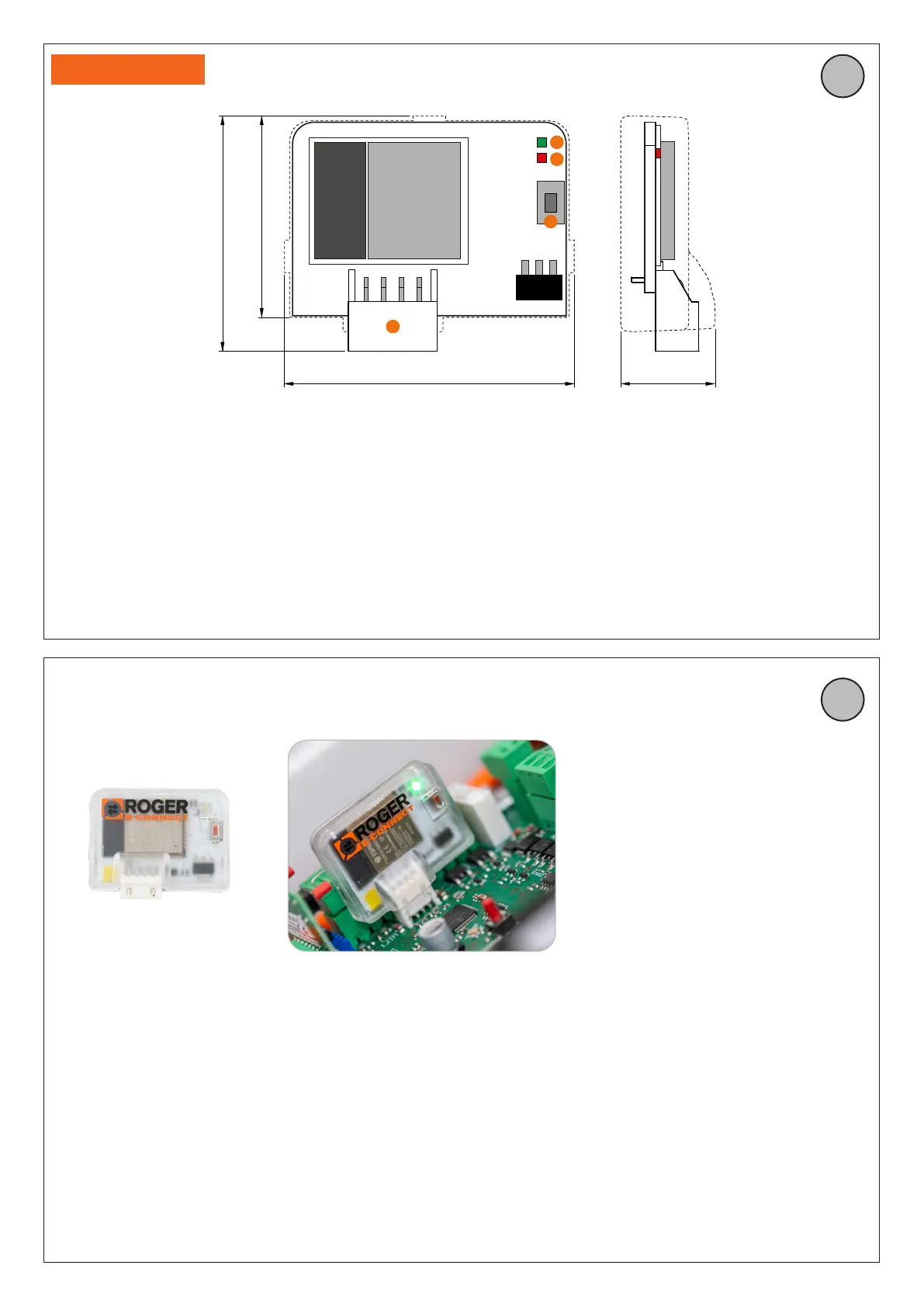

CONNESSIONE DEL B74/BCONNECT AI CONTROLLER DIGITALI BRUSHLESS (esempio)
CONNECTING B74/BCONNECT TO BRUSHLESS DIGITAL CONTROLLER (example)
B70/1DC (a partire da / as of FW P2.30)
B70/1DCHP (a partire da / as of FW P2.30)
B70/1T (a partire da / as of FW r1.00)
B70/1THP (a partire da / as of FW r1.00)
B70/2ML (a partire da / as of FW P1.05)
EDGE1 (a partire da / as of FW P4.30)
F70/IPU36 (a partire da / as of FW R1.50)
CTRL (a partire da / as of FW P4.30)
