Preparing Door Lock for
Installation
The lock is packed representative of how it will install on the door. Before installing
the lock on the door:
1. Inside Latch Side

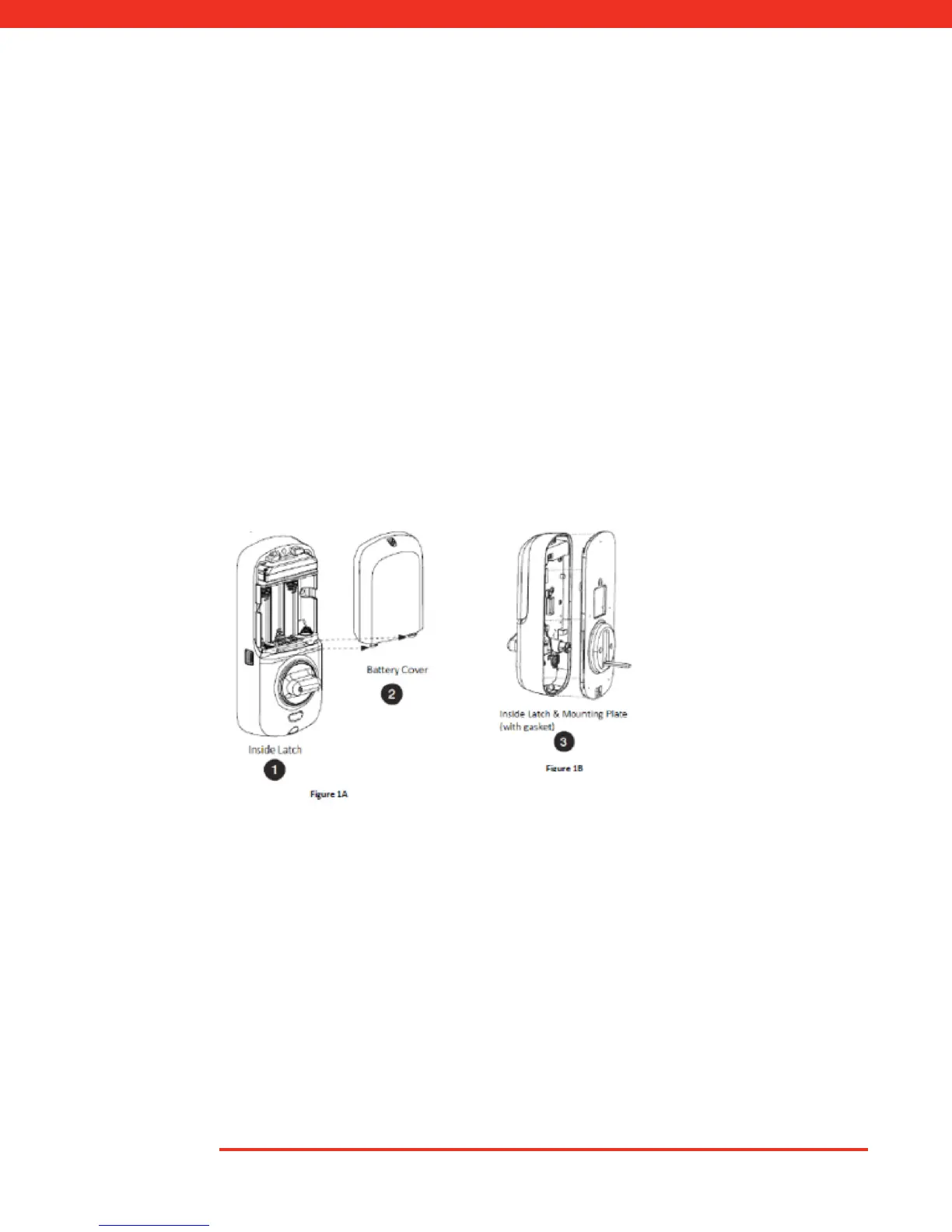

› Loosen the screw (Phillips #2) holding the battery cover.
› Slide the battery cover up and out (note the two tabs at bottom of battery cover).
(Fig. 1A).
› Remove the inside mounting plate (with gasket) from back (door side) of the inside
latch (Fig. 1B).
