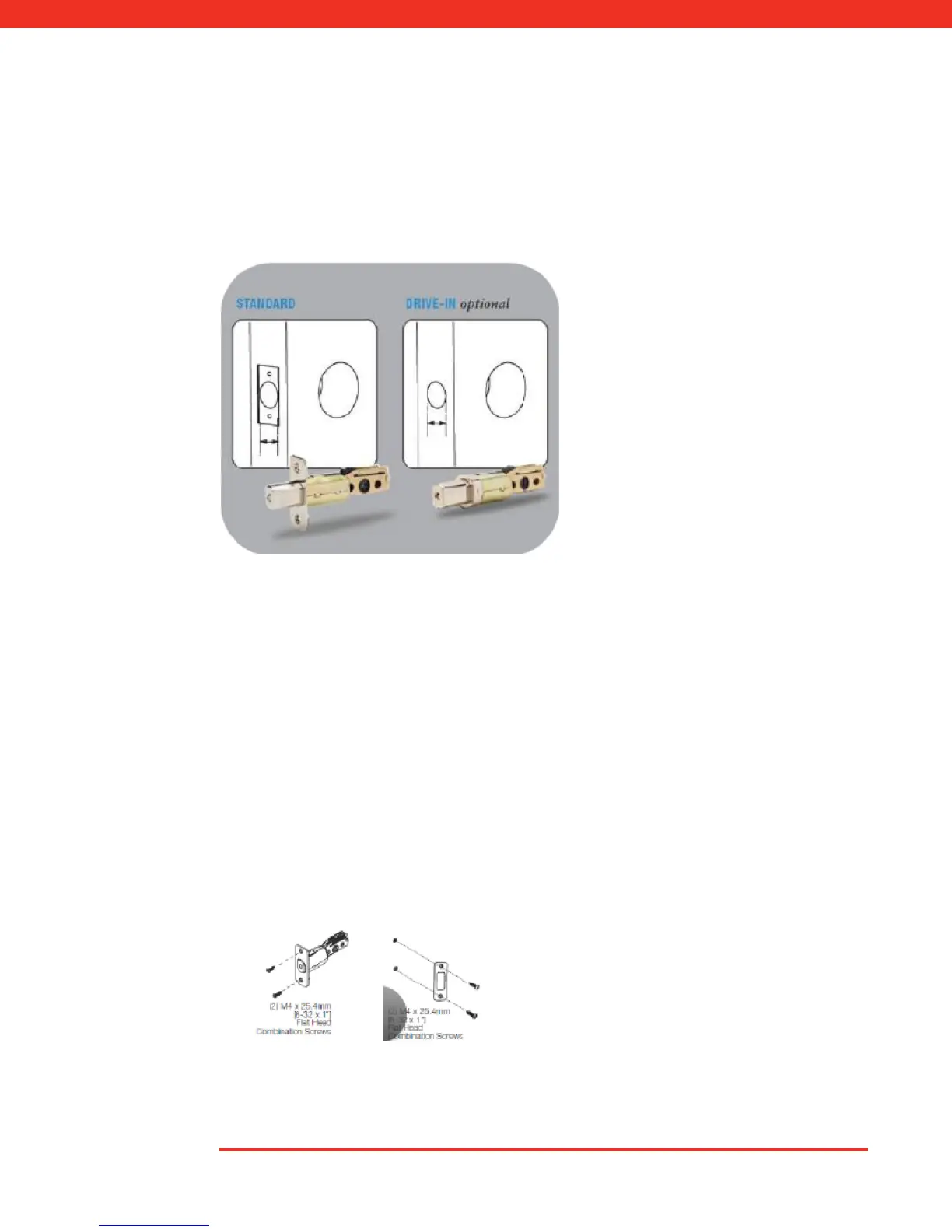

There are two latch options:
1. When inserting the deadbolt into the door make sure it is inserted with the up arrow
pointed upwards.
2. Install deadbolt in door. Note: the deadbolt must be in a retracted (unlocked) position
when installing the lockset. For the standard Yale deadbolt, secure bolt to door with
two (2) M4 x 25.4mm [8-32 x 1"] screws supplied.
3. Install strike on the door frame, making sure to allow for the bolt to be centred in the
strike. Secure strike to frame with two (2) M4 x 25.4mm [8-32 x 1"] screws supplied.
Choosing Latch Type
› For doors with a pre-existing notch for the faceplate, the standard Yale deadbolt
can be used.
› For doors with only the deadbolt bore hole, use the drive-in latch.
