4 Instrument tour
4.1 Front view
Figure 4-1 shows the front panel of the R&S RTA4000. The function keys are
grouped in functional blocks to the right of the display.

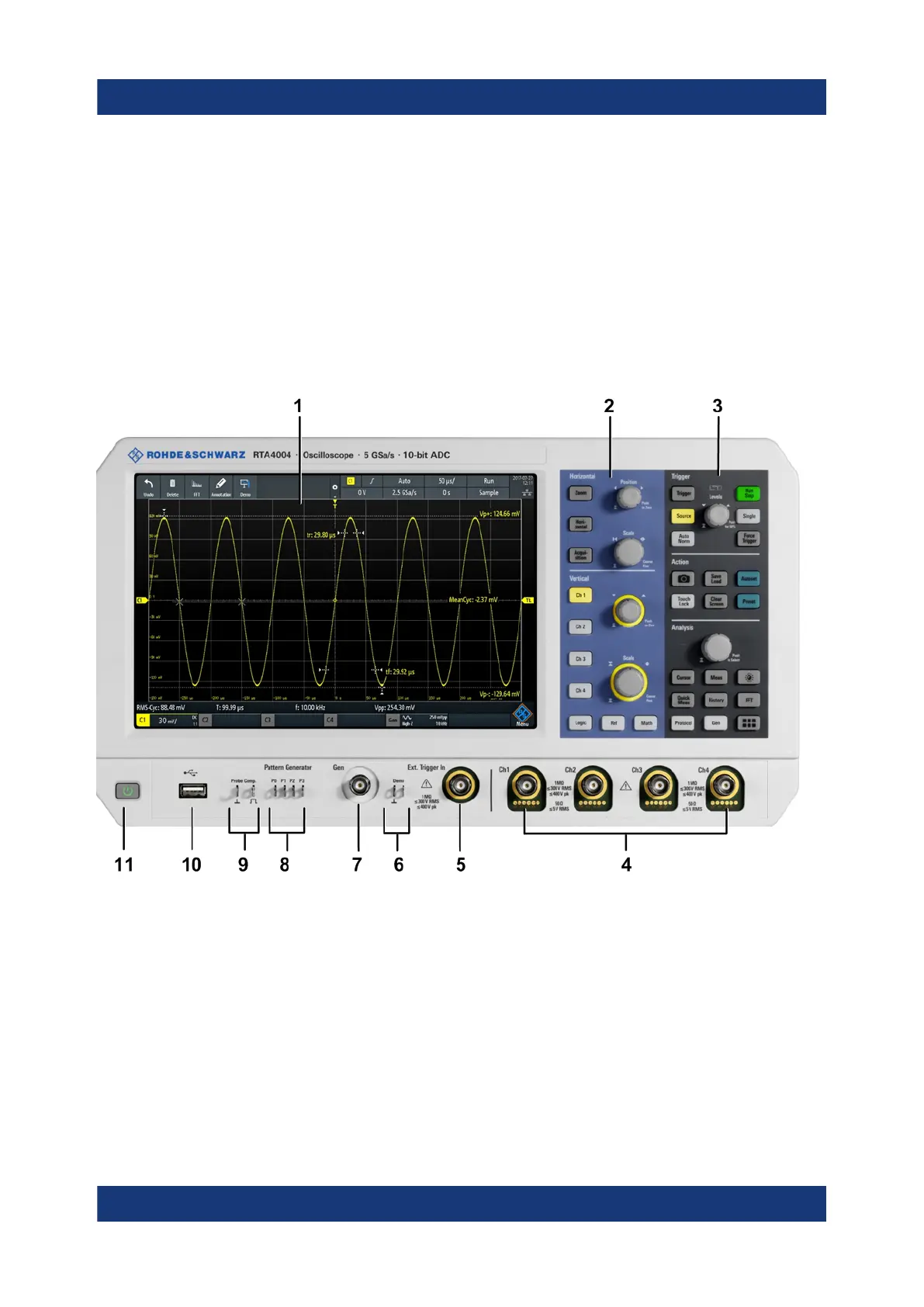

Figure 4-1: Front panel of R&S RTA4000 with 4 input channels
1 = Display
2 = Horizontal and vertical setup controls
3 = Trigger settings, action and analysis controls
4 = Analog input channels (BNC)
5 = External trigger input
6 = Connectors for demo signal output
7 = Connector for optional function generator output (BNC, R&S RTA-B6)
8 = Connectors for optional pattern generator (R&S RTA-B6)
