5. On / off switch
6. 12 Volt positive terminal
7. 24 Volt positive terminal
8. Negative terminal
9. Fuse housing

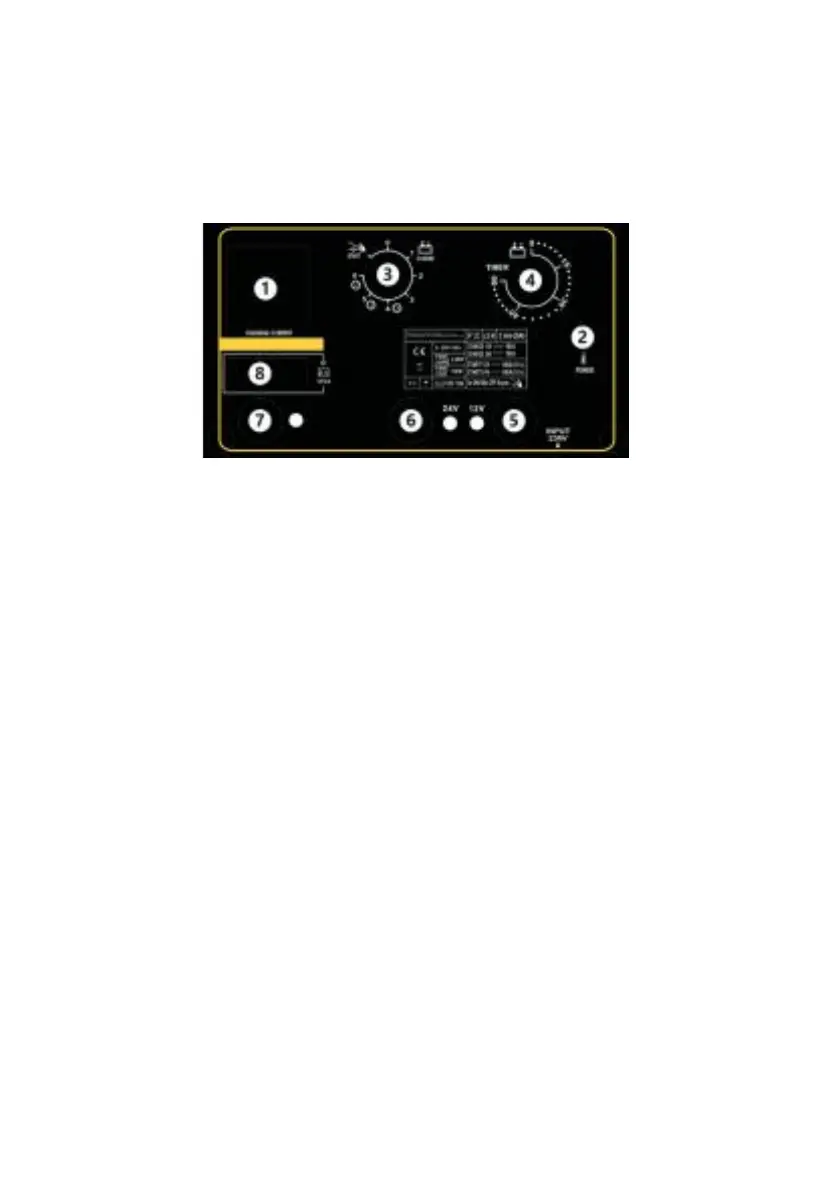

Fig.4 - Panel Controls for the DFC-650P
1. LCD Ammeter - displays current / load
2. Power indicator light
3. Operation dial - turn left for jump start function and turn right for charging
currents 4. Timer - used to control charging duration, must be used when
operation dial is at 4, 5 or 6. 5. 12 Volt positive terminal
6. 24 Volt positive terminal
7. Negative terminal
8. Fuse housing
