KEY TRANSPOSE
Soft Pedal Damper Pedal
INPUT
OUTPUT
TUNE. LEVEL [ STEREO 4 ij STEREO 1
MONO MONO
L L
O.m6©
6
0
Oo
LEVEL
HM OL
Cm
Keyboard Amp.
Audio Amp.
Recording Unit
P.A. Mixer
Guitar Amp.

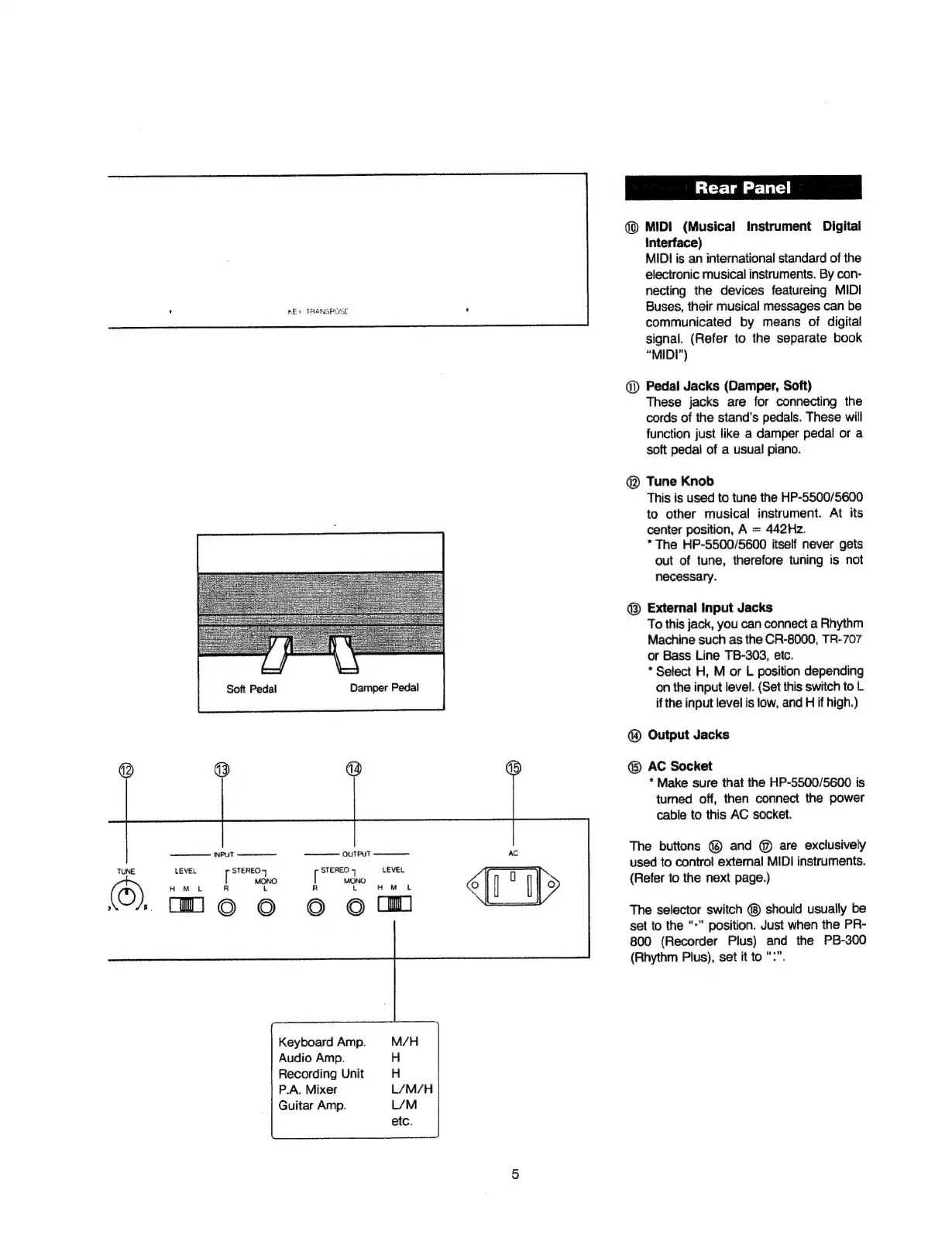

Rear Panel
@ MIDI (Musical Instrument Digital
Interface)
MIDI is an international standard of the
electronic musical instruments. By con-
necting the devices featureing MIDI
Buses, their musical messages can be
communicated by means of digital
signal. (Refer to the separate book
“MIDI")
@ Pedal Jacks (Damper, Soft)
These jacks are for connecting the
cords of the stand’s pedals. These will
function just like a damper pedal or a
soft pedal of a usual piano.
@ Tune Knob
This is used to tune the HP-5500/5600
to other musical instrument. At its
center position, A = 442Hz.
* The HP-5500/5600 itself never gets
out of tune, therefore tuning is not
necessary.
® External Input Jacks
To this jack, you can connect a Rhythm
Machine such as the CR-8000, TR-707
or Bass Line TB-303, etc.
* Select H, M or L position depending
on the input level. (Set this switch to L
if the input level is low, and H if high.)
@® Output Jacks
® AC Socket
* Make sure that the HP-5500/5600 is
turned off, then connect the power
cable to this AC socket.
The buttons @ and @ are exclusively
used to control external MIDI instrurnents.
(Refer to the next page.)
The selector switch @ should usually be
set to the “-” position. Just when the PR-
800 (Recorder Plus) and the PB-300
(Rhythm Plus), set it to “:”.
