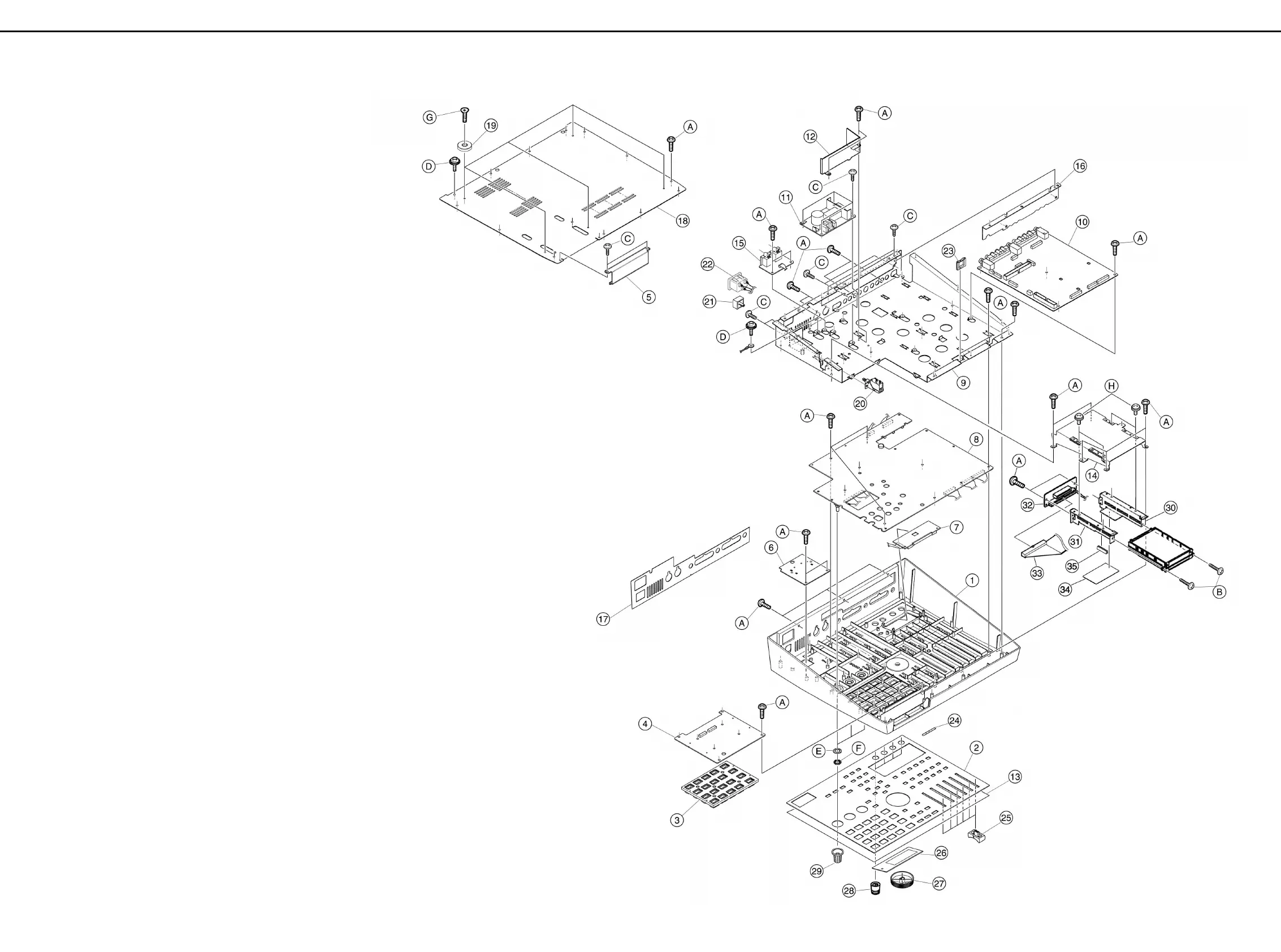

EXPLODED VIEW (A-6)
Oct, 1998
[PARTS]
No. PART No. PART NAME
q 01562089 TOP CASE
w 01562145 TOP PANEL
e 01562167 RUBBER SW
r 71016045 SWITCH BOARD
t 01562178 HD COVER
y 71124723 BEAM BOARD
u 01348490 LCD UNIT RCM6038T-A
i 70909012 PANEL BOARD
o 01348501 SUB CHASSIS
!0 71127056 MAIN BOARD
!1 01127590 SWITCHING REGULATOR A1KW1AA240
!2 01458678 SHIELD PANEL
!3 01670223 (JAPAN ONLY)
!4 01457178 HD HOLDER
!5 71016034 MIDI BOARD
!6 01562101 EXP COVER
!7 01562134 REAR PANEL
!8 01348590 BOTTOM COVER
!9 22355160 FOOT D25
@0 13129139 AC PUSH SWITCH SDDLB1-A-D-2 TV-5 5A/250V
@1 22495565 BUTTON F S-BUTTON MX BLK
@2 01458878 WIRING AC ASSY
@3 00902790 BUSHING EDS-1208U for AC CORD
@4 17048436 STATUS SEAL 04484-202
@5 01349423 KNOB U S-KNOB M1 LCG/DCG (TRACK)
01569801 KNOB U S-KNOB M1 BLU/LCG (PAD)
01349434 KNOB U S-KNOB M1 MRD/LCG (MASTER)
@6 01562090 DISPLAY COVER
@7 00677223 KNOB D R-KNOB L MCG (VALUE)
@8 01347301 KNOB P R-KNOB SF-A MWG/LCG
@9 01562123 KNOB J R-KNOB MF MCG/LCG (EFFECTS)
#0 00897812 ANGLE HD-R
#1 00897823 ANGLE HD-L
#2 71124767 CONNECTOR BOARD
#3 01562078 WIRING HDD-A
#4 01673867 HD SHEET
#5
********
EDGING CE-012 L=20
[SCREW]
A 40011101 M3x8 Binding Taptight B BZC
B 40015956 M3x12 Binding Taptight S BZC
C 40012534 M3x6 Binding Taptight S BZC
D
********
M4x8 LO2 BZC
E
********
M9 SPACER INNER GEAR TYPE
F
********
M9 NUT THIN TYPE
G 40011156 M3x8 Flat Taptight B BZC
H 40012945 M3x6 Pan Machine Screw W/SW+PW BZC
