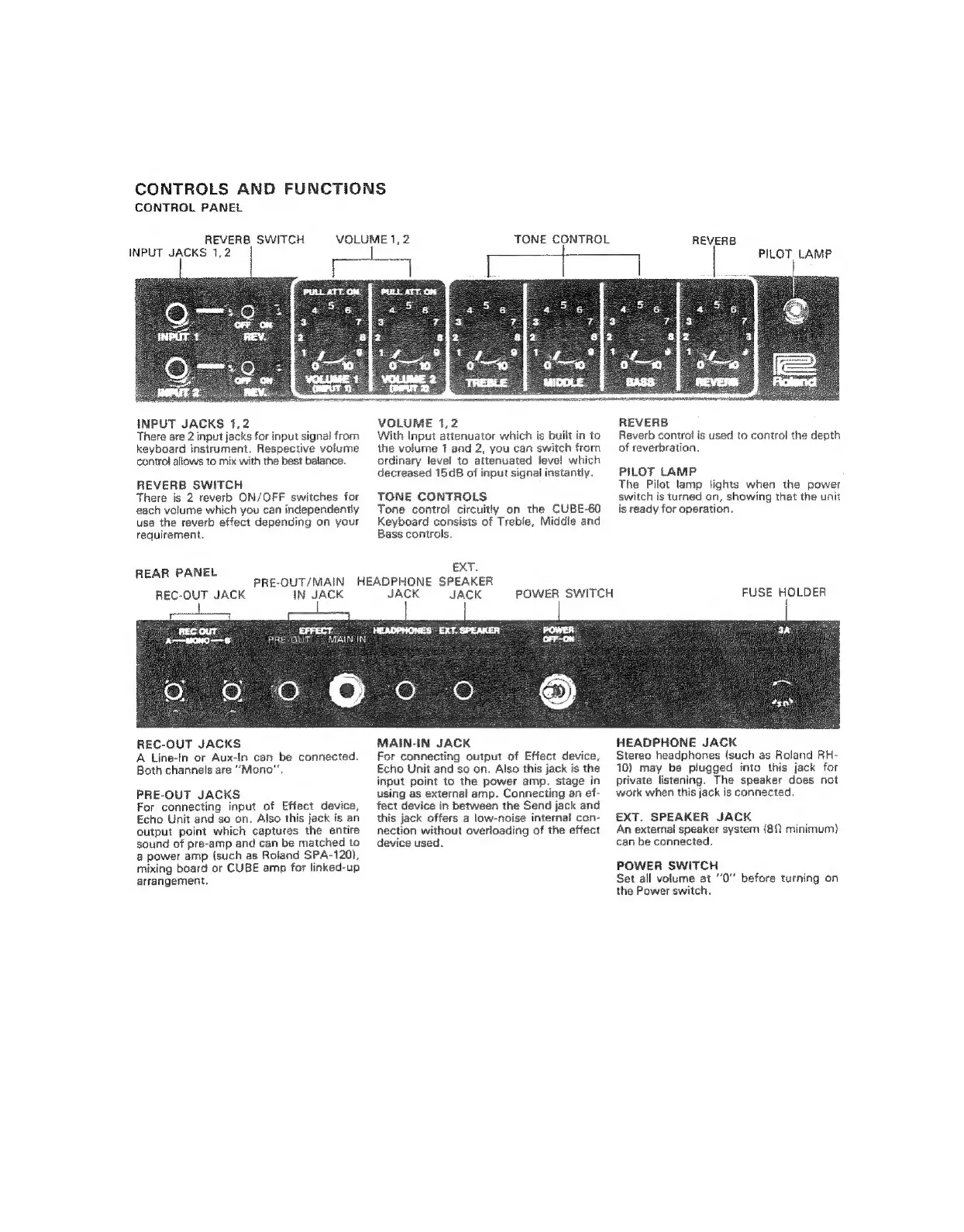

CONTROLS AND FUNCTIONS
CONTROL PANEL
REVERB SWITCH
INPUT JACKS 1,2
INPUT JACKS 1,2
There are 2 input jacks for input signal from
keyboard instrument. Respective volume
contro} allows to mix with the best balance.
REVERB SWITCH
There is 2 reverb ON/OFF switches for
each volume which you can independently
use the reverb effect depending on your
requirement.
REAR PANEL
REC-OUT JACK iN SiGe
| PRE-OUT:
VOLUME 1, 2
PRE-OUT/MAIN HEADPHONE SPEAKER
MAIN IN
VOLUME 1,2
With Input attenuator which is built in to
the volume 7 and 2, you can switch from
ordinary level to attenuated level which
decreased 15d8 of input signal instantly.
TONE CONTROLS
Tone contro} circuitly on the CUBE-60
Keyboard consists of Treble, Middle and
Bass controls.
EXT.
JACK JACK
>o © Ooo
REC-OUT JACKS
A Line-In or Aux-in can be connected.
Both channels are “Mono”.
PRE-OUT JACKS
For connecting input of Effect device,
Echo Unit and so on. Also this jack is an
output point which captures the entire
sound of pre-amp and can be matched to
a power amp (such as Roland SPA-120},
mixing board or CUBE amp for linked-up
arrangement.
MAIN-IN JACK
For connecting output of Effect device,
Echo Unit and so on. Also this jack is the
input point to the power amp. stage in
using as external amp. Connecting an ef-
fect device in between the Send jack and
this jack offers a low-noise internal con-
nection without overloading of the effect
device used.
TONE CONTROL
POWER SWITCH
REVERB
| PILOT LAMP
REVERB
Reverb control is used to control the depth
of reverbration.
PILOT LAMP
The Pilot lamp lights when the power
switch is turned on, showing that the unit
is ready for operation.
FUSE HOLDER
HEADPHONE JACK
Stereo headphones (such as Roland RH-
10) may be plugged into this jack for
private listening. The speaker does not
work when this jack is connected.
EXT. SPEAKER JACK
An extemal speaker system {8N minimum)
can be connected,
POWER SWITCH
Set all volume at “0” before turning on
the Power switch.
