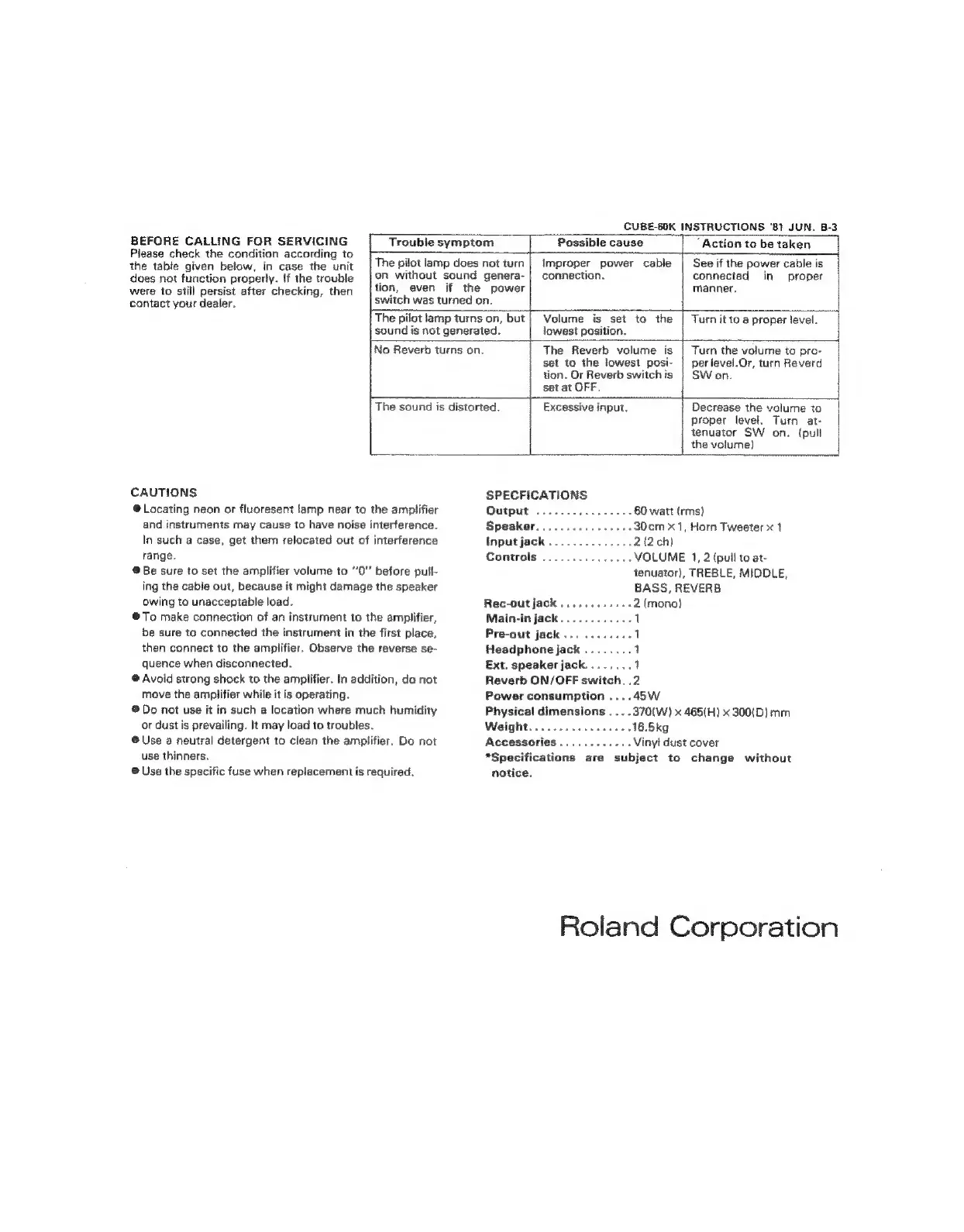

CUBE-60K INSTRUCTIONS '81 JUN. B-3
Possible cause T “Action to be taken
BEFORE CALLING FOR SERVICING
Please check the condition according to = =
the table given below, in case the unit The pilot lamp does not turn | Improper power cable See if the power cable is
does not function properly. If the trouble |On without sound genera-| connection. connected in proper
were to still persist after checking, then jtion, even if the power manner.
contact your dealer. switch was turned on.
The pilot lamp turns on, but | Volume is set to the | Turn itto a proper level.
sound is not generated. lowest position.
Trouble symptom
The Reverb volume is | Turn the volume to pro-
set to the lowest posi- | perlevel.Or, turn Reverd
tion. Or Reverb switchis | SW on.
setat OFF.
Excessive input,
[No Reverb turns on.
Decrease the volume to
proper level. Turn at-
tenuator SW on. (pull
The sound is distorted.
the volume)
CAUTIONS SPECFICATIONS
® Locating neon or fluoresent lamp near to the amplifier Output ... 60 watt (rms)
and instruments may cause to have noise interference. Speaker. .-. 30cm x 1, Horn Tweeter x 1
In such a case, get them relocated out of interference Input jack . -2 {2 ch)
range. Controls onary banci irka VOLUME 1, 2 {pull to at-
@ Be sure to set the amplifier volume to "0" before pull- tenuator), TREBLE, MIDDLE,
ing the cable out, because it might damage the speaker BASS, REVERB
owing to unacceptable load. Rec-outjack............ 2 (mono}
®To make connection of an instrument to the amplifier, Main-in jack..
be sure to connected the instrument in the first place, Pre-out jack...
then connect to the amplifier, Observe the reverse se-
quence when disconnected.
® Avoid strong shock to the amplifier. In addition, do not
move the amplifier while it is operating.
@ Do not use it in such a location where much humidity
or dust is prevailing. It may load to troubles.
® Use a neutral detergent to clean the amplifier. Do not
use thinners.
® Use the specific fuse when replacement is required.
Headphone jack ..
Ext. speaker jack. . 7
Reverb ON/OFF switch. .2
Power consumption ....45W
Physical dimensions . . . .370(W) x 465(H) x 300(D) mm
Weight. 16.5kg
Accessories. . Vinyl dust cover
*Specifications are subject to change without
notice.
Roland Corporation

Roland Cube-60 Specifications

General

Power Output	60 watts
Speaker Size	12 inches
Effects	Reverb, Delay, Chorus, Flanger, Phaser, Tremolo
Equalizer	3-band (Bass, Middle, Treble)
Type	Guitar Amplifier
Technology	Solid-state
Outputs	Line out
Inputs	1/4" Instrument Input, Auxiliary Input
