Roland EXR-5 User Manual

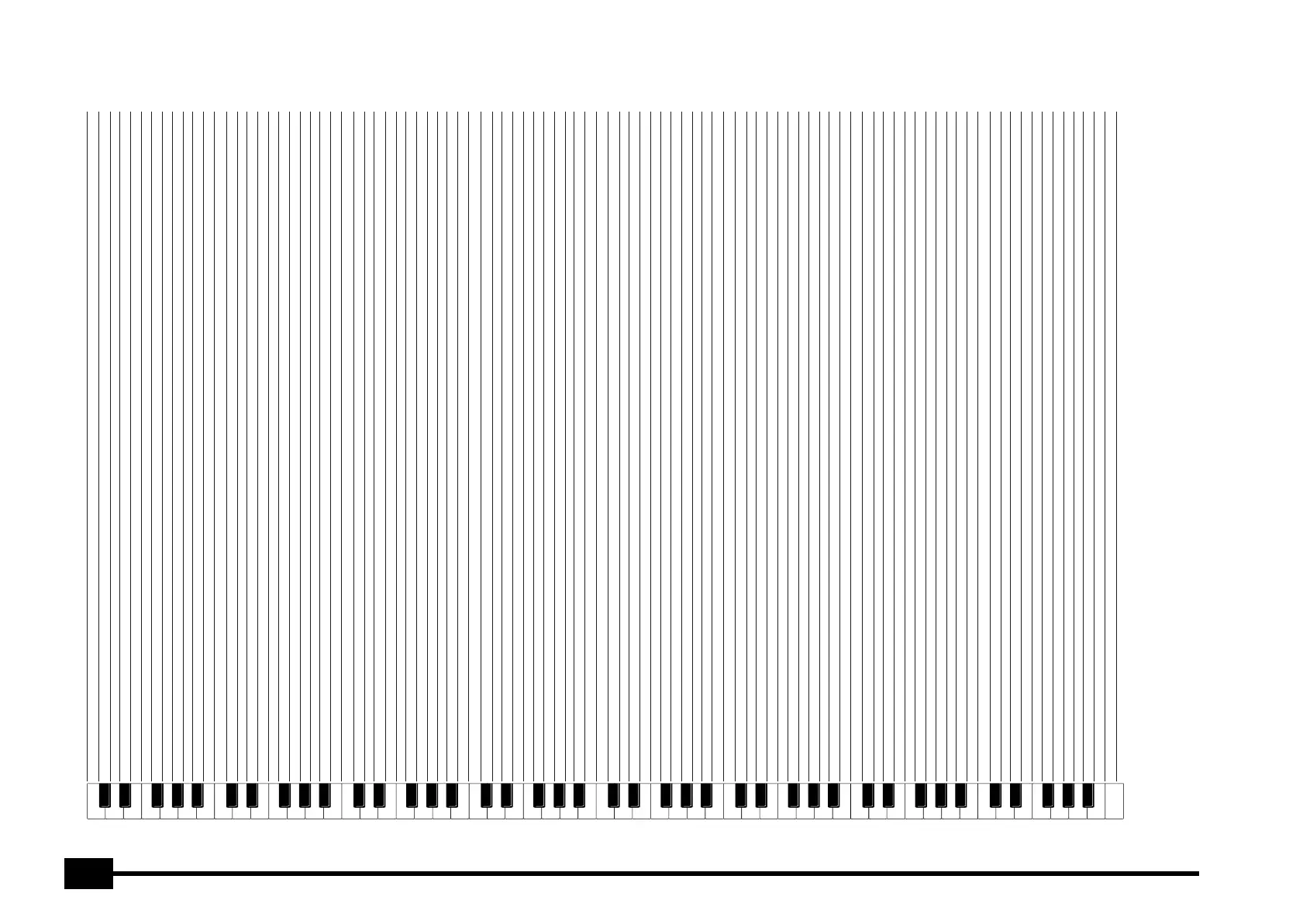

r EXR-5/EXR-3
128
C2 36
38 40 41 43 45 47
37 39 42 44 46
C3 48
50 52 53 55 57 59
49 51 54 56 58
C4 60
62 64 65 67 69 71
61 63 66 68 70
C5 72
74 76 77 79 81 83
73 75 78 80 82
C6 84 C7 96
86 88 89 91 93 95
85 87 90 92 94
C0 12
14 16 17 19 21 23
13 15 18 20 22
C–1 0
2 4 5 7 9 11
1 3 6 8 10
C1 24
26 28 29 31 33 35
25 27 30 32 34
PC: 26 [CC32: 2] TR-808/909 ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ Snare Roll Finger Snap High-Q Slap Scrtch Push2 Scrtch Pull2 Sticks SquareClick Mtrnm.Click Mtrnm. Bell TR-909 Kick TR-808 Kick 808 Rimshot 808 Snare 1 808clap 909 Snare 1 808 Tom 2 808__chh 808 Tom 2 808__chh 808 Tom 2 808__ohh 808 Tom 2 808 Tom 2 808 Crash 808 Tom 2 Ride Cymbal China Cymbal Ride Bell Tambourine Splash Cym. 808cowbe Crash Cym.2 Vibraslap Ride Cymbal Bongo High Bongo Lo 808 Conga 808 Conga 808 Conga High Timbale Low Timbale Agogo Agogo Cabasa 808marac ShrtWhistle LongWhistle Short Guiro Long Guiro 808clave Woodblock Woodblock Mute Cuica Open Cuica Mute Triangl Open Triangl Shaker Jingle Bell Bell Tree Castanets Mute Surdo Open Surdo ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
PC: 27 [CC32: 2] DANCE ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ Snare Roll Finger Snap High-Q Slap Scrtch Push2 Scrtch Pull2 Sticks SquareClick Mtrnm.Click Mtrnm. Bell Dance Kick 2 Elec Kick 2 Side Stick Power Snare2 808clap Elec Snare 1 Synth Drum 2 CR-78 chh Synth Drum 2 808__chh Synth Drum 2 CR-78 ohh Synth Drum 2 Synth Drum 2 Crash Cym.1 Synth Drum 2 Ride Cymbal ReverseCymbl Ride Bell Tambourine Splash Cym. Cowbell Crash Cym.2 Vibraslap Ride Cymbal Bongo High Bongo Lo Mute H.Conga Conga Hi Opn Conga Lo Opn High Timbale Low Timbale Agogo Agogo Cabasa Maracas ShrtWhistle LongWhistle Short Guiro Long Guiro Claves Woodblock Woodblock Hoo Hoo Mute Triangl Open Triangl Shaker Jingle Bell Bell Tree Castanets Mute Surdo Open Surdo ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
PC: 31 [CC32: 2] New TR-909 ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ 909 Kick 3 House Kick TR-808 Kick HipHop Kick SimpleKick TR-909 OHHsh TR-909 OHH Ah Ha ShutHa ShutHi One Two Three Four Snare Roll Snap High-Q Slap Scrtch Push2 Scrtch Pull2 Sticks SquareClick Mtrnm.Click Mtrnm. Bell 909 Kick 909 Kick2 Side Stick 909 Snare 909Clap 909Snare2 808 Tom 2 TR-909 CHH 808 Tom 2 TR-909 CHH 808 Tom 2 TR-909 OHH 808 Tom 2 808 Tom 2 909 Crash 808 Tom 2 Ride Cymbal China Cymbal Ride Bell Tambourine Splash Cym. 808cowbe Crash Cym.2 Vibraslap Ride Cymbal Bongo High Bongo Lo 808 Conga 808 Conga 808 Conga High Timbale Low Timbale Agogo Agogo Cabasa 808marac ShrtWhistle LongWhistle Short Guiro Long Guiro 808clave Woodblock Woodblock Mute Cuica Open Cuica Mute Triangl Open Triangl Shaker Jingle Bell Bell Tree Castanets Mute Surdo Open Surdo ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
PC: 33 [CC32: 2] Jazz Kit ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ Snare Roll Finger Snap High-Q Slap ScratchPush ScratchPull Sticks SquareClick Mtrnm.Click Mtrnm. Bell Jazz Kick 2 Jazz Kick 1 Side Stick Jazz Snare 1 Hand clap2 Jazz Snare Real Tom 6 Jazz Clsd.HH Real Tom 6 Jazz Pedl.HH Real Tom 4 Jazz Open HH Real Tom 4 Real Tom 1 Crash Cym.1 Real Tom 1 Ride Cymbal China Cymbal Ride Bell Tambourine Splash Cym. Cowbell Crash Cym.2 Vibraslap Ride Cymbal Bongo High Bongo Lo Mute H.Conga Conga Hi Opn Conga Lo Opn High Timbale Low Timbale Agogo Agogo Cabasa Maracas ShrtWhistle LongWhistle Short Guiro Long Guiro Claves Woodblock Woodblock Mute Cuica Open Cuica Mute Triangl Open Triangl Shaker Jingle Bell Bell Tree Castanets Mute Surdo Open Surdo ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
PC: 34 [CC32: 2] JAZZ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ Snare Roll Finger Snap High-Q Slap ScratchPush ScratchPull Sticks SquareClick Mtrnm.Click Mtrnm. Bell Jazz Kick 2 Jazz Kick 1 Side Stick Jazz Snare 1 Hand clap2 Jazz Snare 2 Real Tom 6 Jazz Clsd.HH Real Tom 6 Pedal HiHat Real Tom 4 Jazz Open HH Real Tom 4 Real Tom 1 Crash Cym.1 Real Tom 1 Ride Cymbal China Cymbal Ride Bell Tambourine Splash Cym. Cowbell Crash Cym.2 Vibraslap Ride Cymbal Bongo High Bongo Lo Mute H.Conga Conga Hi Opn Conga Lo Opn High Timbale Low Timbale Agogo Agogo Cabasa Maracas ShrtWhistle LongWhistle Short Guiro Long Guiro Claves Woodblock Woodblock Mute Cuica Open Cuica Mute Triangl Open Triangl Shaker Jingle Bell Bell Tree Castanets Mute Surdo Open Surdo ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
PC: 41 [CC32: 2] BRUSH ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ Snare Roll Finger Snap High-Q Slap ScratchPush ScratchPull Sticks SquareClick Mtrnm.Click Mtrnm. Bell Jazz Kick 2 Jazz Kick 1 Side Stick Brush Swirl Brush Slap1 Brush Swirl Lite Tom 4 Brs Chh Lite Tom 4 Pedal HiHat Lite Tom 4 Brush Ohh Lite Tom 4 Lite Tom 4 Brush Crash Lite Tom 4 Brush Ride China Cymbal Brush RideBL Tambourine Splash Cym. Cowbell Crash Cym.2 Vibraslap Ride Cymbal Bongo High Bongo Lo Mute H.Conga Conga Hi Opn Conga Lo Opn High Timbale Low Timbale Agogo Agogo Cabasa Maracas ShrtWhistle LongWhistle Short Guiro Long Guiro Claves Woodblock Woodblock Mute Cuica Open Cuica Mute Triangl Open Triangl Shaker Jingle Bell Bell Tree Castanets Mute Surdo Open Surdo ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
PC: 49 [CC32: 2] ORCHESTRA ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ Snare Roll Finger Snap Jazz Clsd.HH Pedal HiHat Jazz Open HH Ride Cymbal Sticks SquareClick Mtrnm.Click Mtrnm. Bell Jazz Kick 1 Concert BD Side Stick Concert Snr Castanets Concert Snr Timpani Timpani Timpani Timpani Timpani Timpani Timpani Timpani Timpani Timpani Timpani Timpani Timpani Tambourine Splash Cym. Cowbell Con.Cymbal2 Vibraslap Concert Cym. Bongo High Bongo Lo Mute H.Conga Conga Hi Opn Conga Lo Opn High Timbale Low Timbale Agogo Agogo Cabasa Maracas ShrtWhistle LongWhistle Short Guiro Long Guiro Claves Woodblock Woodblock Mute Cuica Open Cuica Mute Triangl Open Triangl Shaker Jingle Bell Bell Tree Castanets Mute Surdo Open Surdo Applause ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
PC: 50 [CC32: 2] ETHNIC ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ Finger Snap Tambourine Castanets Crash Cym.1 Snare Roll Concert Snr Concert Cym. Concert BD Jingle Bell Bell Tree Bar Chimes Wadaiko Wadaiko Rim Shimedaiko Atarigane Hyoushigi Ohkawa H kotsuzumi L Kotsuzumi Ban_Gu Big Gong Small Gong Bend Gong RAMA Cymbal RAMA Cymbal Gamelan Gong Udo_Short Udo_Long Udo_slap Bendir Req_Dum Req_tik Tabla_Te Tabla_Na Tabla_Tun Tabla_Ge Tabla Ge Hi Talking Drum Bend tlk_drm Caxixi DJembe Djembe_rim Low Timbale Timbl Paila High Timbale Cowbell Bongo High Bongo Lo Mute H.Conga Conga Hi Opn Conga MtLow Conga Slap Conga Lo Opn Conga Slide Mut Pandiero Opn Pandiero Open Surdo Mute Surdo Tamborim Agogo Agogo Shaker Low Whistle Low Whistle Mute Cuica Open Cuica Mute Triangl Open Triangl Short Guiro Long Guiro Cabasa Up Cabasa Down
PC: 51 [CC32: 2] KICK & SNARE ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ Std.1 Kick1 Std.1 Kick2 Std.2 Kick1 Std2 Kick2 Kick 1 Kick 2 Soft Kick Jazz Kick 1 Jazz Kick 2 Concert BD Room Kick 1 Room Kick 2 Power Kick1 Power Kick2 Elec Kick 2 Elec Kick 1 Elec. Kick TR-808 Kick TR-909 Kick Dance Kick 2 Std.1 Snare1 Std.1 Snare2 Std.2 Snare1 Std.2 Snare2 Tight Snare Concert Snr Jazz Snare 1 Jazz Snare 2 Room Snare 1 Room Snare 2 Dance Snare1 Power Snare1 Rev.Snare Power Snare2 Elec Snare 1 Dance Snare2 Elec Snare 2 House Snare Elec. Snare Elec Snare 3 808 Snare 1 808 Snare 2 909 Snare 1 909 Snare 2 Brush Swirl Brush Tap Brush Slap1 Brush Slap2 Brush Slap Brush Swirl Brush Swirl Long Swirl ------------ ------------ ------------ ------------ ------------
PC: 57 [CC32: 2] SFX ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ Scrtch Push2 Scrtch Pull2 Gt.CutNoise2 Gt.CutNoise2 Dist.CutNoiz Dist.CutNoiz Bass Slide Pick Scrape High-Q Slap ScratchPush ScratchPull Sticks SquareClick Mtrnm.Click Mtrnm. Bell Gt.FretNoise Gt.Cut Noise Gt.Cut Noise String Slap Fl.KeyClick Laughing Screaming Punch Heart Beat Footsteps Footsteps Applause DoorCreaking Door Scratch Wind Chimes Car-Engine Car-Stop Car-Pass Car-Crash Siren Train Jetplane Helicopter Starship Gun Shot Machine Gun Lasergun Explosion Dog Horse-Gallop Bird Rain Thunder Wind Seashore Stream Bubble Kitty Bird 2 Growl Applause 2 Telephone 1 Telephone 2 ------------ ------------ ------------ ------------ ------------ ------------
EXR-5_3_GBEF Page 128 Thursday, October 30, 2003 2:00 PM

Roland EXR-5 Specifications

General

Polyphony	64 voices
Speakers	12 cm x 2
Keyboard	61 keys (with velocity)
Drum Kits	20 drum kits
Effects	Reverb, Chorus
Connectors	MIDI In/Out
Power Supply	AC Adaptor
