Roland FA-06 Service Notes

5
Feb. 2014 FA-06

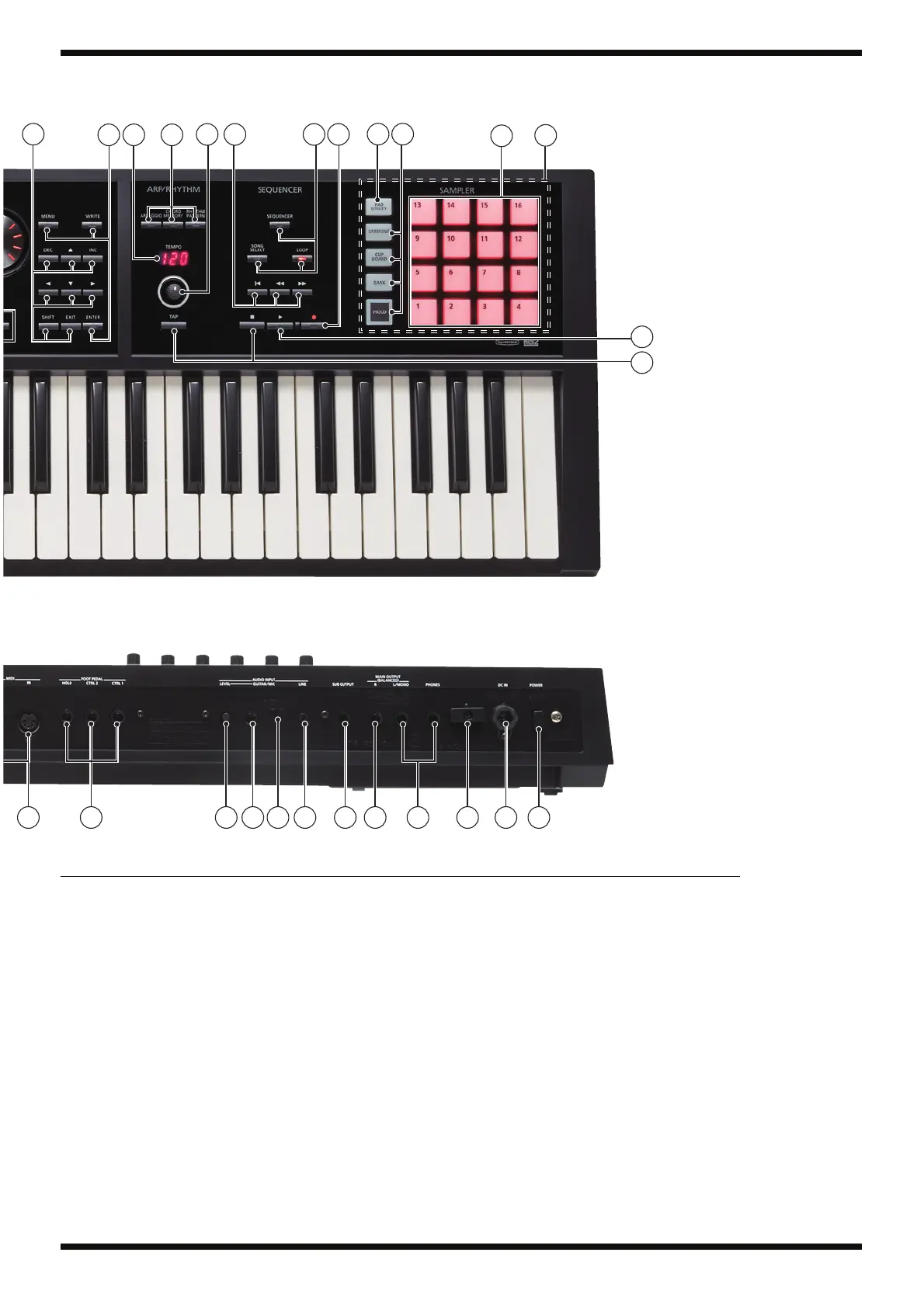

fig.panel-FA06.eps@R
27 22 2223 2425 22 23 21 20 1926
13
12
17
5
15
98
14
16
10
9
10 119
No. Part Code Part Name Description Q’ty
13 5100035723 ZS S-KEYTOP LX1H BLK 2
02781634 TACT SWITCH SKRGAED010 2
14 5100035243 RUBBER SWITCH 1
15 5100036235 LED KPT-1608ZGC 1
16 5100010451 LED KPT-1608SURCK 4
17 5100036235 LED KPT-1608ZGC 16
5100010451 LED KPT-1608SURCK 16
18 5100033810 LCD UMSH-8385MD-1T 1
19 04904123 PUSH SWITCH AC POWER SUPPLY 400-07040-01-00(PWL-2P2T-6SBP 1
5100037825 G S-BUTTON BLK 1
20 13449720 DC JACK HEC2305-016250 1
5100009656 DC PLUG SUPPORTER 1
21 5100027106 CORD HOOK 40516-014 1
22 13449275 6.5MM JACK YKB21-5074 6
23 13449252 6.5MM JACK YKB21-5006 (STEREO W/SW) 2
24 04452945 3.5MM JACK YKB21-5344N 1
25 00230489 SLIDE SWITCH SSSF12351A 1
26 04901712 ROTARY POTENTIOMETER RK09K1110D4S 1
27 13429825 MIDI CONNECTOR YKF51-5054V 1
28 04459190 USB CONNECTOR A TYPE FEMALE YKF45-0033N 1
29 5100009531 USB CONNECTOR B TYPE FEMALE YKF45-0044N 1
30 04784856 CARD CONECTR AXA2R63361TJ 610-07014-08-00 1
5100038316 SD CARD LSD4GB-000-625 (BLANK) 1
5100013329 SD CARD PROTECTOR 750-09064-01-00 1

Roland FA-06 Specifications

General

Control type	Buttons
Backlight color	Red
Backlight buttons	Yes
MIDI-keyboard number of keys	61 keys
Display type	LCD
Display diagonal	5 \
Product color	Black
Sound effects	Acoustic resonance, Synthesizer
Interface	USB
Headphone outputs	1
USB ports quantity	2
Compatible memory cards	SDHC
6.35 mm (1⁄4-inch) output	3
Power source type	AC
Bit rate	16 bit
Product type	Digital synthesizer
Keyboard number of keys	61
Maximum polyphony (notes)	128
Reverberation effects quantity	6

Weight and Dimensions

Depth	300 mm
Width	1008 mm
Height	101 mm
Weight	5700 g
