Number
Area Name Explanation Page
7
SEQUENCER
[SEQUENCER] button Accesses the SEQUENCER screen.
p. 22
[SONG SELECT] button Selects a song.
p. 21
[LOOP] button Loops the song playback or overdubbing.
p. 21
[
] button
Moves the song position to the beginning. If you press this button during playback,
the position returns to the beginning of the song and playback stops.
p. 21
[
] [ ] buttons
Moves the song position to the rst beat of the previous/next measure.
[
] button
Stops song playback or recording.
[ ] button
Plays the song.
[
] button
Enters the record-standby state.
p. 22
8
SAMPLER
[PAD UTILITY] button
Displays the status of the samples, and lets you edit or import them.
Functions other than the sampler can also be assigned.
p. 19
[SAMPLING] button Lets you sample.
p. 20
[CLIP BOARD] button Lets you move or copy a sample from one pad to another.
p. 19
[BANK] button Switches the pad bank.
[HOLD] button Causes the sample to continue playing.
Pads [1]–[16] Play the samples assigned to each pad.
9
[VOLUME] knob Adjusts the volume that is output from the MAIN OUTPUT jacks and the PHONES jack.
p. 9
10
KEYBOARD
[DAW CONTROL] button Lets you use this unit as a DAW controller.
p. 25
[SPLIT] button Turns the split function on/o.
p. 12
[DUAL] button Turns the dual function on/o.
p. 12
[TRANSPOSE] button
Hold down this button and use the OCTAVE [DOWN] [UP] buttons to raise or lower
the pitch range in semitone steps.
p. 12
OCTAVE [DOWN] [UP] buttons Raise or lower the pitch range in steps of an octave.
p. 12
11
Controller
[S1] [S2] buttons
Various parameters or functions can be assigned to these buttons.
Hold down the [SHIFT] button and press one of these buttons to access a screen that
lets you assign a function.
p. 14
Pitch bend/modulation lever Varies the pitch or applies vibrato.
3 5 6 7 84

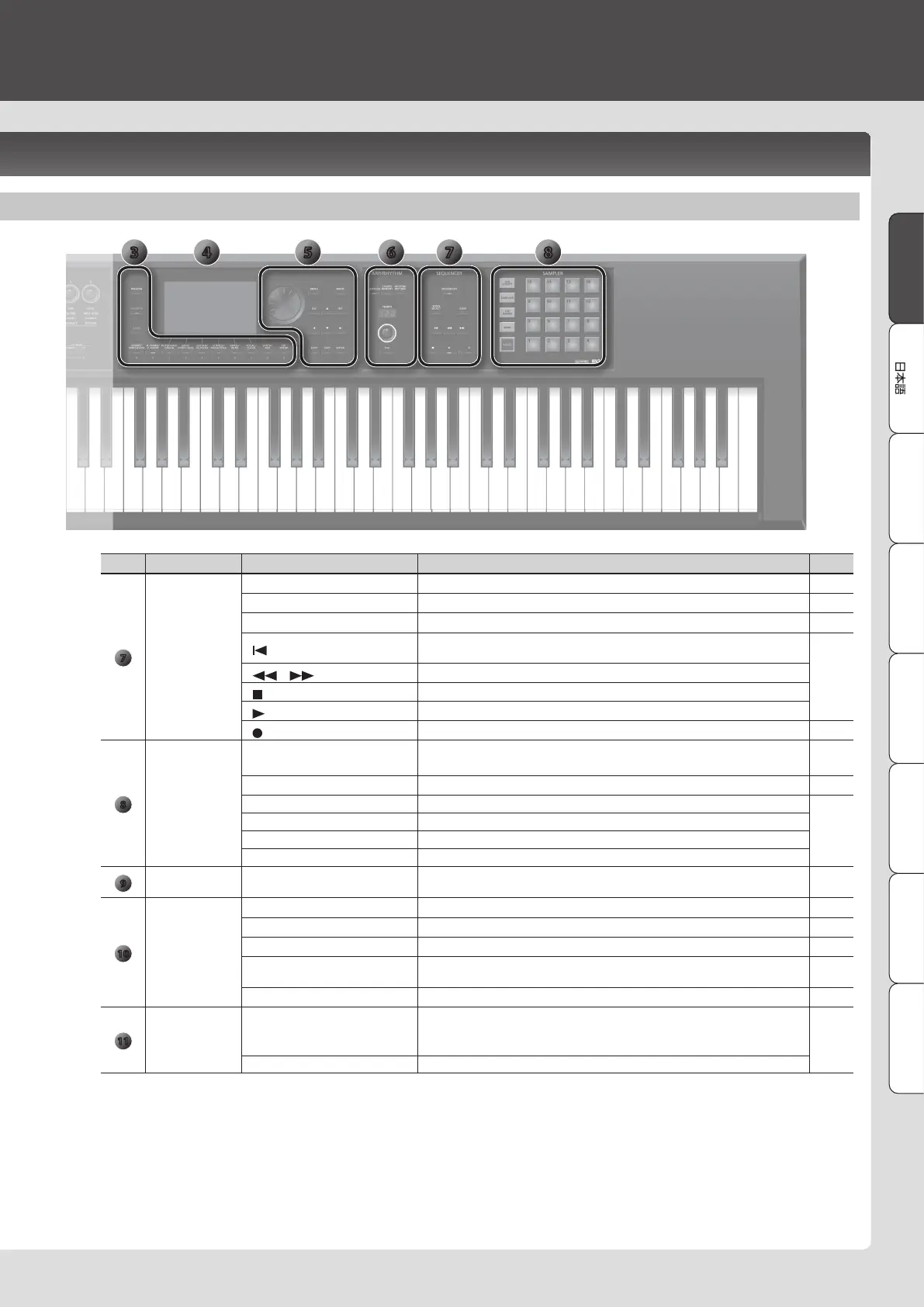

Panel Descriptions
Top Panel
5
