Roland GC-408S User Manual

5

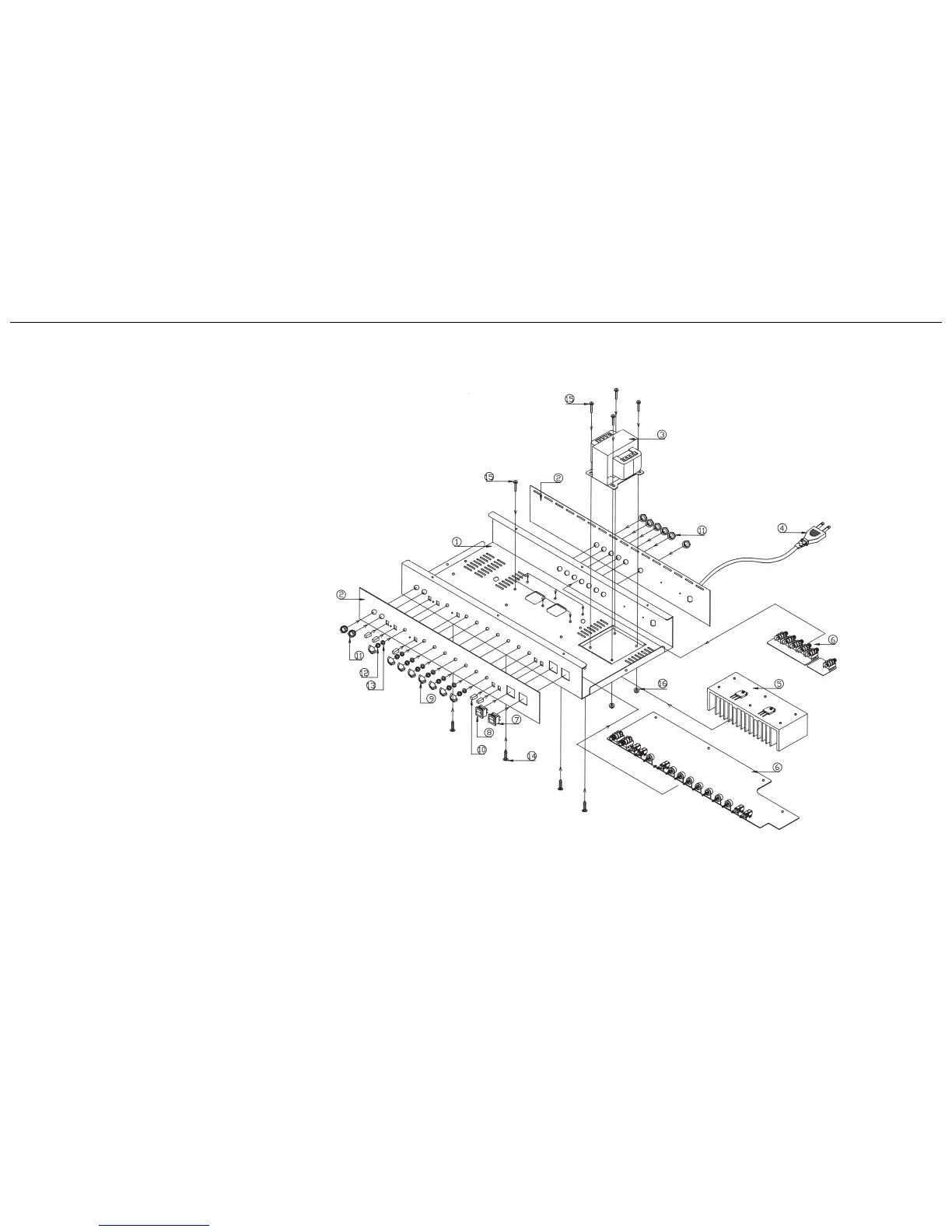

CHASSIS EXPLODED VIEW
[PARTS]
No. Part Cord Part Name
q SS000112 CHASSIS (FOR 100V/230V/230VE/240V VERSION)
SS000113 CHASSIS (FOR 117V VERSION)
w SS000141 PANEL(Front / Rear)
e SS000128 POWER TRANSFORMER GC-408J 100V
SS000129 POWER TRANSFORMER GC-408U 117V
SS000130 POWER TRANSFORMER GC-408ES 230V
SS000131 POWER TRANSFORMER GC-408S 240V
r SS000138 AC CORD 100V PHP209 VCTFK
SS000040 AC CORD 117V KKP30A/SJT
SS000035 AC CORD 230VD KKP4819R
SS000036 AC CORD 230VE SRS.III
SS000022 AC CORD 240V KKP550
t SS000162 HEAT SINK HS-15
y SS000133 PCB ASSY
u SS000021 AC SWITCH H8653VB
i SS000132 POWER SWITCH H8660VB
o SS000066 KNOB CNBB-09
!0 SS000065 BUTTON PNBB-18
!1 SS000055 NUT BK ABS JACK
!2 SS000060 NUT NA 6N-M7
!3 SS000058 WASHER NA PLATE 7ø
!4 SS000158 SUPPORT DABS 16R
!5 SS000053 MACHINE SCREW NA PHSW M4x10
!6 SS000059 NUT NA FURANCHI M4
GC-408/GC-408S
Dec, 1997
