NOTICE
Dec, 1997
GC-408/GC-408S
Some basic tips to keep in mind when you replace a component
1. Caution labels
When you replace the chassis, place caution labels to the
replacement chassis.

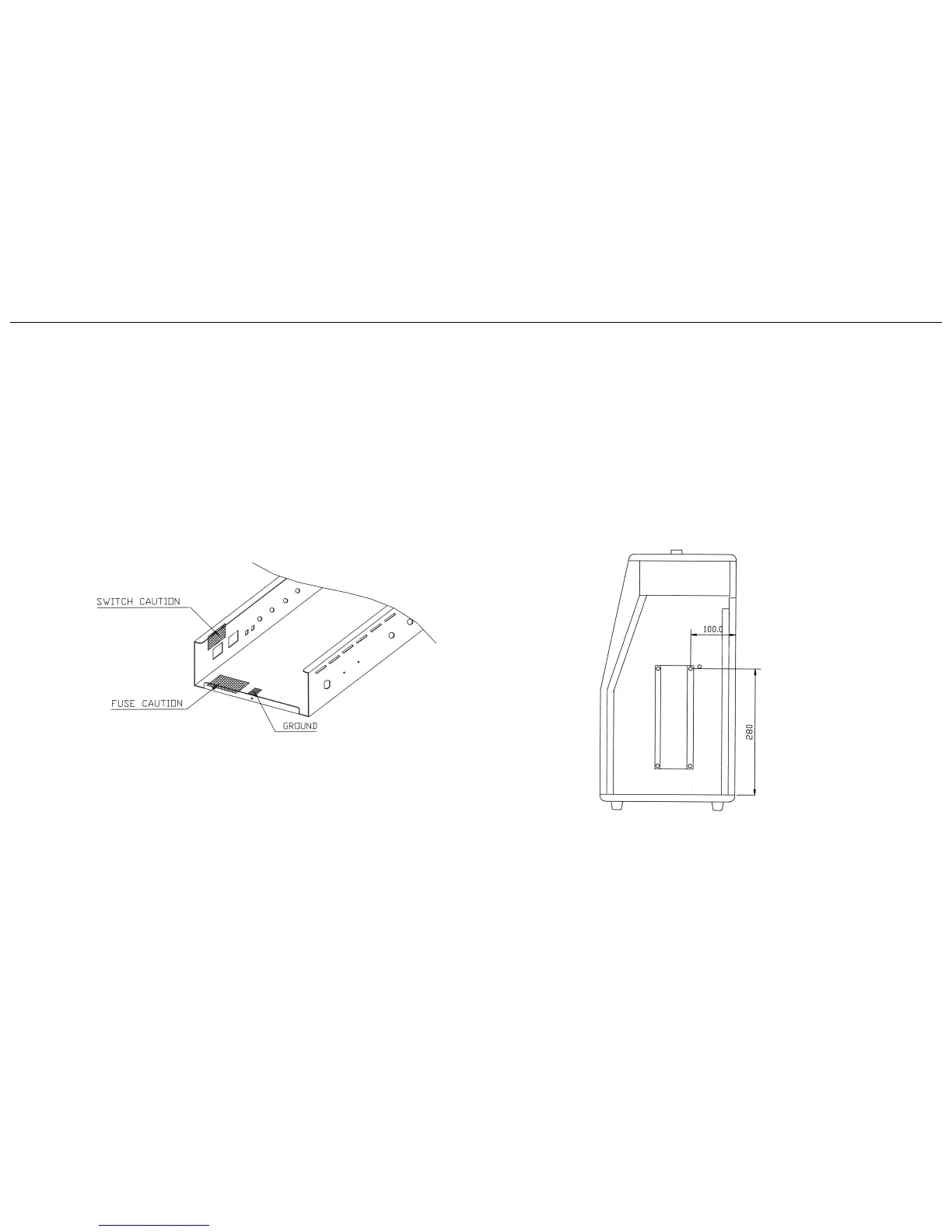

Please refere to the following diagrams.
2. Reverb unit
Reverb unit is placed to cabinet directly by wood screw.
When you place a reverb unit to the new replacement cabinet,
lock it in specified position.
Please refere to the following diagrams.
Switch Caution Sticker
(P/No.40017089)
(117V only)
Fuse Caution Sticker
(P/No.40124690)
(117V only)
Earth Seal
(P/No.40013812)
(117V/230VD/230VE/240V)
[SIDE VIEW
