Roland KC-150 - Main Specifications

11
Appendices

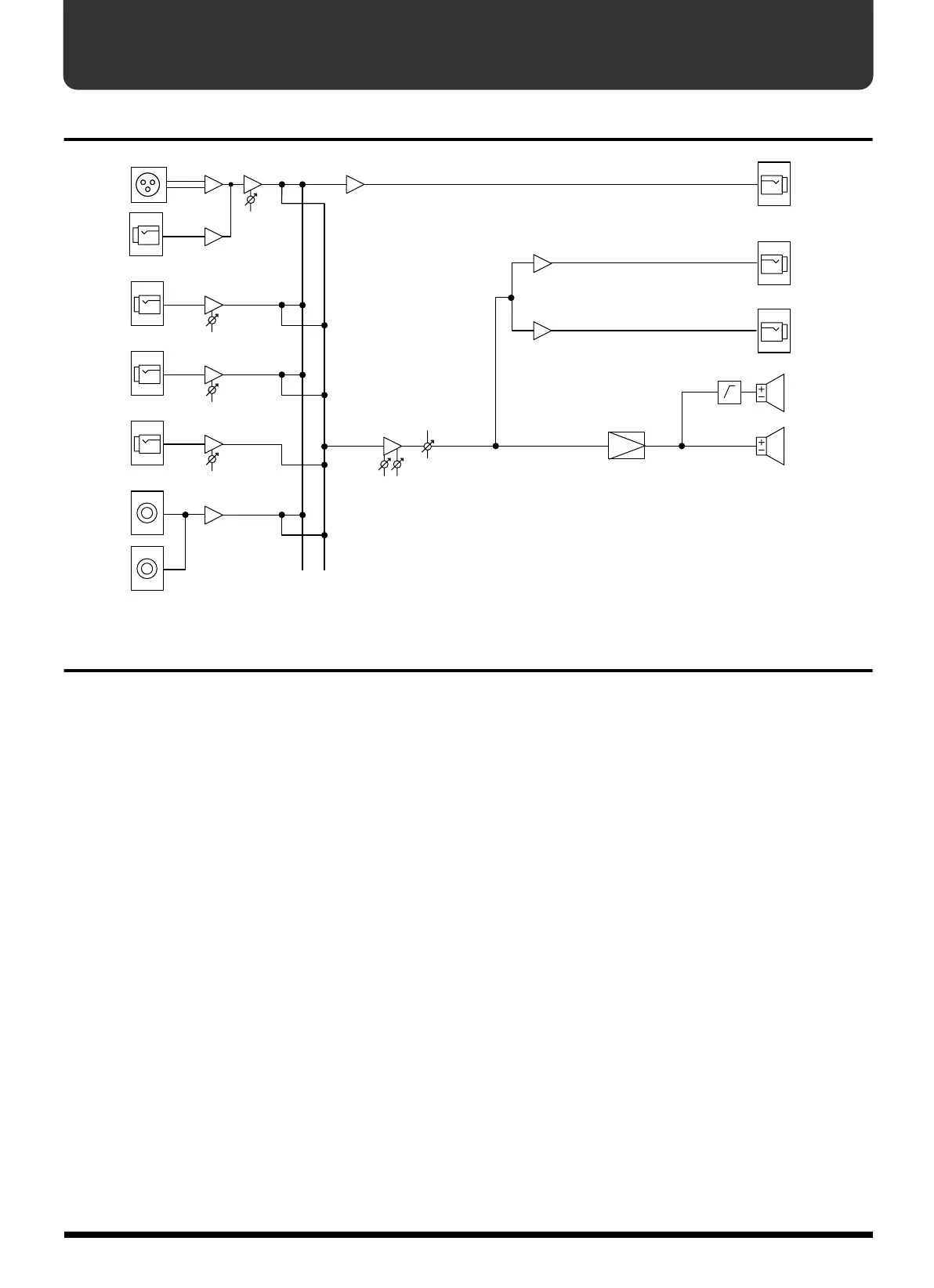

Block Diagram
Main Specifications
Rated Power Output
65 W
Nominal Input Level (1 kHz)
Input
Channel 1 (MIC/LINE): -50 – -20 dBu
Channel 2, 3 and 4 (LINE): -20 dBu
AUX IN: -10 dBu
Nominal Output Level
LINE OUT: +4 dBu
SUBWOOFER OUT: +4 dBu
* 0 dBu = 0.775 Vrms
Speakers
30 cm (12 inches) x 1
Tweeter x 1
Controls
Channel 1 (MIC/LINE) Volume Knob
Channel 2 (LINE) Volume Knob
Channel 3 (LINE) Volume Knob
Channel 4 (MONITOR) Volume Knob
Equalizer: LOW Knob, HIGH Knob
VOLUME Knob
POWER Switch
Indicator
POWER
Connectors
Channel 1 Input Jack (XLR type, 1/4” phone type)
Channel 2 Input Jack (1/4” phone type)
Channel 3 Input Jack (1/4” phone type)
Channel 4 Input Jack (1/4” phone type)
AUX IN Jack (RCA phono type)
LINE OUT Jack (1/4” phone type)
SUBWOOFER OUT Jack (1/4” phone type)
PHONES Jack (1/4” TRS phone type, mono signal output)
Power Supply
AC 117 V, AC 230 V, AC 240 V: 50/60 Hz
AC 220 V: 60 Hz
Power Consumption
55 W
Dimensions
480 (W) x 295 (D) x 435 (H) mm
18-15/16 (W) x 11-5/8 (D) x 17-1/8 (H) inches
Weight
14.0 kg
30 lbs 14 oz
Accessory
Owner’s Manual
* In the interest of product improvement, the specifications and/or
appearance of this unit are subject to change without prior notice.
TWEETER
WOOFER
LOW
HIGH
POWER AMP
HIGH PASS FILTER
MASTER VOL
CH1
MIC/LINE
CH 3
LINE
CH1
MIC/LINE
BALANCED
LINE OUT
SUBWOOFER
OUT
PHONES
CH 4
MONITOR
CH 1 VOL
HOT
COLD
CH 3 VOL
CH 2 VOL
CH 4 VOL
AUX IN
L
AUX IN
R
LINE OUT
SPEAKER
CH 2
LINE
