Roland NOVA-MOD SH-101 - Page 8

NORM LO HI
WAVEFORM
LFO/CLK
RATE
MODULATOR
2.30 cm

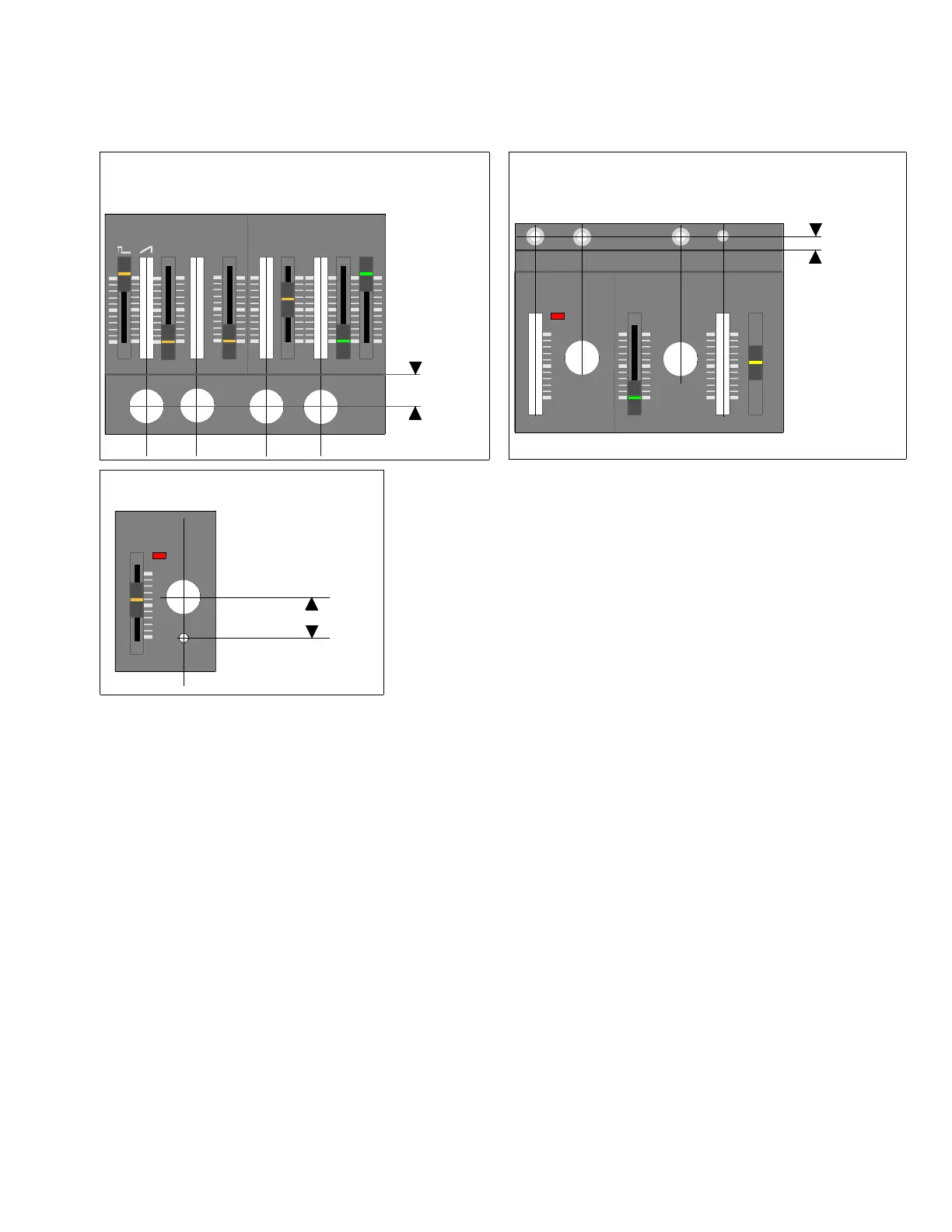

LFO Scalar Switch Location
WAVEFORM RANGE
LFO/CLK
RATE MOD PULSEWIDTH
MODULATOR VCO
LFO
MAN
ENV
EXT AUDIO
IN
VCF CV
IN
LFO CLK
IN
1.15 cm
Ext. LFO/ Ext VCF CV/ Ext Audio Jack/
Audio Switch Loctaions
FM Filter
Drill Locations
SUB OSC NOISE FREQ RES ENV MOD KEYBD
SOURCE MIXER
VCF
-1
-2
PW SOURCE EXT AUDIO FM SOURCE AMOUNT
-2
2.00cm
PW Source / Ext. audio / FM Source/
FM Amount Switch and Pot Locations
