The head is an expendable item that eventually will
wear out and need to be replaced. Replace the head
when the following occurs:
Slack portions remain in the head even when the head tension
is properly adjusted.
Replacement heads (optional): MH-8 Mesh Head
1.
Remove all tuning bolts from the PDX-8.
fig.Replace.e
Do not apply excessive force to the sensor and cushion
located under the head. Doing so can interfere with
accurate detection, and may damage it.
2.
Remove the hoop.
3.
Remove the old head.
4.
Place the new head on the shell.
5.
Place the hoop onto the head.
6.
Attach the tuning bolts to the hoop and shell.
7.
Next, adjust the tension of the head. Refer to
“Adjusting the Head Tension” (p. 4).
Do not firmly tighten a single tuning bolt by itself. Doing
so will make it impossible to tension the head evenly, and
will cause malfunctions.
PDX-8
Head Size: 8 inches
Triggers: 2 (Head, Rim)
Dimensions: 266 (W) x 326 (D) x 62 (H) mm
10-1/2 (W) x 12-7/8 (D) x 2-1/2 (H)
inches
Weight: 1.3 kg
2 lbs 14 oz
Accessories: Owner’s Manual, Connection Cable,
Tuning Key
Options: Mesh Head (MH-8),
Pad Mount (MDH-10U),
Drum Stands (MDS-3C, MDS-6C,
MDS-12, MDS-20)
962a
* In the interest of product improvement, the specifications and/
or appearance of this unit are subject to change without prior
notice.
* The Rim rubber is one component that eventually wears out
(the more so if numerous rim shots are performed), and will
require replacement. Rim shots may not be performed correctly
when the rim rubber is worn out. If this occurs, replace the rim
rubber. Consult Roland Service for more on replacing the rim
rubber.

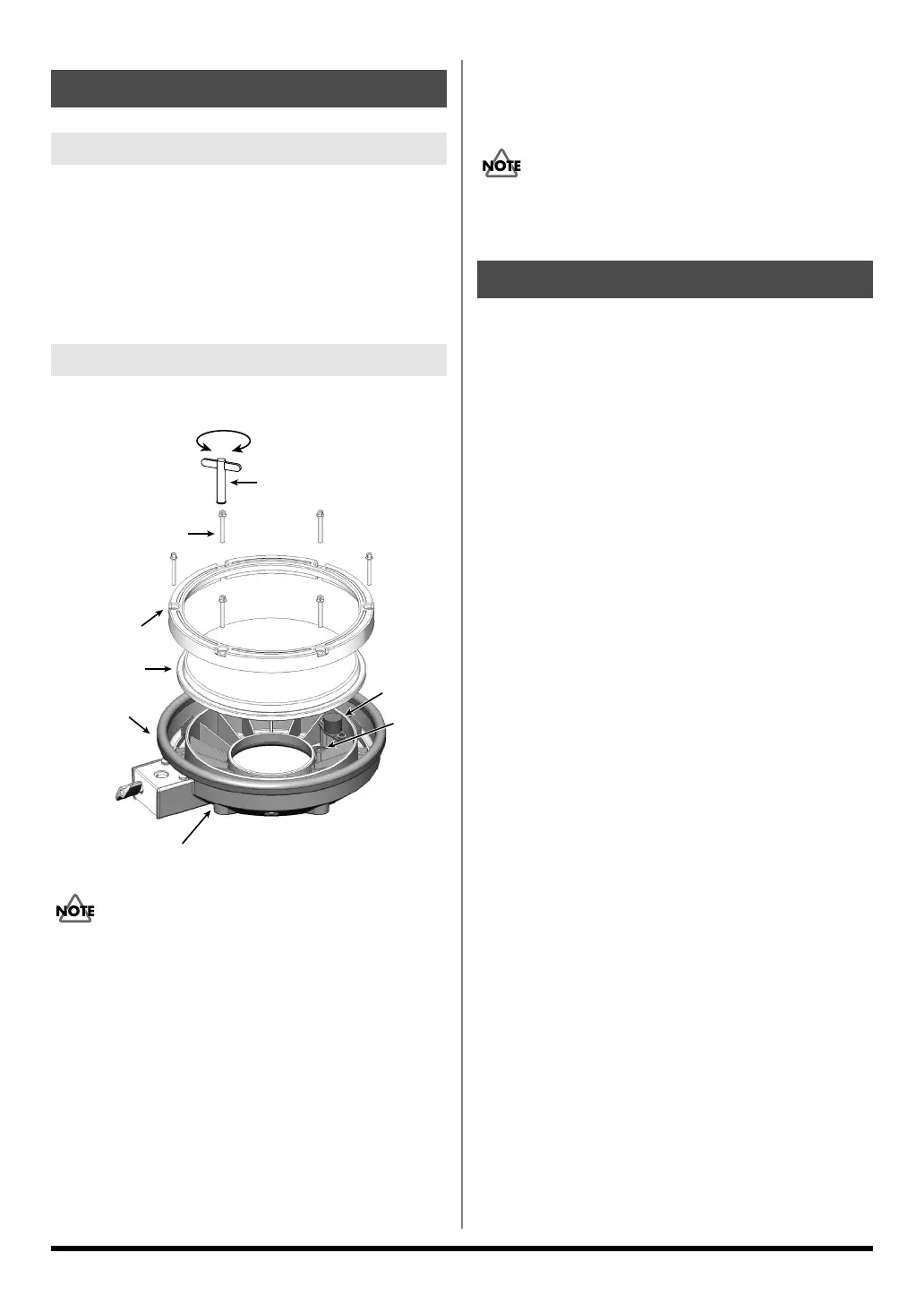

Head Replacement
When the Head Should Be Replaced
Replacing the Head
Tuning Key
Hoop
Head
Hoop’s Rubber
Portion
Head
Sensor
Rim
Sensor
Loosen
Tighten
Shell
Tuning Bolt
Specifications
