Controls
and
Components
[Return to Manual index] [Next page]
s e 1
t3
'1·4 ·
11:;
'I·G 1
'1
1'8 19- :!.0 21 22:
2:4
.
[Return to Manual index] [Next page]

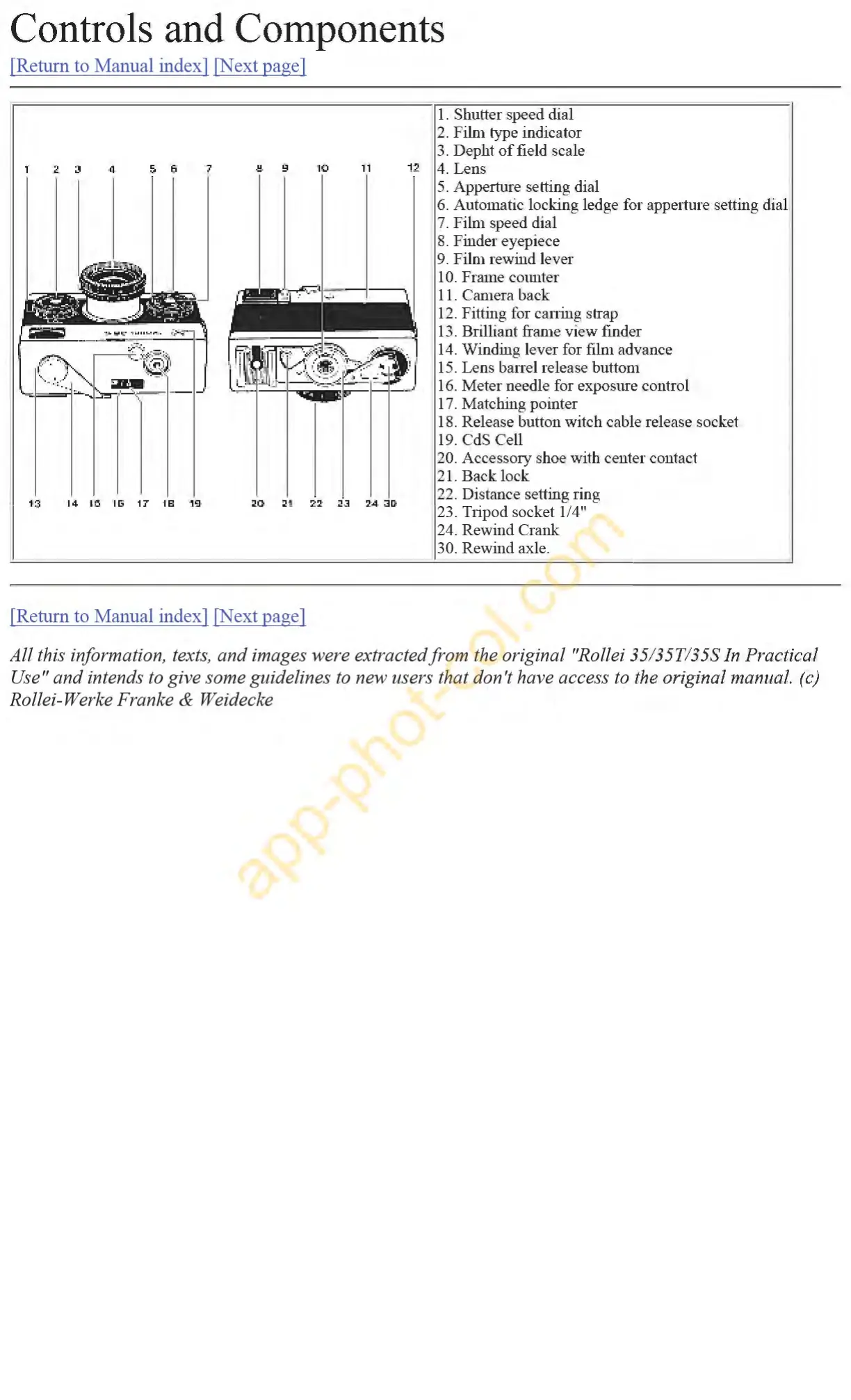

1.
Shutter speed dial
2.
Film type indicator
3.
Depht
of
field scale
1:2
4.
Lens
5.
Apperture setting dial
6. Automatic locking ledge for apperture setting dial
7. Film speed dial
8.
Finder eyepiece
9. Film rewind lever
10. Frame counter
11. Camera back
12. Fitting for carring strap
13. Brilliant frame view fin der
14. Winding lever for film advance
15. Lens barrel release buttom
16. Meter needle for exposure control
17. Matching pointer
18. Release button witch cable release socket
19. CdS Cell
20. Accessmy shoe with center contact
21. Back lock
22. Distance setting ring
23. Tripod socket
114"
24. Rewind Crank
30. Rewind axle.
All
this information, texts,
and
images were extractedfrom the original "Rollei 35/
35T
/
35S
In Practical
Use"
and
intends to give sorne guidelines to new users that don't have access to the original manual.
