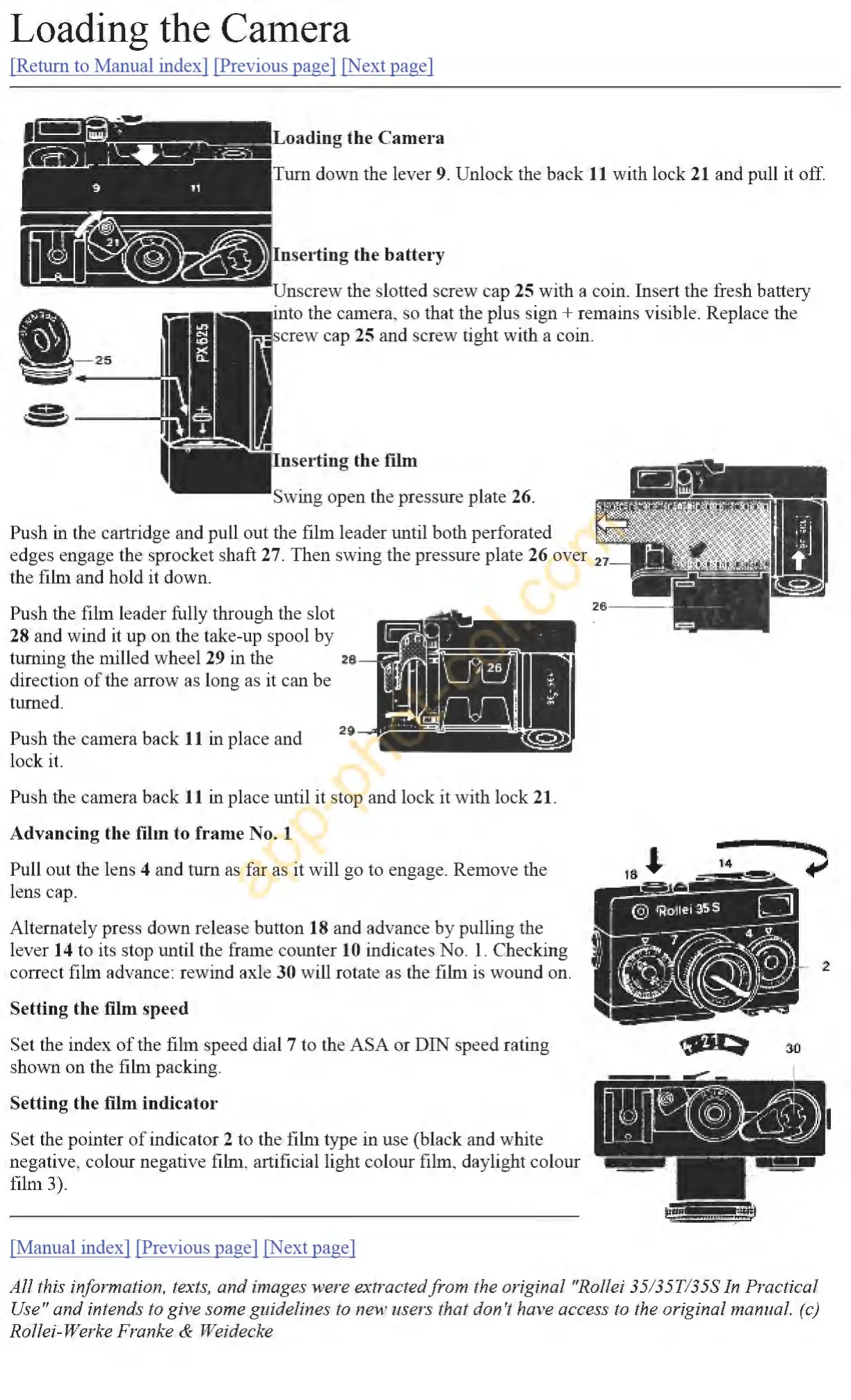

Loading the Camera
[Return to Manual index 1 [Previous page 1
[N
ext page 1
down the lever 9. Unlock the back 11 with lock 21 and pull it off.
nserting
the
battery
·~
·
25
nscrew the slotted screw cap 25 with a coin. Inse
rt
the fresh battery
to the camera, so that the plus sign
+ remains visible. Replace the
cap 25 and screw tight with a coin.
nserting
the
film
Swing open the pressure plate 26.
Push
in the cartridge and pull out the film leader until both perforated
edges engage the sprocket shaft 27. Then swing the pressure plate 26 over
2
the film and hold it down.
Push the film leader fully through the slot
28 and wind it up
on
the take-up spool
by
tuming the milled wheel 29 in the
28
direction
of
the arrow as long as it can
be
tumed.
Push the camera back 11
in place and
lock it.
Push the camera back 11
in place until it stop and lock it with lock 21.
Advancing
the
film to
frame
No. 1
Pull out the lens 4 and
tum
as far as it will go to engage. Remove the
lens cap.
Alternately press down release button 18 and advance
by
pulling the
lever 14
toit
s stop until the frame counter 10 indicates No.
1.
Checking
correct film advance: rewind axle 30 will rotate as the film is wound on.
Setting
the
film speed
Set the index
of
the film speed dial 7 to the ASA or DIN speed rating
shown
on
the film packing.
Setting
the
film indicator
Set the pointer
of
indicator 2 to the film type in use (black and white
negative, colour negative film, artificiallight colour film, daylight colour
film 3).
[Manual index
1 [Previous page 1
[N
ext page 1
o-:;'
• UlJ
3(11
All
this information, texts,
and
images were extractedfrom the original "Rollei 35/
35T
/
35S
In Practical
Use"
and
intends to give sorne guidelines to new users that don't have access to the original manual.
(c
)
Rollei-Werke Franke
& Weidecke
