CHECKLIST & COMPONENTS
2
DOOR OVERVIEW
Please check all components for
any visible damage, if there is
any please contact your supplier.
1
Head Plate
2
Guides
3
Full Box
4
Tube End
5
Barrel
6
Security Straps
7
Curtain
8
Motor
9
Motor Plate
10
Guide Rail
11
Plastics Caps
12
End Lock
13
Base Rail
14
Remote Control Fob
15
Switches (if any)
EQUIPMENT REQUIRED
• 2 x Step ladders or hop ups
• Spirit level
• Tape measure
• Power drill
• 10mm A/F Spanner
• 2 x Pozi-screwdrivers
• 7mm Metal drill bit
• 10mm Metal drill bit
• 7mm Masonry drill bit
• Hacksaw
• Small electrical screwdriver
• 4mm A/F Allen key
ROLLERDOR COMPONENT CHECKLIST
• Door Curtain.
• Barrel Assembly (Barrel, Tube End, Security Springs, Security
Collars).
• Head Plate with Motor Attached.
• Head Plate.
• One Pair of Guide Runners.
• Control System with Two Remote Fobs.
• Fixings Kit (Qty 10: 5 x 50 screws 7mm brown rawl plugs, plastic caps
and Qty 1 plastic adjustment wand). Please note: fixings supplied
work on the majority of materials but if you know that you require
specialised fixing please replace with these.
10 11 12 13 7 15 14

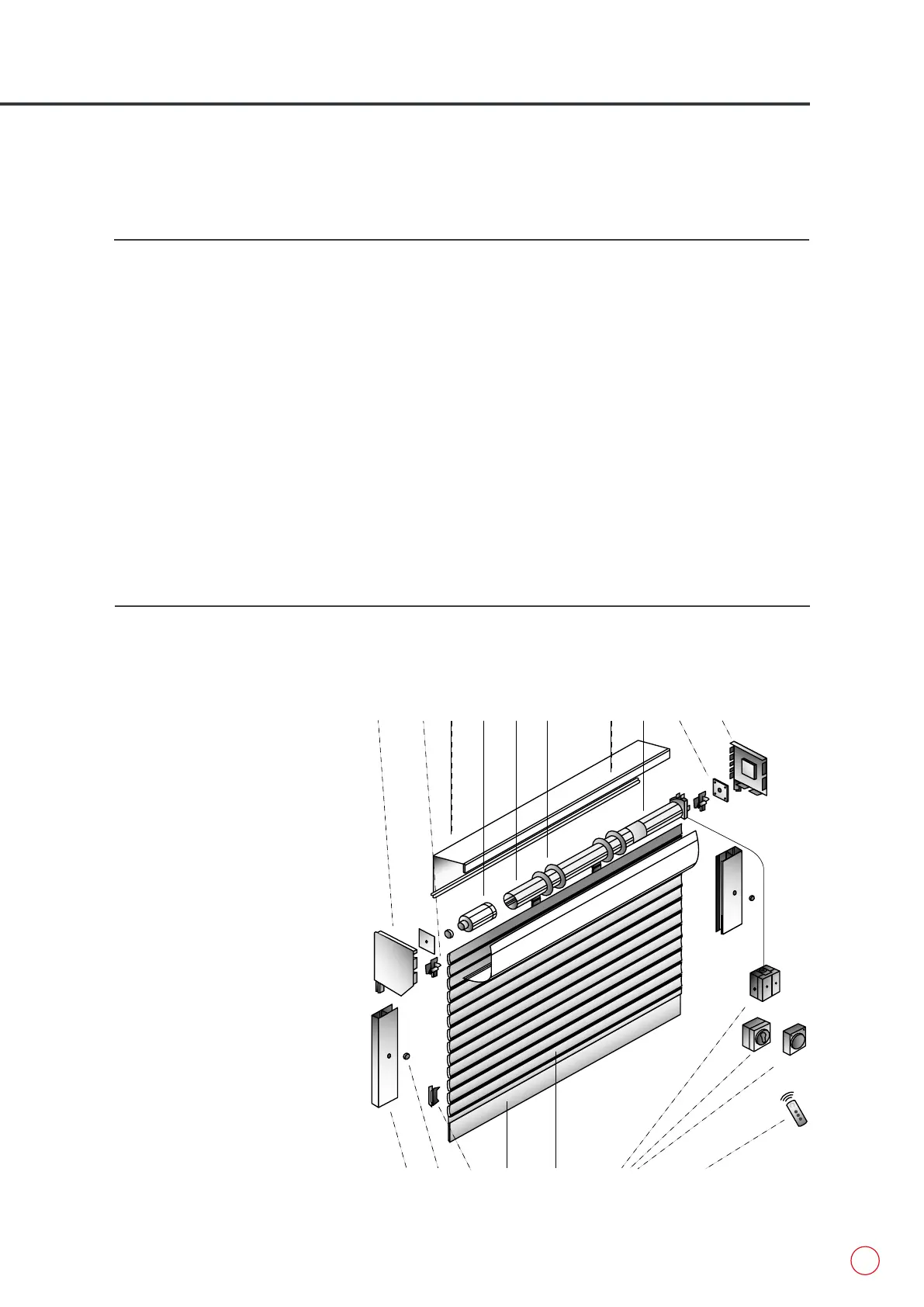

2 1 3 4 5 6 7 8 9 1
Diagram 1
Rollerdor RD55 Econ Roller Garage Door
