Rollerdor RD55 Econ Roller Garage Door
LINTEL
ROOF OR
JOISTS
GUIDE
RUNNER
GUIDE
RUNNER
GUIDE
RUNNER
TOP
ROLL
TOP
ROLL
TOP
ROLL
LINTEL
LINTEL
ROOF OR
JOISTS
Behind lintel fixing’ 3Limited opening fixing 2Below lintel fixing 1
205
MM
< >
205
MM
< >
205
MM
< >
ROOF OR
JOISTS
1
2
3

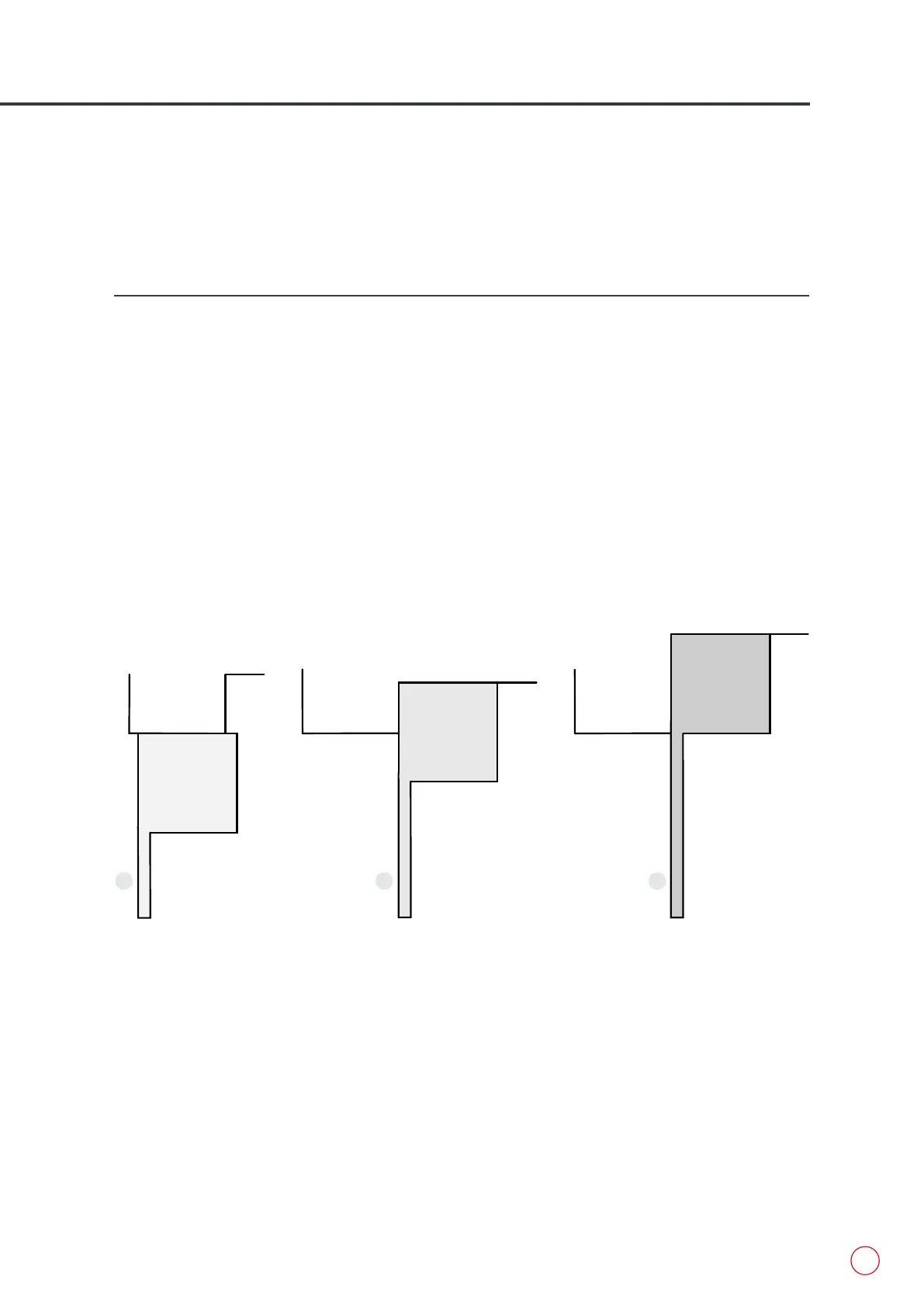

FIXING OPTIONS
Below Lintel Fixing:
Cut guide runners to measured height less 210mm.
Limited Opening Fixing:
Measure from floor to highest point, deduct 210mm and cut guide runners to size.
Behind Lintel Fixing:
Cut guide runners to measured height.
Diagram 2
